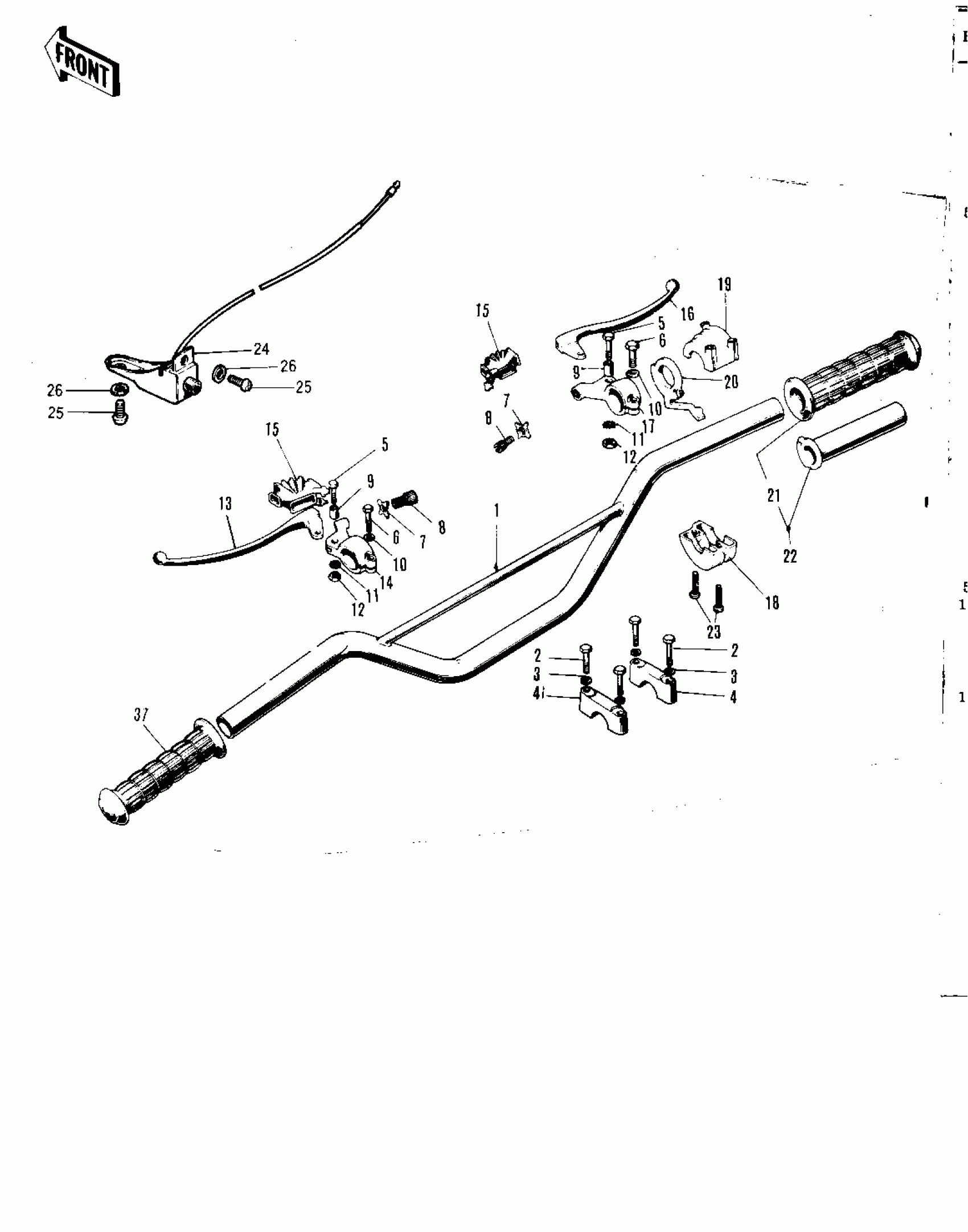

Kawasaki F8-A HANDLEBAR ('71 F81M) Diagram

#

Description
Price

1

HANDLEBAR

46004-017

Unavailable

2

BOLT HEX HEAD 8X35

110N0835

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

HOLDER-HANDLE,UPP

46012-008

$37.74

5~15

LEVER ASSY-CLUTCH

46076-014

Unavailable

5

BOLT HEX HEAD 5X20

92007-020

Unavailable

6

BOLT-UPSET

112N0620

Unavailable

7

NUT LOCK ADJUST SCREW

46056-001

Unavailable

8

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

9

COLLAR LEVER

46059-011

Unavailable

10

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

11

WASHER LOCK 5MM

464H0500

$1.42

12

NUT-HEX,5MM

312B0500

Unavailable

13

LEVER-GRIP,CLUTCH

46092-015

$20.99

14

HOLDER,CLUTCH LEVER

46094-010

Unavailable

15

DUST COVER

46071-001

Unavailable

5~12

LEVER ASSY-FRNT BRAKE

46021-010

Unavailable

16

LEVER-GRIP,FRONT BRAKE

46058-004

$24.84

17

HOLDER-FR BRAKE LEVER

46060-006

Unavailable

18~23

CASE ASSY-R.H

46018-019

Unavailable

18

CASE-R.H LOWER

46023-005

Unavailable

19

CASE-R.H.UPPER

46041-005

Unavailable

20

LEVER-STARTER

46096-006

$36.17

21

RUBBER-R.H GRIP

46061-012

Unavailable

22

GRIP ASSY-THROTTLE

46019-013

Unavailable

23

SCREW PAN HEAD 5X22

220B0522

Unavailable

24

SWITCH ASSY-ENG STOP

46027-006

Unavailable

25

SCREW-PAN-CROS,3X6

220B0306

Unavailable

26

WASHER SPRING 3MM

461F0300

Unavailable
