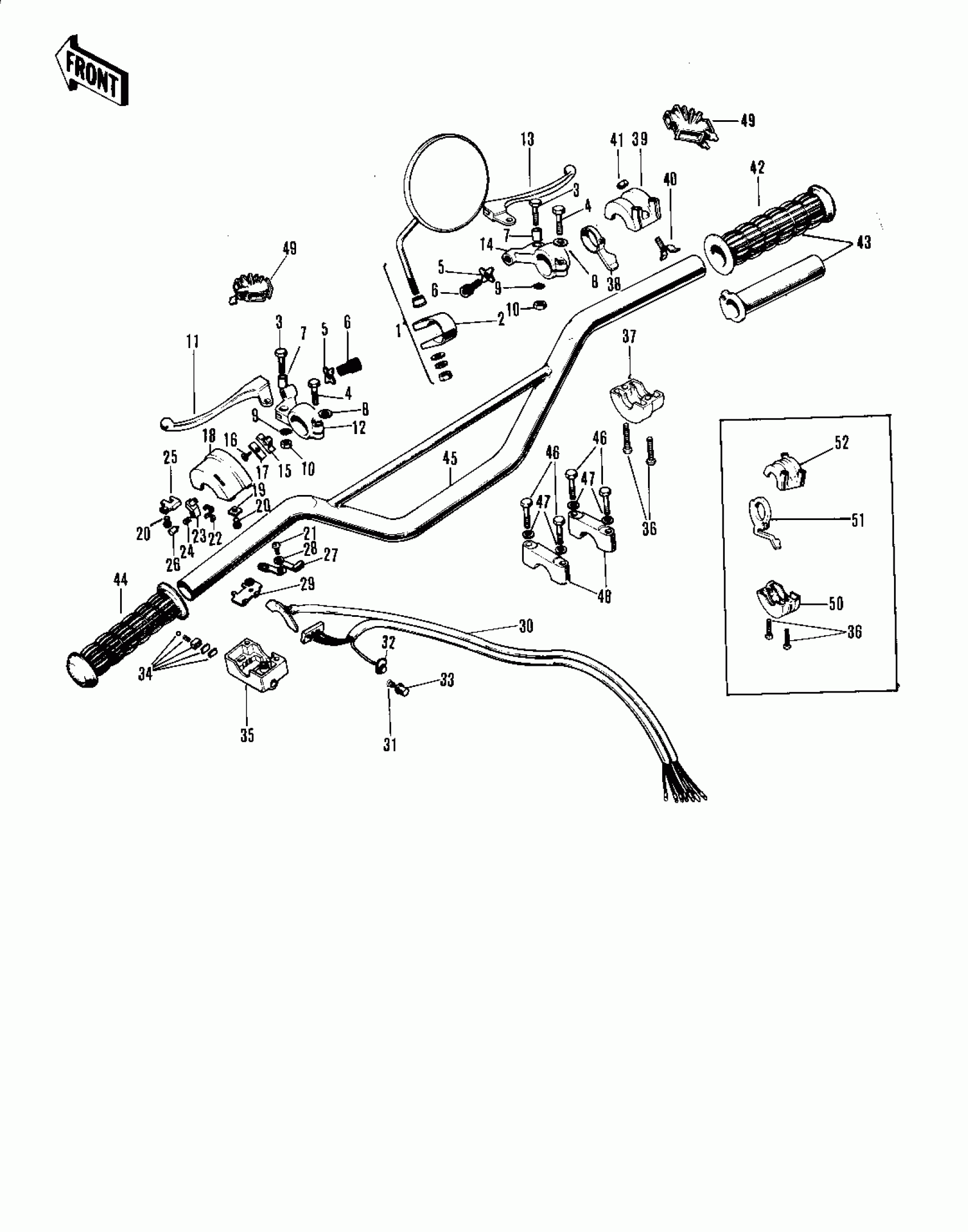

Kawasaki F8-A HANDLEBAR ('71-'72 F8/F8-A) Diagram

#

Description
Price

1

REAR VIEW MIRROR

56001-005

Unavailable

2

BRACKET

56006-001

Unavailable

3~12,4

LEVER ASSY-CLUTCH

46076-014

Unavailable

3

BOLT HEX HEAD 5X20

92007-020

Unavailable

4

BOLT-UPSET

112N0620

Unavailable

5

NUT LOCK ADJUST SCREW

46056-001

Unavailable

6

SCREW,CABLE ADJUST,8MM

46055-003

$12.92

7

COLLAR LEVER

46059-011

Unavailable

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

9

WASHER LOCK 5MM

464H0500

Unavailable

10

NUT-HEX,5MM

312B0500

Unavailable

11

LEVER-GRIP,CLUTCH

46092-015

$19.69

12

HOLDER,CLUTCH LEVER

46094-010

Unavailable

3~10

LEVER ASSY-FRNT BRAKE

46021-010

Unavailable

13

LEVER-GRIP,FRONT BRAKE

46058-004

$22.90

14

HOLDER-FR BRAKE LEVER

46060-006

Unavailable

15~36

CASE ASSY-L.H

46091-004

Unavailable

15

KNOB-L.H SWITCH

46044-011

Unavailable

16

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

17

SPRING L.H SW KNOB

46031-003

Unavailable

18

CASE L.H SWITCH UPPER

46086-013

$11.97

19

HOLDER L.H SW UPPER A

46085-013

$1.51

20

SCREW PAN HEAD 3X5

220B0305A

$0.63

21

SCREW-PAN-CROS,3X8

220B0308

$0.63

22

PLATE L.H SW CONTACT

46080-002

$1.51

23

SWITCH L.H

46089-003

Unavailable

24

SPRING L.H SWITCH

46031-004

$1.56

25

HOLDER L.H SW LOWER B

46085-014

$1.44

26

CONTACT L.H SWITCH

46079-002

$1.51

27

KNOB-SWITCH

46044-006

$4.32

28

WASHER

92095-010

Unavailable

29

HOLDER L.H SW LOWER

46085-015

$1.17

30

WIRING HARNESS-L.H SW

46082-017

$22.64

31

SWITCH,PUSH BUTTON

27010-1009

$7.31

32

SWITCH,PUSH BUTTON

27010-1009

$7.31

33

SWITCH,PUSH BUTTON

27010-1009

$7.31

34

SLIDE BLOCK AY-L.H SW

46089-004

$6.90

35

CASE L.H SWITCH LOWER

46077-015

$12.64

36~43

CASE ASSY-R.H

46018-019

Unavailable

36

SCREW PAN HEAD 5X22

220B0522

Unavailable

37

CASE-R.H LOWER

46023-005

Unavailable

38

LEVER-STARTER

46096-006

$36.78

39

UNAVAILABLE IN PRICE BOOK

46041-003

Unavailable

40

SPRING THROTTLE GRIP

46024-002

Unavailable

41

NUT-HEX,5MM

312B0500

Unavailable

42

RUBBER-R.H GRIP

46061-012

Unavailable

43

GRIP ASSY-THROTTLE

46019-013

Unavailable

44

RUBBER-L.H GRIP

46075-017

Unavailable

45

HANDLEBAR

46004-016

Unavailable

46

BOLT 8X38

92001-1405

$13.05

47

WASHER SPRING 8MM

461F0800

Unavailable

48

HOLDER-HANDLE,UPP

46012-008

$34.49

49

DUST COVER

46071-001

Unavailable

36,42,

CASE ASSY-R.H

46018-019

Unavailable

50

CASE-R.H LOWER

46023-005

Unavailable

51

LEVER-STARTER

46096-006

$36.78

52

CASE-R.H.UPPER

46041-005

Unavailable
