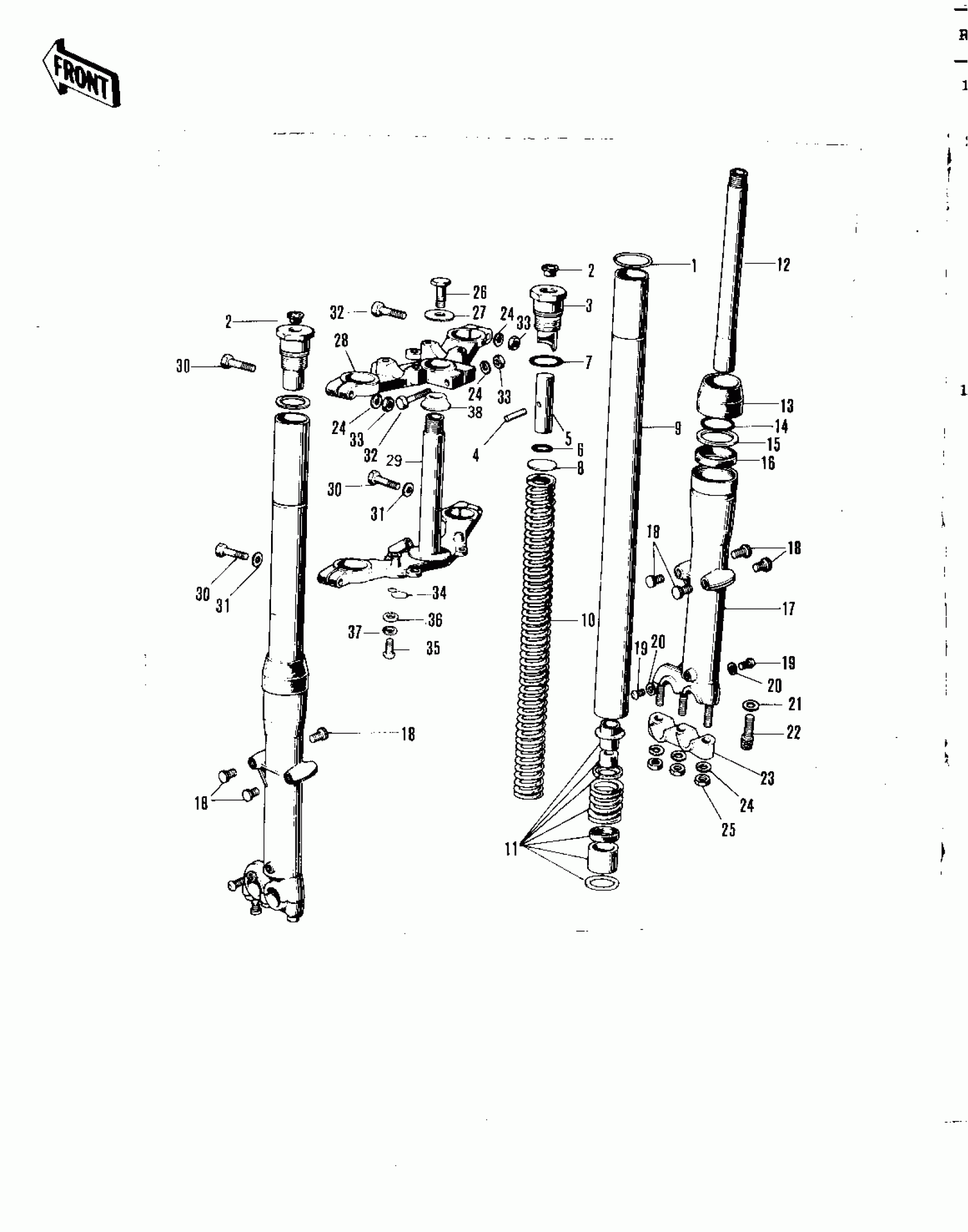

Kawasaki F8-A FRONT FORK ('71 F81M) Diagram

#

Description
Price

1~33

FRONT FORK ASSY

44001-065

$504.88

1

CIRCLIP

44044-009

Unavailable

2~6

BOLT-FORK TOP

44041-030

$58.86

2

CAP,RUBBER

14039-001

$3.28

7

'O' RING FORK TOP

44046-015

Unavailable

8

WASHER-FORK SPRG SEA

44029-015

$0.73

9

TUBE-FORK INNER

44013-022

Unavailable

10

SPRING-FORK

44026-028

$28.59

11,12

CYLINDER-FORK

44022-003

Unavailable

13

DUST SHIELD

44010-014

Unavailable

14

CIRCLIP OIL SEAL FIT

44044-005

Unavailable

15

WASHER OIL SEAL FIT

44043-023

Unavailable

16

OIL SEAL,FORK

44009-020

$61.69

17

TUBE OUTER

44005-030

$107.63

18

CAP

44062-002

Unavailable

19

SCREW PAN HEAD 4X8

220B0408

Unavailable

20

GASKET,FORK DRAIN PLUG

44045-002

$3.95

21

GASKET FORK CYL BOLT

44045-030

Unavailable

22

BOLT FORK CYLINDER

44041-027

$4.83

23

HOLDER-FRONT AXLE

44063-001

$21.54

24

WASHER SPRING 8MM

461F0800

Unavailable

25

NUT,8MM

311B0800

Unavailable

26

BOLT STRNG STEM HEAD

44041-007

Unavailable

27

WASHER STRNG STEM HD

44043-016

$10.56

28

HEAD-STEERING STEM

44039-032

Unavailable

29

STEM-STEERING

44037-032

$152.66

30

BOLT HEX HEAD 12X40

113B1240

Unavailable

31

WASHER-SPRING,12MM

461F1200

Unavailable

32

BOLT

92001-1578

$6.54

33

NUT,8MM

311B0800

Unavailable

34

CLAMP,CABLE

92037-046

$4.41

35

SCREW-PAN-CROS,6X14

220B0614

$1.14

36

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

37

WASHER SPRING 6MM

461F0600

Unavailable

38

RACE,STEERING STEM BEARING

92047-010

$10.12
