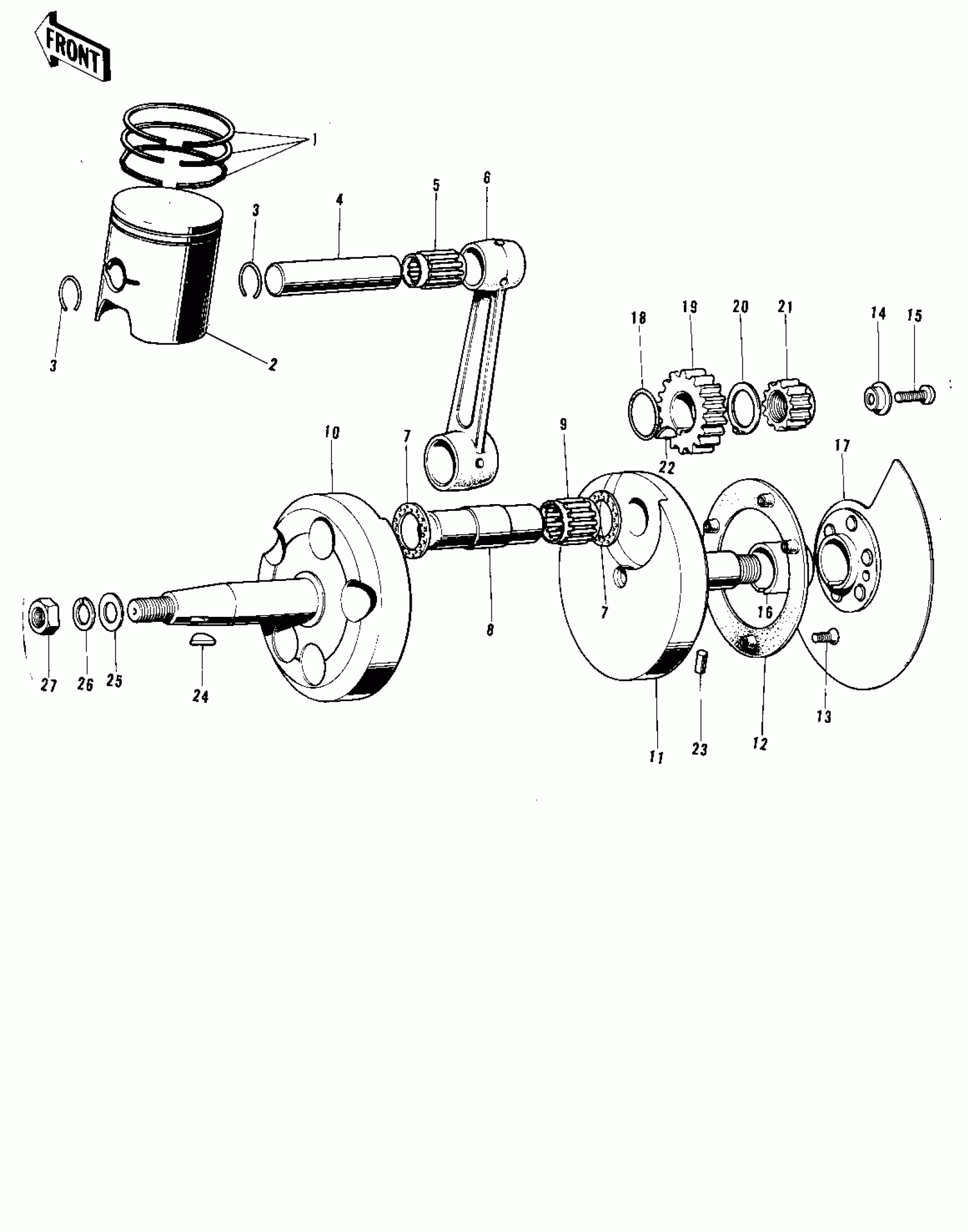

Kawasaki F8-A CRANKSHAFT/PISTON/ROTARY VALVE (F8-A) Diagram

#

Description
Price

1

RING SET,STD

13008-026

Unavailable

2

PISTON,STD

13001-041

Unavailable

3

CIRCLIP-PISTON PIN

92036-015

$3.77

4

PIN-PISTON

13002-017

$30.56

5

BEARING-SMALL END

13033-1010

$20.40

6-9

CONNECTING ROD SET

13044-017

Unavailable

6-13

CRANK&CONROD ASSY

13036-036

Unavailable

7

WASHER-CONROD SIDE

92026-069

Unavailable

8

CRANK PIN

13035-026

Unavailable

9

NEEDLE BRG-BIG END

13034-032

Unavailable

10

CRANKSHAFT,L.H

13037-045

Unavailable

11

CRANKSHAFT,R.H

13038-045

Unavailable

12

HOLDER-CRANKSHAFT OI

13045-006

Unavailable

13

SCREW OVL CNTSNK 5X10

92012-002

Unavailable

14

SPACER-R.H CRANKSHAF

92026-071

Unavailable

15

SCREW-PAN HEAD,6X20

92011-025

Unavailable

16

CALLAR-CRANKSHAFT

92027-097

$17.66

17

VALVE-ROTARY DISC

12001-020

Unavailable

18

"0" RING,22MM

670B3022

Unavailable

19

PINION,PRIMARY 24T

13121-028

Unavailable

20

WASHER-LOCK,18MM

92024-029

Unavailable

21

PINION-OIL PUMP

16084-011

$82.48

22

WOODRUFF KEY

510A5100

$1.87

23

ROLLER,4X12

610A0412

$4.85

24

KEY,WOODRUFF

92038-001

$3.78

25

WASHER-PLAIN,14MM

92022-172

Unavailable

26

WASHER SPRING 14MM

461F1400

Unavailable

27

NUT 14MM

92015-043

Unavailable
