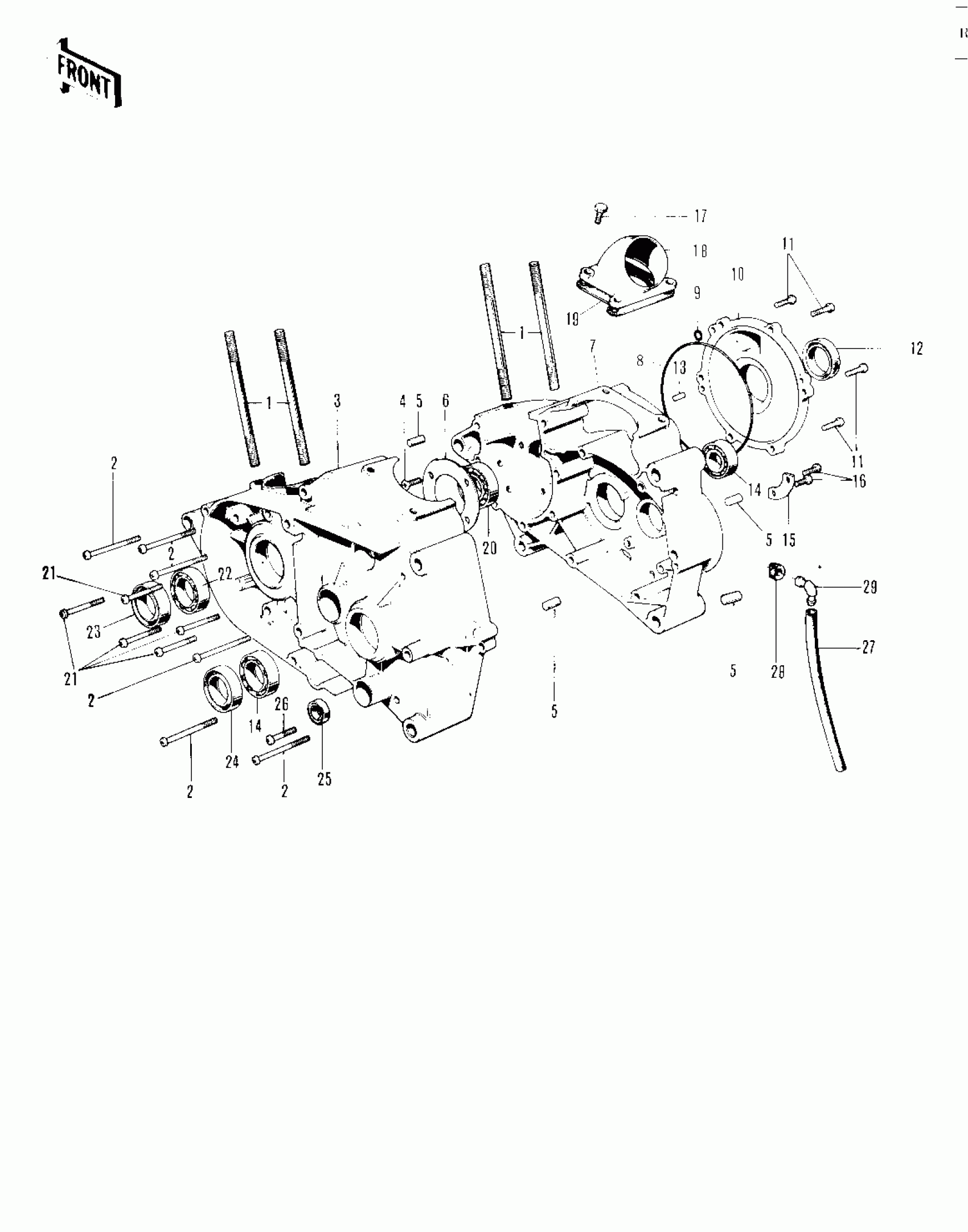

Kawasaki F8-A CRANKCASE ('71 F81M) Diagram

#

Description
Price

1

STUD 10X75

172G1075

Unavailable

2

SCREW-PAN-CROS,6X75

220B0675

Unavailable

3

CRANKCASE SET

14001-065

Unavailable

4

SCREW-CSK-CROS,6X16

221B0616

$0.63

5

PIN,DOWEL,10X14

92043-1037

$0.76

6

HOLDER-CRANK BEARING

14014-019

Unavailable

7

CRANKCASE,R.H

14003-056

Unavailable

8

"0" RING,134.5MM

92055-039

Unavailable

9

O RING,5MM

670B1505

$2.49

1

COVER-ROTARY DISC VLV

14019-047

Unavailable

11

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

12

OIL SEAL TB35488

653B354808

Unavailable

13

ROLLER,5X12

610A0512

$4.53

14

BEARING-BALL,#6205C3

601B6205

$15.38

15

HOLDER-MISSION BERNG

14014-020

Unavailable

16

SCREW-PAN-CROS,6X14

220B0614

$1.32

17

BOLT-UPSET,6X20

112G0620

Unavailable

18

INLET PIPE

11015-021

Unavailable

19

GASKET-INLET PIPE

11017-005

Unavailable

20

BEARING-BALL

92045-016

Unavailable

21

SCREW PAN HEAD 6X50

220B0650

$1.19

22

BEARING-BALL,#6305C3

601B6305

$23.43

23

SEAL-OIL

92049-1250

$15.40

24

SEAL-OIL,TB3040

92050-033

$20.16

25

SEAL-OIL,SB12205

92049-004

$7.95

26

SCREW PAN HEAD 6X30

220B0630

Unavailable

27

BREATHER ASSY

14069-1001

$22.77

28

GROMMET,BREATHER

92071-042

$3.39

29

PIPE-BREATHER

92059-061

Unavailable
