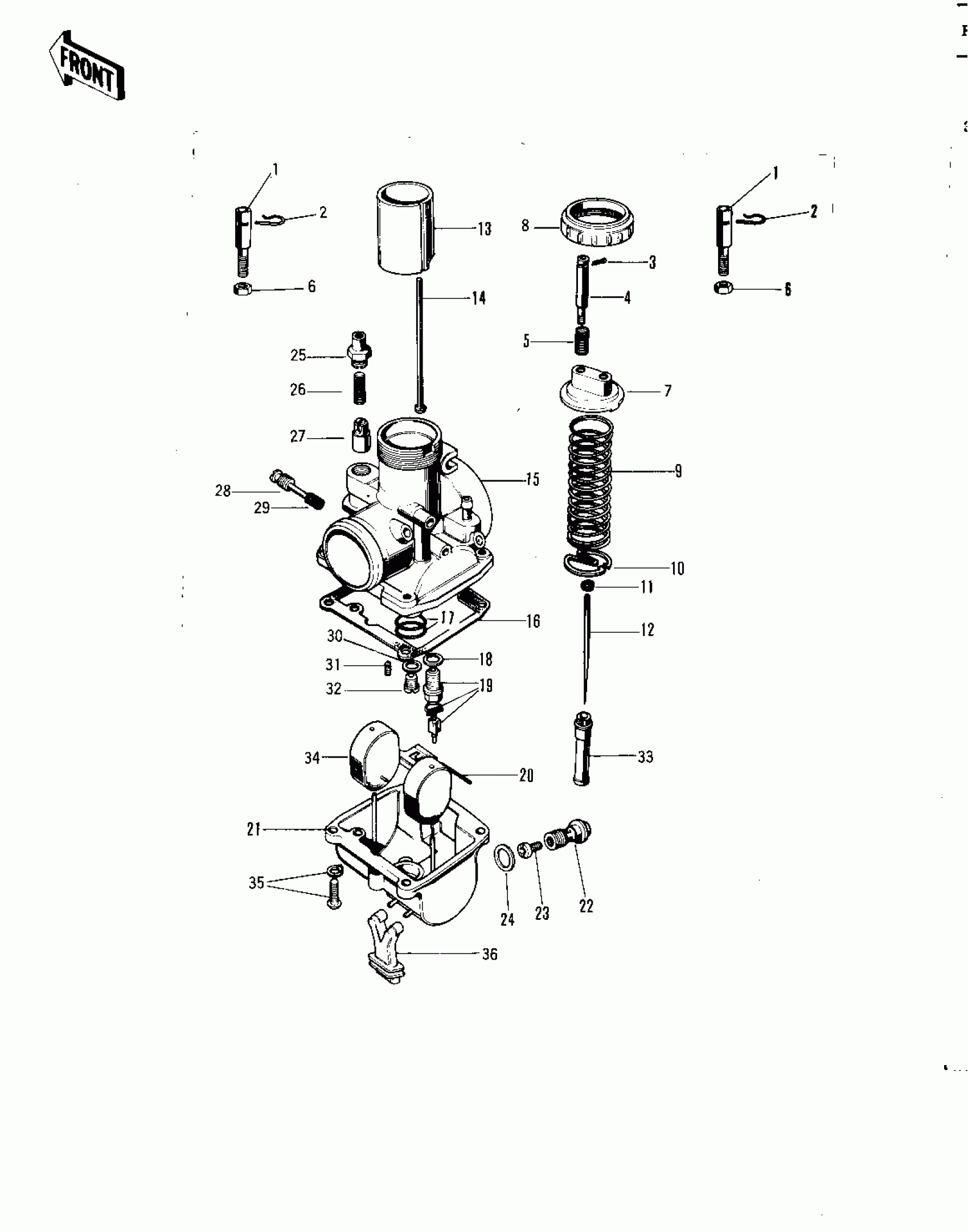

Kawasaki F8-A CARBURETOR ('71 F81M) Diagram

#

Description
Price

1

ADJUSTER-CABLE

92120-001

$4.92

2

RING-SNAP

92036-018

$2.97

3~34

CARBURETOR ASSY

16001-127

Unavailable

3

PIN COTTER 1.6X10

550D1610

Unavailable

4

SCREW-THROTTLE STOP

16021-011

$5.42

5

SPRING,THROTTLE STOP SCREW

16022-005

$8.66

6

NUT,CABLE ADJUST LOCK

16003-004

$7.53

7

TOP-MIXING CHAMBER

16005-022

$18.76

8

CAP-MIXING CHAMBER

16004-015

$9.86

9

SPRING-THROTTLE VALV

16006-016

Unavailable

10

SPRING SEAT-THRTL VLV

16007-014

$3.81

11

CLAMP,E-TYPE

16008-010

$7.02

12

JET NEEDLE 5EH7

16009-044

Unavailable

13

VALVE-THROTTLE

16025-033

$45.20

14

ROD-THROTTLE VLV STOP

16024-011

$3.37

16

GASKET-FLOAT CHAMBER

16019-015

Unavailable

17

'V' RING

92055-042

Unavailable

18

WASHER FLOAT VLV SEAT

16029-004

$2.97

19

FLOAT VALVE ASSY

16030-013

Unavailable

20

FLOAT PIN

16032-005

$2.36

22

BOLT-BANJO

92001-097

Unavailable

23

MAIN JET NO 130R

92063-057

$13.73

24

GASKET-BANJO BOLT

16034-005

Unavailable

25

CAP STARTER PLUNGER

16012-004

Unavailable

26

SPRING-PLUNGER

16013-003

$4.18

27

PLUNGER,STARTER

16016-002

$33.31

28

SCREW

16014-006

$16.07

29

SPRING,PILOT AIR SCREW

16022-007

$7.97

30

WASHER,MAIN JET

16034-001

$3.43

31

JET-PILOT NO 40

92064-024

$21.93

32

MAIN JET NO 2.4R

92063-102

Unavailable

33

NEEDLE JET

16017-053

$13.90

34

FLOAT

16031-020

Unavailable

35

SCREW-PAN-WS-CROS

223B0414

$1.16

36

GROMMET-OVERFLOW PIPE

16136-004

Unavailable
