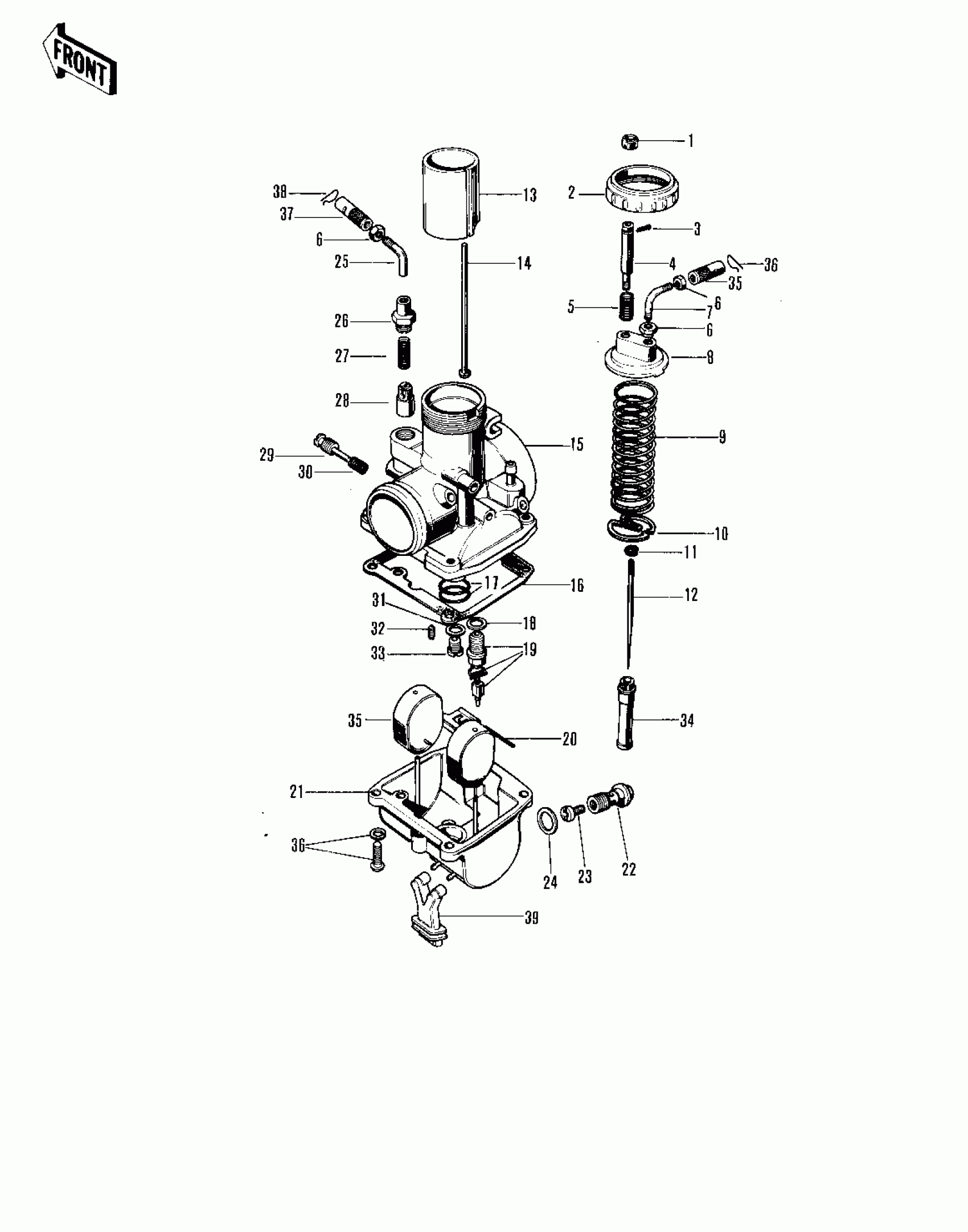

Kawasaki F8-A CARBURETOR ('71-'72 F8/F8-A) Diagram

#

Description
Price

1~36

CARBURETOR ASSY

16001-121

$245.76

1

CAP THROTTLE ADJUSTER

16037-002

Unavailable

2

CAP-MIXING CHAMBER

16004-015

$9.86

3

PIN COTTER 1.2X10

550D1210

$1.66

4

SCREW-THROTTLE STOP

16021-009

$5.39

5

SPRING,THROTTLE STOP SCREW

16022-005

$8.66

6

NUT,CABLE ADJUST LOCK

16003-004

$7.53

7

CABLE GUIDE

16077-001

$8.78

8

TOP-MIXING CHAMBER

16005-022

$18.76

9

SPRING-THROTTLE VALV

16006-016

Unavailable

10

SPRING SEAT-THRTL VLV

16007-014

$3.81

11

CLAMP,E-TYPE

16008-010

$7.02

12

JET NEEDLE,5EL9

16009-039

$27.76

13

VALVE-THROTTLE

16025-033

$45.20

14

ROD-THROTTLE VLV STOP

16024-010

$3.53

16

GASKET-FLOAT CHAMBER

16019-015

Unavailable

17

'V' RING

92055-042

Unavailable

18

WASHER FLOAT VLV SEAT

16029-004

$2.97

19

FLOAT VALVE ASSY

16030-013

Unavailable

20

FLOAT PIN

16032-005

$2.36

21

BOLT-BANJO

92001-097

Unavailable

23

JET-MAIN NO 117.5R

92063-077

$16.63

24

GASKET-BANJO BOLT

16034-005

Unavailable

25

CABLE GUIDE

16077-005

Unavailable

26

CAP-STARTER PLUNGER

16012-013

$4.00

27

SPRING-PLUNGER

16013-003

$4.18

28

PLUNGER,STARTER

16016-002

$33.31

29

SCREW

16014-006

$16.07

30

SPRING,PILOT AIR SCREW

16022-007

$7.97

31

WASHER,MAIN JET

16034-001

$3.43

32

JET-PILOT,#30

92064-022

$15.97

33

MAIN JET NO 2.4R

92063-102

Unavailable

34

NEEDLE JET 0-8

16017-042

$9.27

35

FLOAT

16031-020

Unavailable

36

SCREW-PAN-WS-CROS

223B0414

$1.16

37

CABLE ADJUSTER

16002-007

$10.92

38

RING-SNAP

92036-018

$2.97

39

GROMMET-OVERFLOW PIPE

16136-004

Unavailable
