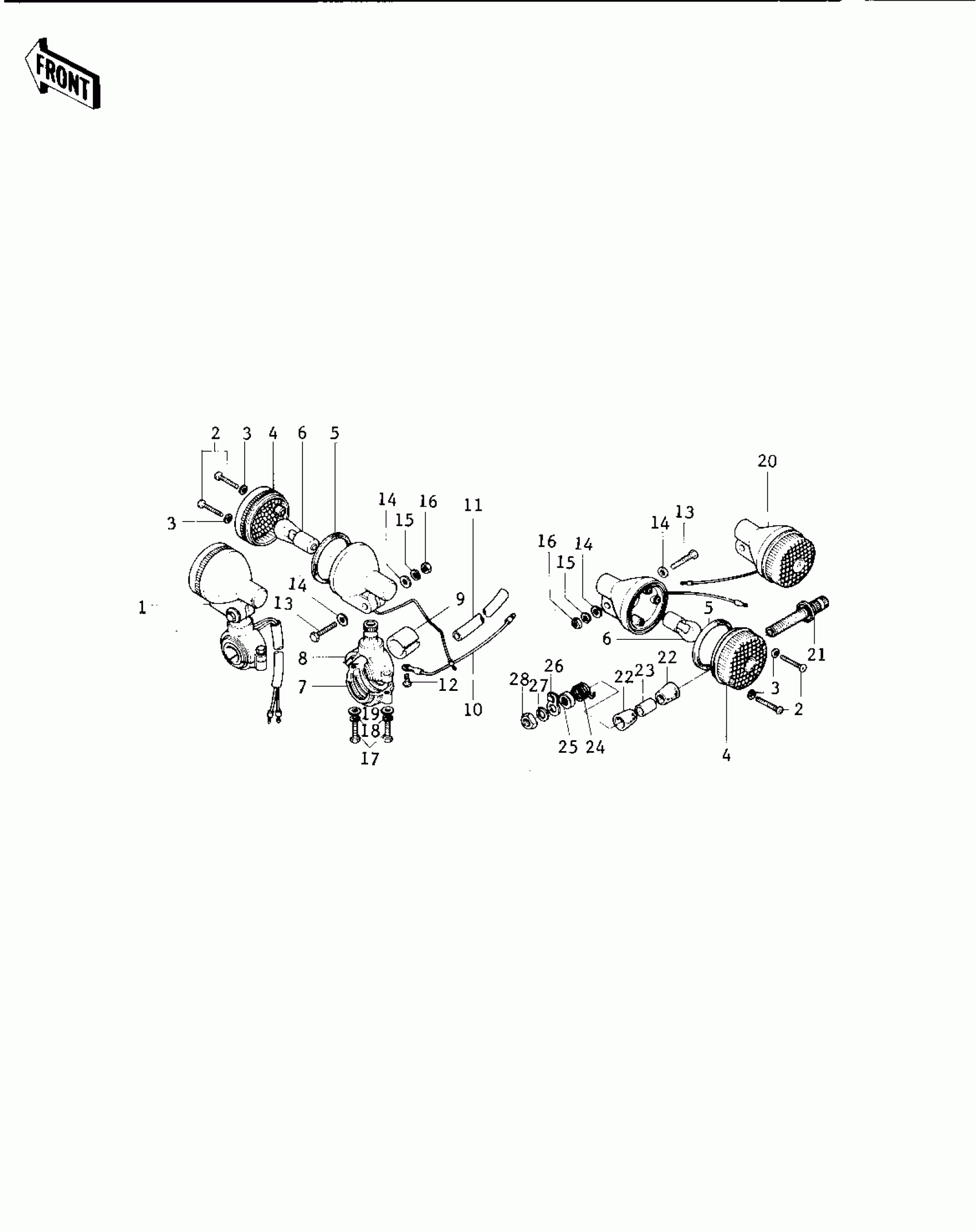

Kawasaki F7-D TURN SIGNALS (F7-B) Diagram
#
Description
Price
1
LAMP ASY-FR TURN SIG
23037-005
Unavailable
2
SCREW-PAN HEAD,4X20
220E0420A
Unavailable
8
BRACKET-SIGNAL LAMP,FR
23051-1004
Unavailable
9
DAMPER
23066-003
Unavailable
10
WIRE-LEAD,SIGNAL LAMP
26011-061
Unavailable
11
COVER-WIRING HARNESS
26009-004
Unavailable
13
BOLT-UPSET
112G0630
Unavailable
15
WASHER SPRING 6MM
461F0600
Unavailable
16
NUT 6MM
311B0600
Unavailable
17
BOLT
110N0516
Unavailable
18
WASHER SPRING 5MM
461F0500
Unavailable
20
LAMP-REAR TURN SIGNAL
23040-033
Unavailable
22
DAMPER RUBBER
92075-148
Unavailable
23
COLLAR 12.7X17.3X30
92027-168
Unavailable
24
SPRING
92081-111
Unavailable
25
WASHER CUP 12.5X35X4T
92022-235
Unavailable
26
CLAMP-RR SIGNAL LAMP
92037-087
Unavailable
27
WASHER-SPRING,12MM
461F1200
Unavailable
28
NUT-HEX-FINE
315B1200
Unavailable
