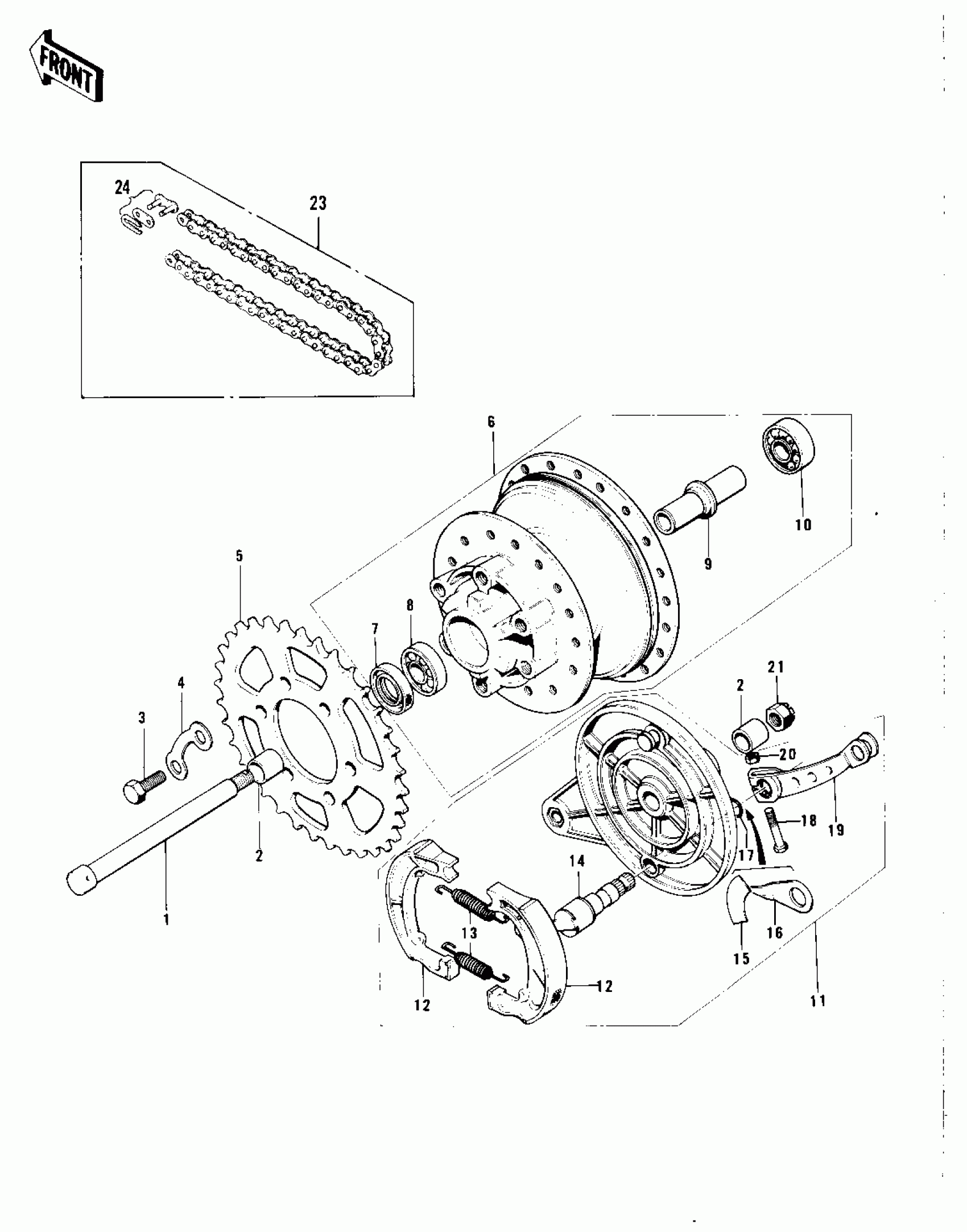

Kawasaki F7-D REAR HUB/BRAKE/CHAIN ('74-'75 F7-C/F6-D) Diagram

#

Description
Price

1

AXLE-REAR

42031-037

$44.42

2

COLLAR-REAR AXLE

42032-036

$16.71

3

BOLT-HEX HEAD,10X25

92001-087

Unavailable

4

WASHER LOCK

92088-007

$12.61

5

REAR SPROCKET 50T

42041-085

$98.10

5

REAR SPROCKET,46T

42041-084

Unavailable

6

DRUM ASSY-REAR BRAKE

42005-029

$269.60

6

DRUM ASY,RR BK,BUFF

42005-029-80

$184.66

7

OIL SEAL RR BRK DRUM

92050-009

Unavailable

8

BEARING-BALL,#6302C3

601B6302

$8.80

9

SPACER-RR HUB BEARING

42010-019

$16.49

10

BEARING BALL #6302Z

601B6302Z

$25.71

11

PANEL-ASY,RR BRK,BUFF

42006-039-80

$120.05

12

SHOE,BRAKE

42019-010

$34.77

12

SHOE,BRAKE

42019-010

$34.77

13

SPRING,BRAKE SHOE

92081-1766

$6.39

14

SPRING,BRAKE SHOE

92081-1550

$9.20

15

CAM SHAFT,REAR BRAKE

42026-014

$11.41

15

CAM SHAFT,REAR BRAKE

42026-025

$16.97

16

.LABEL,BRAKE SHOE,RR

41084-005

$1.46

17

INDICATOR,BRAKE SHOE

41085-012

$4.42

18

RING-O,BRAKE CAM

92055-004

$4.25

19

BOLT-UPSET

112G0630

Unavailable

20

LEVER-REAR BRAKE CAM

42029-023

$17.00

21

NUT,6MM

41072-007

$3.12

22

NUT CASTLE 14MM

321B1400

Unavailable

23

DR CHAIN 428X114H

92057-033

Unavailable

23

DR CHAIN 428X114H

92057-033

Unavailable

24

JOINT-CHAIN

92058-1015

Unavailable
