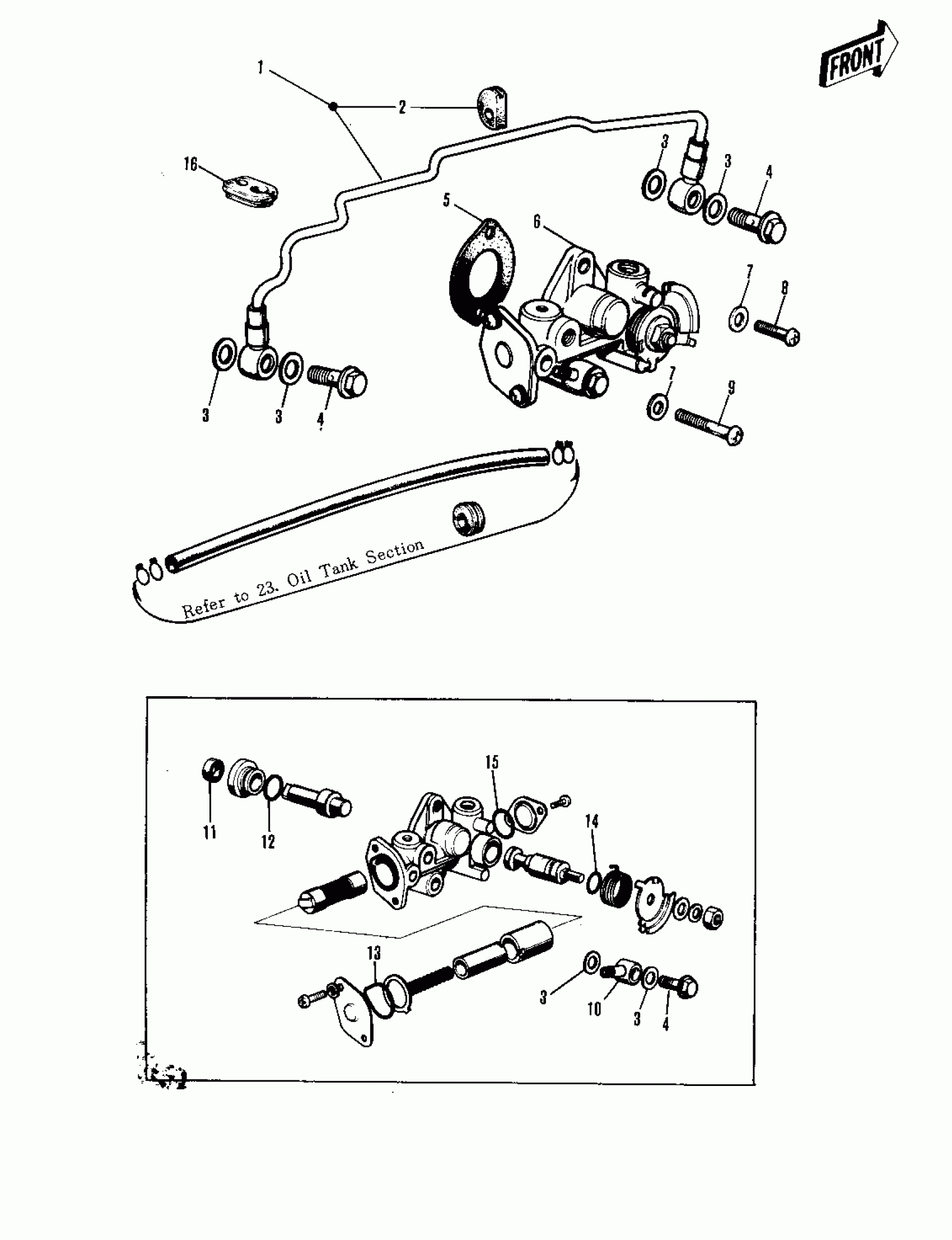

Kawasaki F7-D OIL PUMP ('71-'73 F7/F7-A/F7-B) Diagram

#

Description
Price

1

PIPE-OIL

16134-011

Unavailable

2

GROMMET-OIL PIPE

92071-045

$1.49

3

WASHER PLAIN 6MM

92022-102

Unavailable

4

BOLT,BANJO,L=16

92060-013

$5.16

5

GASKET,OIL PUMP

11060-1160

$4.41

6

OIL PUMP ASSY

16082-029

$119.40

7

WASHER,5.5X10.5X0.8

92022-037

$3.12

8

SCREW-PAN-CROS

220B0514

Unavailable

9

SCREW-PAN-CROS

220B0528

$1.34

10

FITTING,BANJO

92061-009

Unavailable

11

SEAL-OIL,OIL PUMP SHAFT

16091-001

$5.76

12

RING-O,OIL PUMP SHAFT

16090-002

$3.43

13

RING-O,CAP,BANJO SIDE

16088-002

$7.84

14

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$8.25

15

"0" RING,LOWER CAP

16090-003

Unavailable

16

GROMMET OIL PIPE B

16135-005

Unavailable
