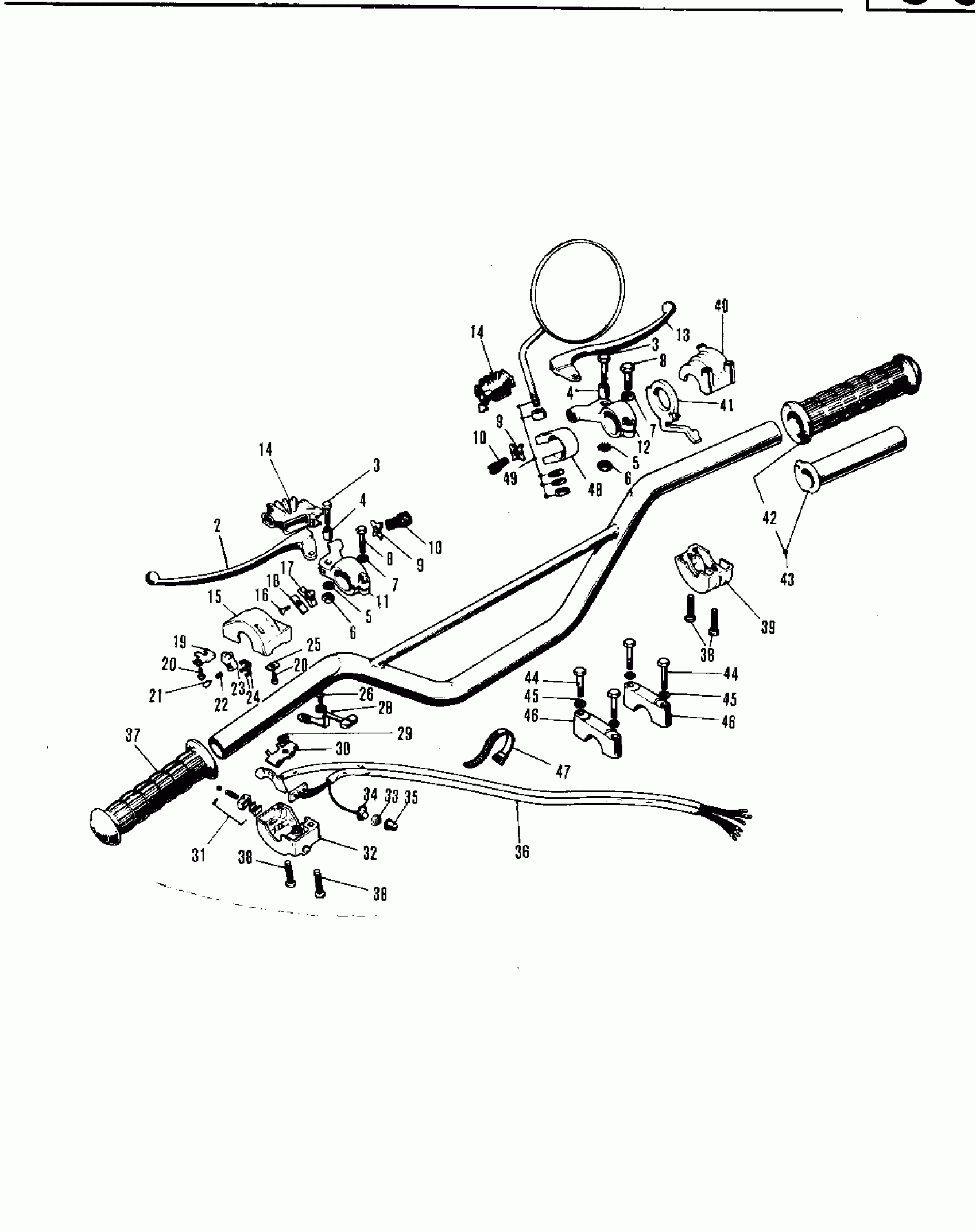

Kawasaki F7-D HANDLEBAR (F7/F7-A) Diagram

#

Description
Price

1

HANDLEBAR

46004-016

Unavailable

2 ~11

LEVER ASSY-CLUTCH

46076-014

Unavailable

2

LEVER-GRIP,CLUTCH

46092-015

$19.69

3

BOLT HEX HEAD 5X20

92007-020

Unavailable

4

COLLAR LEVER

46059-011

Unavailable

5

WASHER LOCK 5MM

464H0500

Unavailable

6

NUT-HEX,5MM

312B0500

Unavailable

7

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

8

BOLT,6X22

110N0622

Unavailable

9

NUT LOCK ADJUST SCREW

46056-001

Unavailable

10

SCREW,CABLE ADJUST,8MM

46055-003

$12.92

11

HOLDER,CLUTCH LEVER

46094-010

Unavailable

3 ~ 10

LEVER ASSY-FRNT BRAKE

46021-010

Unavailable

12,13

Not Available As Spare Part - Friction Washer

Unavailable

12

HOLDER-FR BRAKE LEVER

46060-006

Unavailable

13

LEVER-GRIP,FRONT BRAKE

46058-004

$22.90

14

DUST COVER

46071-001

Unavailable

15~36,

CASE ASSY-L.H

46091-004

Unavailable

15

CASE L.H SWITCH UPPER

46086-013

$11.97

16

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

17

KNOB-L.H SWITCH

46044-011

Unavailable

18

SPRING L.H SW KNOB

46031-003

Unavailable

19

HOLDER L.H SW LOWER B

46085-014

$1.44

20

SCREW PAN HEAD 3X5

220B0305A

$0.63

21

CONTACT L.H SWITCH

46079-002

$1.51

22

SPRING L.H SWITCH

46031-004

$1.56

23

SWITCH L.H

46089-003

Unavailable

24

PLATE L.H SW CONTACT

46080-002

$1.51

25

HOLDER L.H SW UPPER A

46085-013

$1.51

26

SCREW-PAN-CROS,3X8

220B0308

$0.63

28

KNOB-SWITCH

46044-006

$4.32

29

WASHER

92095-010

Unavailable

30

HOLDER L.H SW LOWER

46085-015

$1.17

31

SLIDE BLOCK AY-L.H SW

46089-004

$6.90

32

CASE L.H SWITCH LOWER

46077-015

$12.64

33

SWITCH,PUSH BUTTON

27010-1009

$7.31

34

SWITCH,PUSH BUTTON

27010-1009

$7.31

35

SWITCH,PUSH BUTTON

27010-1009

$7.31

36

WIRING HARNESS-L.H SW

46082-017

$22.64

37

RUBBER-L.H GRIP

46075-017

Unavailable

38

SCREW PAN HEAD 5X22

220B0522

Unavailable

38 ~ 4

CASE ASSY-R.H

46018-019

Unavailable

39

CASE-R.H LOWER

46023-005

Unavailable

39

CASE-R.H LOWER

46023-005

Unavailable

40

CASE-R.H.UPPER

46041-005

Unavailable

41

LEVER-STARTER

46096-006

$36.78

42

RUBBER-R.H GRIP

46061-012

Unavailable

43

GRIP ASSY-THROTTLE

46019-013

Unavailable

43

GRIP ASSY-THROTTLE

46019-018

Unavailable

44

BOLT 8X38

92001-1405

$13.05

45

WASHER SPRING 8MM

461F0800

Unavailable

46

HOLDER-HANDLE,UPP

46012-008

$34.49

46

HOLDER-HANDLE,UPP

46012-004

Unavailable

47

BAND,L=123

92072-030

$3.97

48

BRACKET

56006-001

Unavailable

49

REAR VIEW MIRROR LH

56003-016

Unavailable

49

REAR VIEW MIRROR R.H.

56002-024

Unavailable
