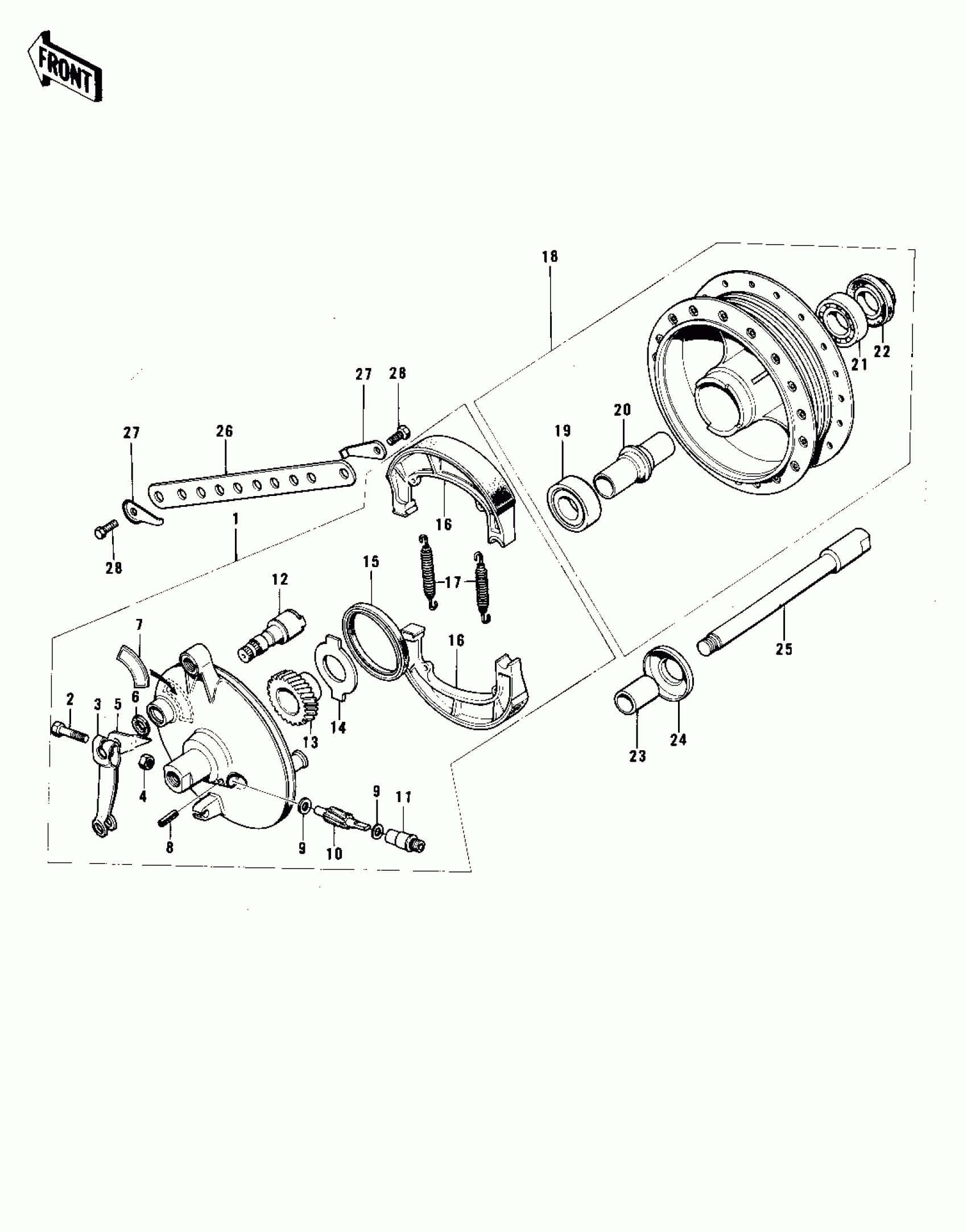

Kawasaki F7-D FRONT HUB/BRAKE ('74-'75 F7-C/F6-D) Diagram

#

Description
Price

1

PANEL-ASY,FR BRK BUFF

41035-044-80

Unavailable

2

BOLT-UPSET

112G0630

Unavailable

3

LEVER-BRAKE CAM

41053-005

$12.24

4

BAND OIL TANK

92072-007

$3.12

5

INDICATOR,BRAKE SHOE

41085-012

$4.42

6

RING-O,BRAKE CAM

92055-004

$4.25

7

LABEL,BRAKE SHOE,FRT

41084-007

$1.46

8

PIN,SPRING

41082-001

$3.53

9

WASHER,5.1X9X0.4

41063-001

$4.17

10

GEAR-METER SCREW,8T

41060-004

$20.37

11

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

12

CAM SHAFT,FRONT BRAKE

41050-019

$10.73

13

GEAR-SPEEDOMETER

41059-012

$17.12

14

RECIEVER-SPEED GEAR

41064-006

$8.46

15

OIL SEAL F BRK PANEL

92050-010

$20.51

16

SHOE,BRAKE

42019-010

$34.77

17

SPRING,BRAKE SHOE

92081-1766

$6.39

18

DRUM-ASSY,FR BRK,BUFF

41034-020-80

$109.60

19

BEARING BALL #6301Z

601B6301Z

Unavailable

20

SPACER FR HUB BEARING

41039-005

$12.00

21

BEARING BALL #6301

601B6301

Unavailable

22

OIL SEAL FR BRK DRUM

92050-011

$13.56

23

COLLAR FRONT HUB R.H

41069-005

$10.39

24

DUST SHIELD FR BRAKE

41042-006

$9.37

25

AXLE-FRONT

41068-032

Unavailable

26

TORQUE LINK-FRNT BRK

43007-022

Unavailable

27

WASHER-LOCK

92088-012

Unavailable

28

BOLT-HEA HEAD,8X20

92001-086

Unavailable
