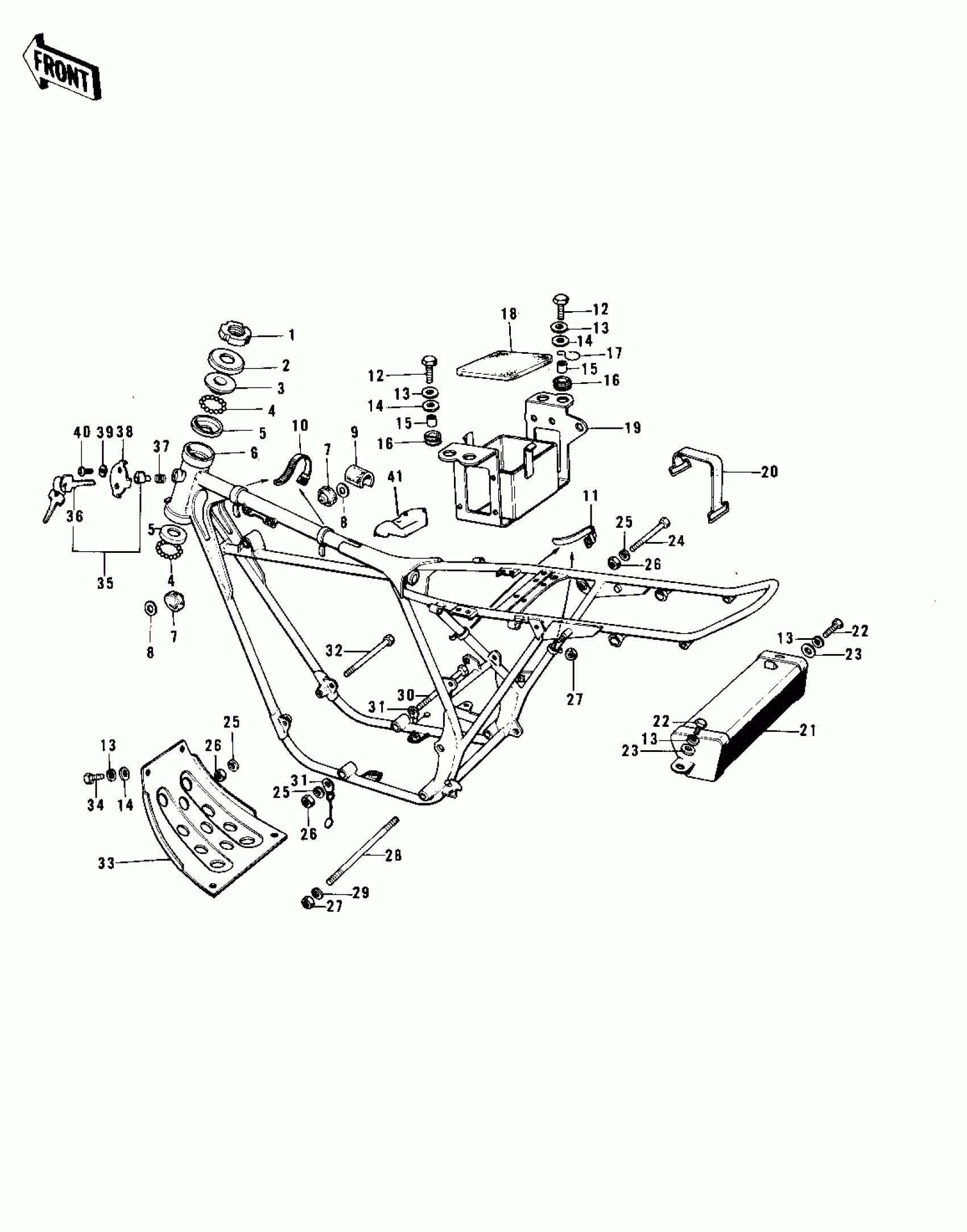

Kawasaki F7-D FRAME/FRAME FITTINGS ('74-'75 F7-C/F6-D) Diagram

#

Description
Price

1

NUT STEERING STEM LCK

92090-006

$14.24

2

CAP,STEERING STEM

46098-004

$5.37

3

RACE,UPPER BEARING

92047-005

$11.59

4

BALL-STEEL,3/16

600A0600

$1.02

5

RACE,BEARING

92048-004

Unavailable

6

FRAME

32002-075

$502.16

7

DAMPER RUBB FUEL TANK

92075-050

Unavailable

8

WASHER,10.5X26X2.3

92022-044

$3.12

9

MAT FUEL TANK

51067-002

Unavailable

10

BAND,L=218

92072-032

$3.97

11

BAND,L=123

92072-030

$3.97

12

BOLT-UPSET,6X20

112G0620

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER,6.5X20X1.6

92022-125

$1.25

15

COLLAR

92027-103

$2.78

16

DAMPER RUBBER

92075-051

$2.34

17

CLAMP CABLE

92037-026

Unavailable

18

MAT-BATTERY

32103-019

Unavailable

19

CASE-BATTERY

32097-018

$29.10

20

BAND

92072-012

$5.84

21

BOX-TOOL

32098-013

$51.73

22

BOLT-UPSET,6X12

112G0612

Unavailable

23

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

24

BOLT,FLANGED,10X115

92001-1603

$10.25

25

WASHER SPRING 10MM

461F1000

Unavailable

26

NUT-HEX-FINE,10MM

314B1000

Unavailable

27

NUT-HEX-FINE

314B1200

Unavailable

28

STUD,12X290

92006-003

$14.69

29

WASHER-SPRING,12MM

461F1200

Unavailable

30

BOLT,HEX HEAD,10X215

113B10215

Unavailable

31

CHAIN

58041-012

Unavailable

32

BOLT,HEX HEAD,10X150

92001-1251

Unavailable

33

GUARD-ENGINE

55011-012

Unavailable

34

BOLT-UPSET 6X14

112B0614

Unavailable

35

LOCK-ASSY,STEERING

27016-042

$46.56

36

KEY SET,#401

27008-063-01

Unavailable

36

KEY SET,#402

27008-063-02

$23.80

36

KEY SET,#403

27008-063-03

$16.12

36

KEY SET,#404

27008-063-04

$20.71

36

KEY SET,#405

27008-063-05

$20.71

36

KEY SET,#406

27008-063-06

$20.71

36

KEY SET,#407

27008-063-07

Unavailable

36

KEY SET,#408

27008-063-08

$20.71

36

KEY SET,#409

27008-063-09

Unavailable

36

KEY SET,#410

27008-063-10

Unavailable

36

KEY SET,#411

27008-063-11

Unavailable

36

KEY SET,#412

27008-063-12

$19.93

36

KEY SET,#413

27008-063-13

$19.97

36

KEY SET,#414

27008-063-14

$8.49

36

KEY SET,#415

27008-063-15

Unavailable

36

KEY SET,#416

27008-063-16

Unavailable

36

KEY SET,#417

27008-063-17

$19.97

36

KEY SET,#418

27008-063-18

$8.53

36

KEY SET,#419

27008-063-19

$19.93

36

KEY SET,#420

27008-063-20

$19.97

36

KEY SET,#421

27008-063-21

Unavailable

36

KEY SET,#422

27008-063-22

Unavailable

36

KEY SET,#423

27008-063-23

Unavailable

36

KEY SET,#424

27008-063-24

Unavailable

36

KEY SET,#425

27008-063-25

Unavailable

36

KEY SET,#426

27008-063-26

Unavailable

36

KEY SET,#427

27008-063-27

Unavailable

36

KEY SET,#428

27008-063-28

Unavailable

36

KEY SET,#429

27008-063-29

Unavailable

36

KEY SET,#430

27008-063-30

Unavailable

37

SPRING,STEERING LOCK

27032-001

Unavailable

38

CAP,STEERING LOCK

11012-1134

$5.95

39

WASHER,WAVE

92097-003

$3.57

40

SCREW,3.51MM

92008-007

$3.27

41

DAMPER RUBBER,FL TNK

92075-236

$14.64
