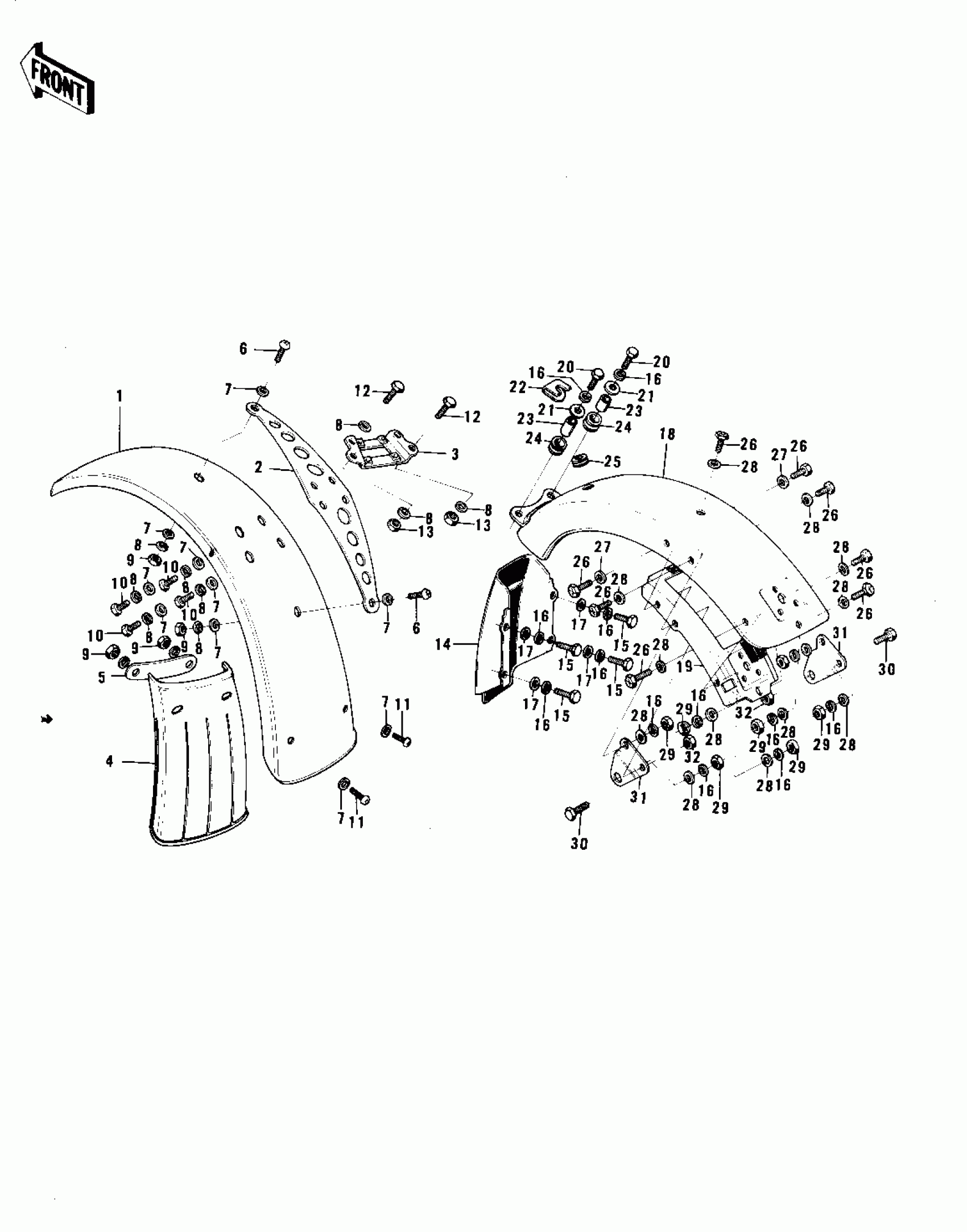

Kawasaki F7-D FENDERS Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

35004-072-18

Unavailable

1

FENDER-FR,SILVER

35004-072-1W

Unavailable

2

PLATE FRONT FENDER

35013-003

$7.22

3

BRACKET-FRONT FENDER

35012-013

Unavailable

4

FLAP-FR FENDER,RUBBER

35019-004

Unavailable

5

PLATE-FR FENDER FLAP

35020-007

$2.31

6

SCREW PAN HEAD 6X12

220E0612

$4.08

7

WASHER,6.5X20X1.6

92022-125

$1.25

8

WASHER SPRING 6MM

461F0600

Unavailable

9

NUT 6MM

312B0600

Unavailable

10

BOLT-UPSET,6X12

112G0612

Unavailable

11

SCREW-PAN-CROS,6X14

220B0614

$1.32

12

BOLT-HEX HEAD,6X32

110N0632

Unavailable

13

NUT 6MM

311B0600

Unavailable

14

FENDER-RR

35022-053

$32.53

15

BOLT-UPSET 6X14

112B0614

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

COLLAR

92027-122

$6.83

18

FENDER-RR,C.BLUE

35022-074-1S

$79.49

18

FENDER-RR,M.SILVER

35022-074-1W

$92.46

19

GUSSET-REAR FENDER

35034-017

Unavailable

20

BOLT-UPSET,6X20

112G0620

Unavailable

21

WASHER,6.5X20X1.6

92022-125

$1.25

22

PLATE-GROUND WIRE

26015-001

$1.44

23

COLLAR

92027-103

$2.78

24

DAMPER RUBBER

92075-051

$2.34

25

GROMMET HARNESS 10MM

92071-010

Unavailable

26

SCREW-PAN-CROS,6X14

220B0614

$1.32

27

WASHER,6.5X20X1.6

92022-125

$1.25

28

WASHER PLAIN

92022-024

$2.92

29

NUT 6MM

311B0600

Unavailable

30

BOLT-SMALL-UPSET

115G0845

Unavailable

31

BRACKET,REAR FENDER

35025-026

$6.90

32

NUT,LOCK,8MM

92015-1124

$4.30
