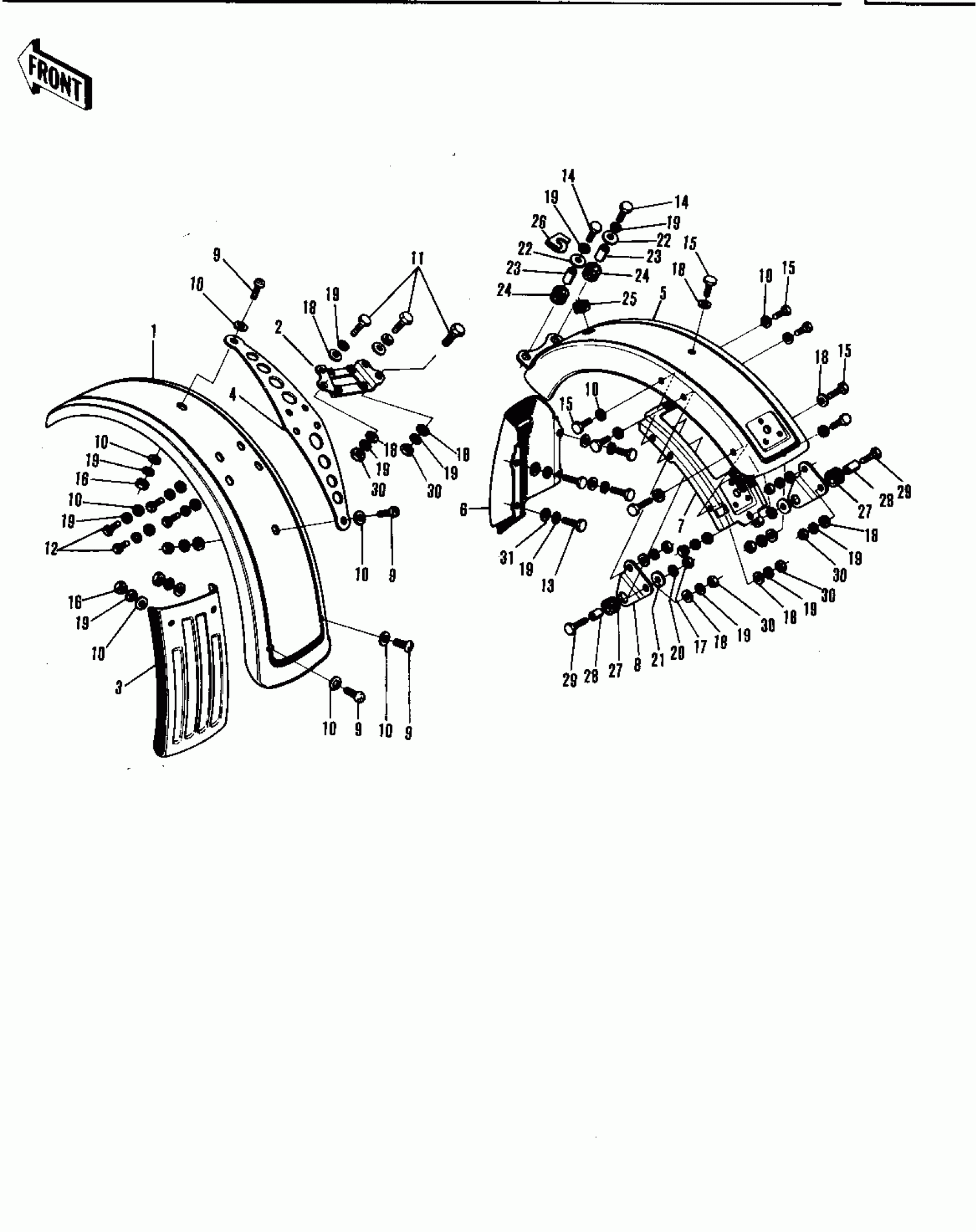

Kawasaki F7-D FENDERS (F7) Diagram

#

Description
Price

1

FENDER-FR,YELLOW

35004-055-53

Unavailable

2

BRACKET-FRONT FENDER

35012-013

Unavailable

3

FLAP-FR FENDER,RUBBER

35019-004

Unavailable

4

PLATE FRONT FENDER

35013-003

$7.22

5

FENDER-REAR,B YELLOW

35022-054-53

Unavailable

6

FENDER-RR

35022-053

$32.53

7

BRACE-REAR FENDER

35034-012

Unavailable

8

BRACKET-REAR FENDER

35025-019

$4.73

9

SCREW PAN HEAD 6X12

220E0612

$4.08

10

WASHER,6.5X20X1.6

92022-125

$1.25

11

BOLT-UPSET

112G0625

Unavailable

12

BOLT-UPSET,6X12

112G0612

Unavailable

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

BOLT-UPSET

112G0618

Unavailable

15

SCREW-PAN-CROS,6X14

220B0614

$1.32

16

NUT 6MM

312B0600

Unavailable

17

NUT,8MM

311B0800

Unavailable

18

WASHER PLAIN 6MM

411B0600

Unavailable

19

WASHER SPRING 6MM

461F0600

Unavailable

20

WASHER SPRING 8MM

461F0800

Unavailable

21

WASHER,8X26X2.3

92022-1564

$3.43

22

WASHER,6.5X20X1.6

92022-125

$1.25

23

COLLAR

92027-103

$2.78

24

DAMPER RUBBER

92075-051

$2.34

25

GROMMET HARNESS 10MM

92071-010

Unavailable

26

PLATE-GROUND WIRE

26015-001

$1.44

27

DAMPER RUBB TANK FRNT

92075-013

$3.92

28

COLLAR,8.8X12X14

92027-012

$4.93

29

BOLT-SMALL-UPSET

115B0832

Unavailable

30

NUT 6MM

311B0600

Unavailable

31

COLLAR

92027-122

$6.83

32

EMBLEM-FRONT FENDER

56027-015

$1.97

33

EMBLEM-REAR FENDER

56027-016

$3.24

34

EMBLEM-FENDER

56027-017

Unavailable
