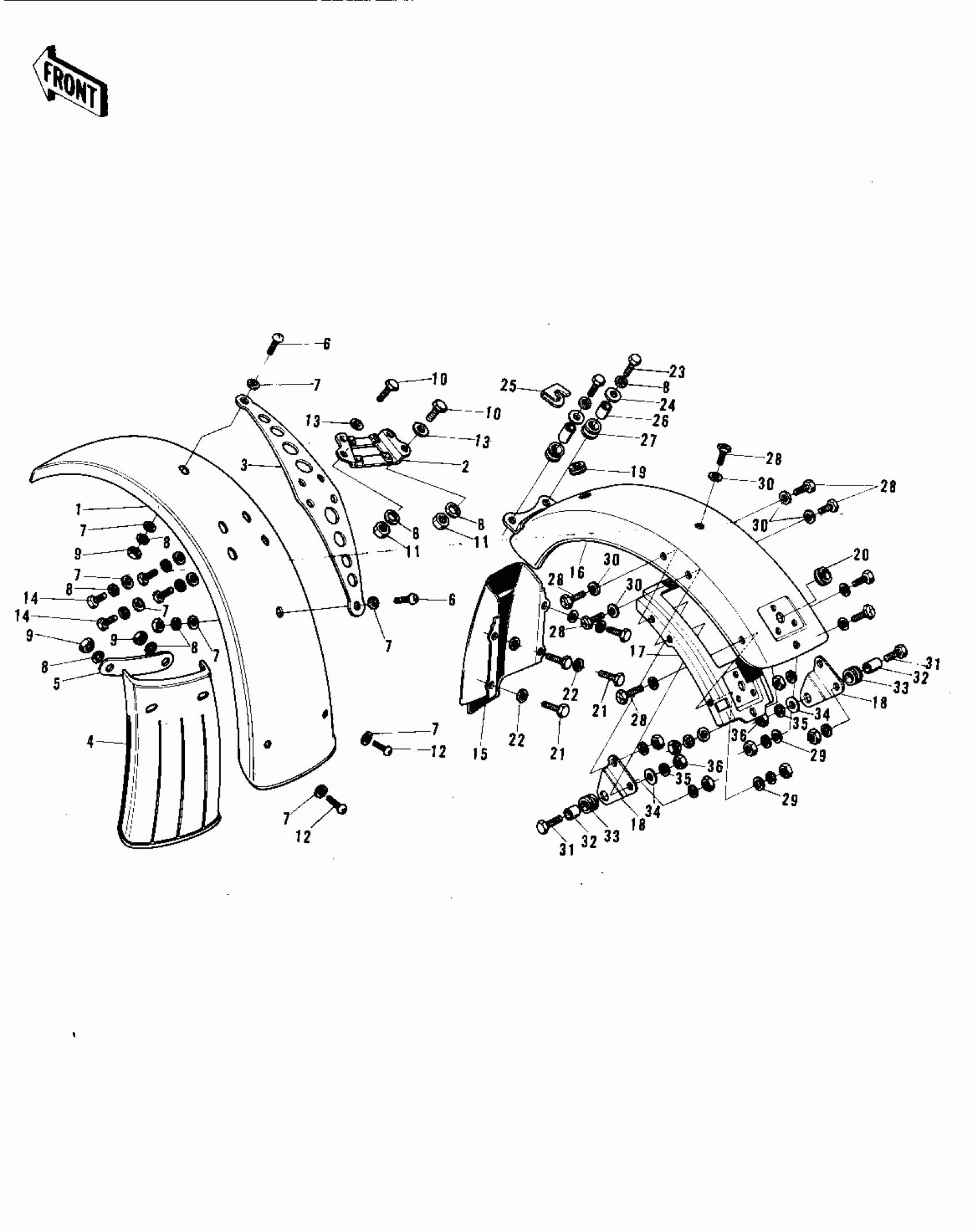

Kawasaki F7-D FENDERS (F7-A) Diagram

#

Description
Price

1

FENDER-FR,RED

35004-055-73

$88.29

2

BRACKET-FRONT FENDER

35012-013

Unavailable

3

PLATE FRONT FENDER

35013-003

$7.22

4

FLAP-FR FENDER,RUBBER

35019-004

Unavailable

5

PLATE-FR FENDER FLAP

35020-007

$2.31

6

SCREW PAN HEAD 6X12

220E0612

$4.08

7

WASHER,6.5X20X1.6

92022-125

$1.25

8

WASHER SPRING 6MM

461F0600

Unavailable

9

NUT 6MM

312B0600

Unavailable

10

BOLT-UPSET

112G0625

Unavailable

11

NUT 6MM

311B0600

Unavailable

12

SCREW PAN HEAD 6X14

220E0614

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

14

BOLT-UPSET,6X12

112G0612

Unavailable

15

FENDER-RR

35022-053

$32.53

16

FENDER-RR,RED

35022-054-73

$79.49

17

BRACE-REAR FENDER

35034-012

Unavailable

18

BRACKET-REAR FENDER

35025-019

$4.73

19

GROMMET HARNESS 10MM

92071-010

Unavailable

20

GROMMET,10MM

92071-019

$3.10

21

BOLT-UPSET 6X14

112B0614

Unavailable

22

COLLAR

92027-122

$6.83

23

BOLT-UPSET

112G0618

Unavailable

24

WASHER,6.5X20X1.6

92022-125

$1.25

25

PLATE-GROUND WIRE

26015-001

$1.44

26

COLLAR

92027-103

$2.78

27

DAMPER RUBBER

92075-051

$2.34

28

SCREW-PAN-CROS,6X14

220B0614

$1.32

29

WASHER PLAIN 6MM

411B0600

Unavailable

30

WASHER PLAIN

92022-024

$2.92

31

BOLT-SMALL-UPSET

115B0832

Unavailable

32

COLLAR,8.8X12X14

92027-012

$4.93

33

DAMPER RUBB TANK FRNT

92075-013

$3.92

34

WASHER,8X26X2.3

92022-1564

$3.43

35

WASHER SPRING 8MM

461F0800

Unavailable

36

NUT,8MM

311B0800

Unavailable
