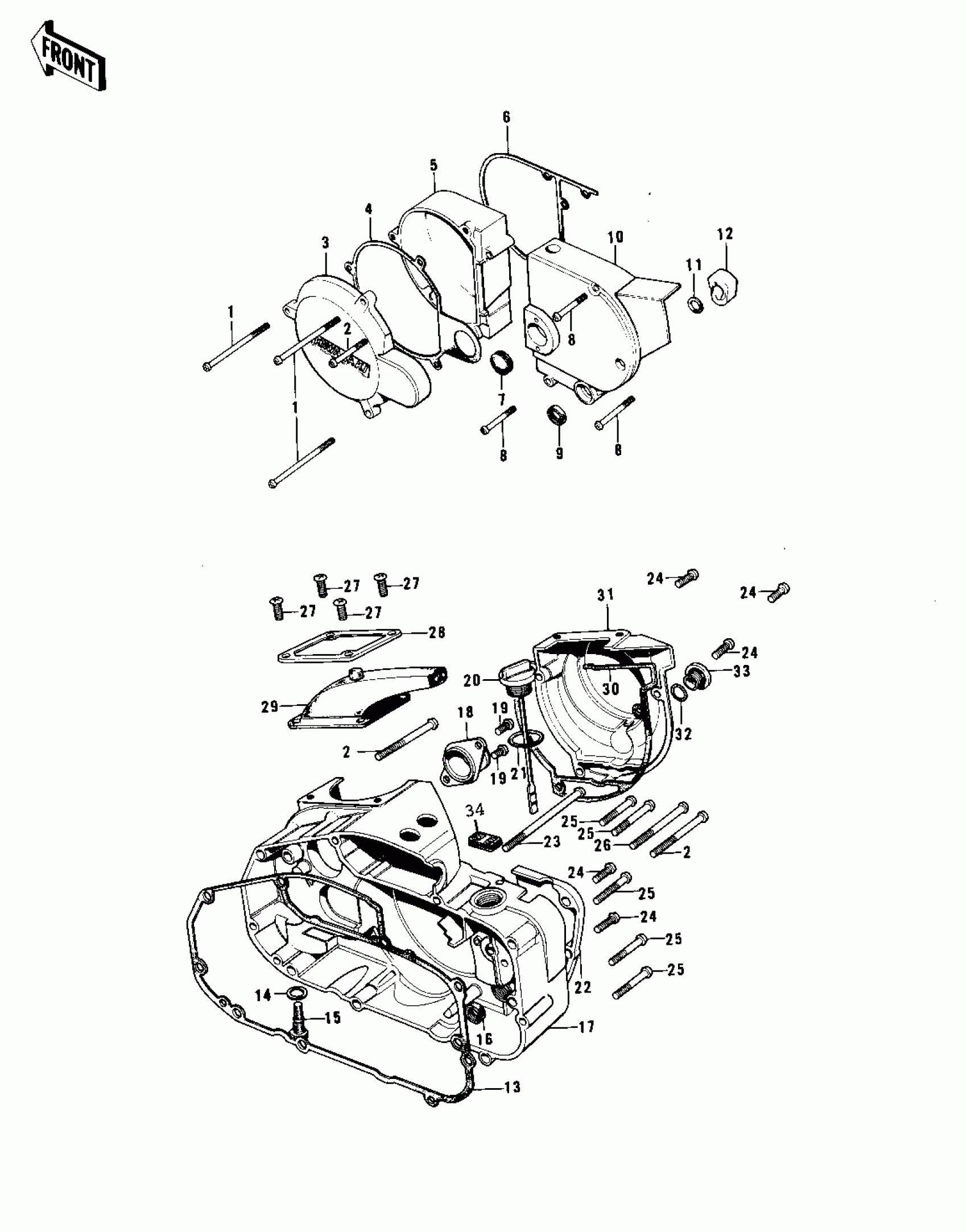

Kawasaki F7-D ENGINE COVERS ('74-'75 F7-C/F6-D) Diagram

#

Description
Price

1

SCREW-PAN HEAD,6X90

220B0690

Unavailable

2

SCREW PAN HEAD 6X50

220B0650

$1.19

3

COVER,BRK POINT,BUFF

14027-017-80

Unavailable

4

GASKET-BREAKER COVER

14050-003

Unavailable

5

COVER,L.H ENG,BUFF

14031-042-80

Unavailable

6

GASKET-L.H ENGINE COV

14045-009

Unavailable

7

CAP-RUBBER

92073-015

Unavailable

8

SCREW PAN HEAD 6X55

220B0655

$3.28

9

SEAL-OIL

92049-1249

$8.20

10

COVER,CHAIN.BUFF

14026-002-80

Unavailable

11

GASKET-CHAIN CASE COV

14045-010

$0.90

12

TENSIONER-CHAIN

13123-006

Unavailable

13

GASKET-R.H ENGINE COV

14046-018

Unavailable

14

PLUG-FUEL DRAIN

92067-007

$7.22

15

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$3.24

16

SEAL-OIL,TB16267

92051-003

Unavailable

17

COVER,R.H ENG.BUFF

14032-092-80

Unavailable

18

HOLDER,CARBURETOR

16065-026

Unavailable

19

SCREW PAN HEAD 6X12

220B0612

Unavailable

20

PLUG-OIL FILLER

16115-015

Unavailable

21

O RING,20MM

670B2020

$1.12

22

COVER,OIL PUMP,BUFF

14030-029-80

Unavailable

23

SCREW PAN HEAD 6X80

220B0680

Unavailable

24

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

25

SCREW PAN HEAD 6X35

220B0635

$1.44

26

SCREW PAN HEAD 6X40

220B0640

Unavailable

27

SCREW-PAN-CROS,6X16

220B0616

Unavailable

28

HOLDER-CARBURETOR CAP

14065-002

$7.22

29

CAP,CARBURETOR

14038-037

$7.80

30

GASKET-CARBURETOR COV

14048-003

Unavailable

31

COVER,CARB,BUFF

14030-057-80

Unavailable

32

O RING,20MM

670B2020

$1.12

33

PLUG,CARBURETOR COVER

92067-022

$16.85

34

GROMMET-OVERFLOW PIPE

16136-005

Unavailable
