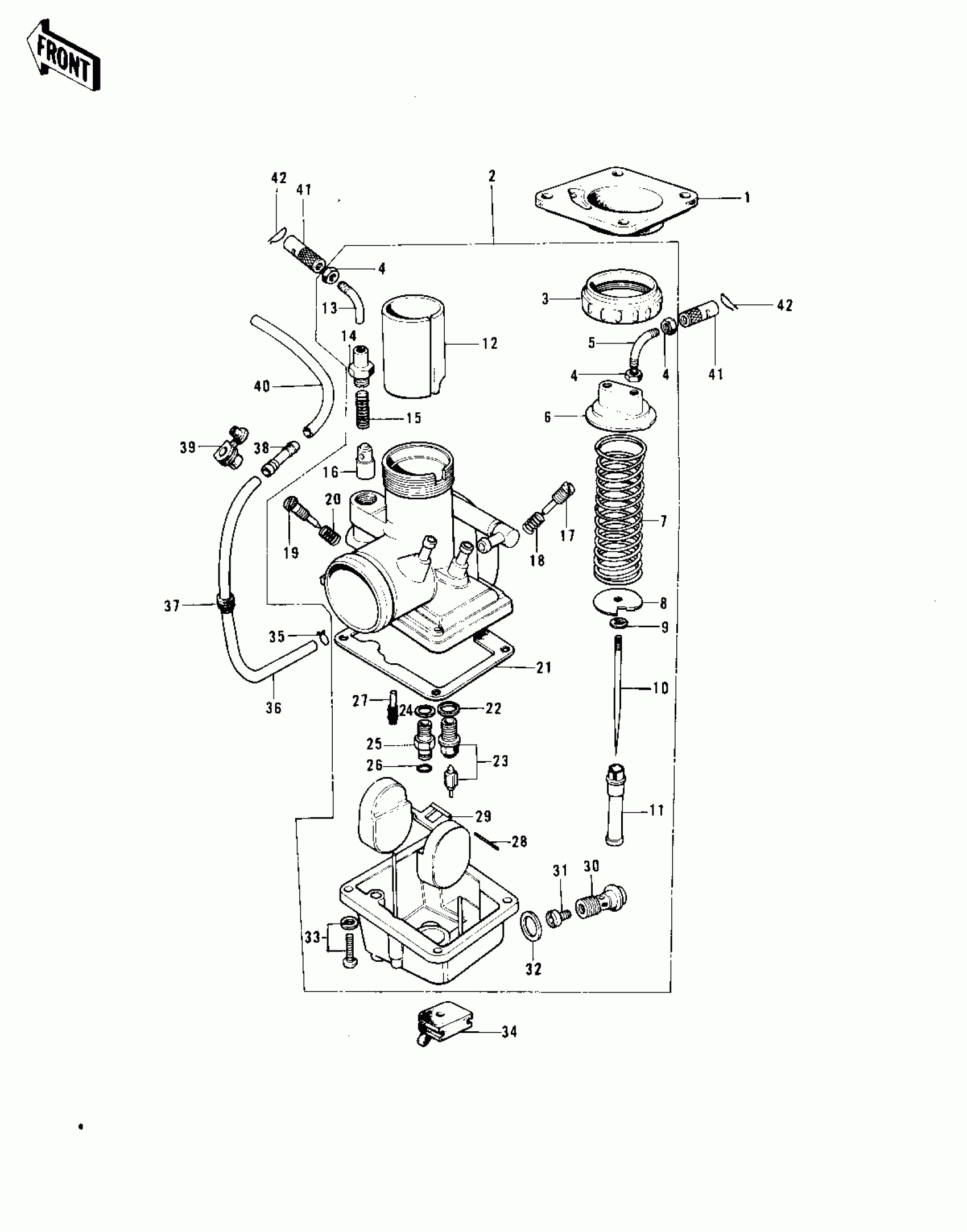

Kawasaki F7-D CARBURETOR ('74-'75 F7-C/F6-D) Diagram

#

Description
Price

1

CAP,CARBURETOR

14038-038

Unavailable

2

CARBURETOR ASSY

16001-197

Unavailable

3

CAP MIXING CHAMBER

16004-011

Unavailable

4

NUT,CABLE ADJUST LOCK

16003-004

$7.53

5

CABLE GUIDE

16077-001

$8.78

6

TOP,MIXING CHAMBER

16005-025

Unavailable

7

SPRING,THROTTLE VALVE

16006-023

$14.22

8

SPRING SEAT,THRTL VLV

16007-025

$8.53

9

CLAMP,E-TYPE

16008-010

$8.95

10

JET NEEDLE 4EJ3

16009-040

Unavailable

11

NEEDLE JET,O-G

16017-057

$37.29

12

VALVE,THROTTLE CA3.0

16025-070

$45.32

13

GUIDE,CABLE

16077-010

$20.20

14

CAP,STARTER PLUNGER

16012-017

Unavailable

15

SPRING-PLUNGER

16013-003

$4.36

16

PLUNGER,STARTER

16016-002

$33.31

17

SCREW-PILOT AIR

16014-002

Unavailable

18

SPRING,PILOT AIR SCREW

16022-007

$7.97

19

SCREW,THROTTLE STOP

16021-023

Unavailable

20

SPRING,THROTTLE STOP SCREW

16022-005

Unavailable

21

GASKET,FLOAT CHAMBER

16019-023

Unavailable

22

WASHER FLOAT VLV SEAT

16029-004

$3.10

23

FLOAT VALVE ASSY,#2.6

16030-025

$127.69

24

WASHER,MAIN JET

16034-001

$3.57

25

HOLDER-NEEDLE JET

16065-008

$22.19

26

RING-O

92055-044

$8.24

27

JET-PILOT,#30

92064-022

$15.97

28

FLOAT PIN

16032-006

$7.49

29

FLOAT

16031-026

Unavailable

30

BOLT-BANJO

92001-097

Unavailable

31

MAIN JET,#A105R

92063-1042

$12.79

31

MAIN JET,#A100

92063-1033

$25.14

31

MAIN JET,#A102.5

92063-1028

Unavailable

31

JET-MAIN NO 107.5R

92063-073

Unavailable

31

MAIN JET,#110R

92063-1038

Unavailable

32

GASKET-BANJO BOLT

16034-005

Unavailable

33

SCREW-PAN-WS-CROS

223B0414

$1.34

34

GROMMET,OVERFLOW PIPE

16136-008

$2.41

35

CLAMP,TUBE

92037-010

$3.12

36

PIPE

92059-065

$34.99

37

GROMMET,PIPE

92071-038

Unavailable

38

NIPPLE

92005-003

$3.53

39

GROMMET

92071-073

$3.83

40

PIPE OIL TANK

92059-002

$34.99

41

CABLE ADJUSTER

16002-007

Unavailable

42

RING-SNAP

92036-018

$3.10
