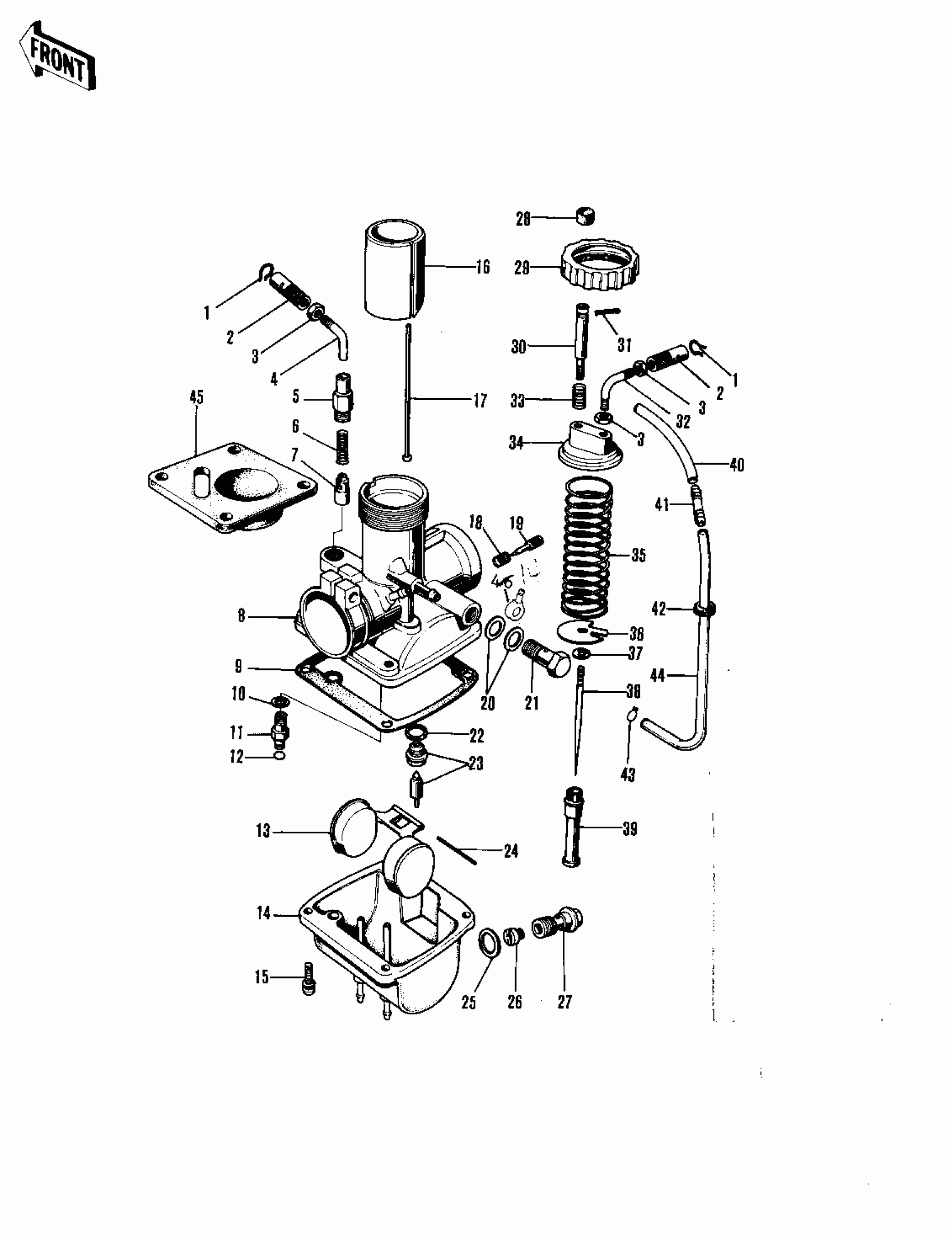

Kawasaki F7-D CARBURETOR ('71-'73 F7/F7-A/F7-B) Diagram

#

Description
Price

1

RING-SNAP

92036-018

$3.10

2

CABLE ADJUSTER

16002-007

Unavailable

3~39

CARBURETOR ASSY

16001-211

$267.31

3

NUT,CABLE ADJUST LOCK

16003-004

$7.53

4

CABLE GUIDE

16077-005

Unavailable

5

CAP-STARTER PLUNGER

16012-014

$4.39

6

SPRING-PLUNGER

16013-003

$4.36

7

PLUNGER,STARTER

16016-002

$33.31

9

GASKET FLOAT CHAMBER

16019-013

Unavailable

10

WASHER,MAIN JET

16034-001

$3.57

11

HOLDER-NEEDLE JET

16065-008

$22.19

12

RING-O

92055-044

$8.24

13

FLOAT

16031-016

$136.43

15

SCREW FLOAT CHAMBER

16033-009

$0.73

16

VALVE,TROTTLE

16025-069

$67.83

17

ROD-THROTTLE VLV STOP

16024-009

Unavailable

18

SPRING,PILOT AIR SCREW

16022-007

$7.97

19

SCREW-PILOT AIR

16014-002

Unavailable

20

GASKET-BANJO BOLT

92065-078

Unavailable

20

GASKET 8MM

751P0800

Unavailable

21

BOLT BANJO

92001-014

Unavailable

22

WASHER FLOAT VLV SEAT

16029-004

$3.10

23

VALVE-FLOAT,2.5

16030-005

$60.01

23

FLOAT VALVE ASSY,#2.6

16030-025

$127.69

24

PIN,FLOAT

16032-003

$5.95

25

GASKET-BANJO BOLT

16034-005

Unavailable

26

MAIN JET,#A105R

92063-1042

$12.79

26

JET-MAIN NO 107.5R

92063-073

Unavailable

26

MAIN JET,#110R

92063-1038

Unavailable

26

MAIN JET,#A102.5

92063-1028

Unavailable

26

MAIN JET,#A100

92063-1033

$25.14

27

BOLT-BANJO

92001-097

Unavailable

28

CAP THROTTLE ADJUSTER

16037-002

Unavailable

29

CAP MIXING CHAMBER

16004-011

Unavailable

30

SCREW-THROTTLE STOP

16021-010

Unavailable

31

PIN COTTER 1.2X10

550D1210

$1.73

32

CABLE GUIDE

16077-001

$8.78

33

SPRING-THR STOP SCREW

16022-008

Unavailable

34

TOP MIXING CHAMBER

16005-020

$6.85

35

SPRING THROTTLE VALVE

16006-014

Unavailable

36

SPRING SEAT,THRTL VL

16007-024

Unavailable

37

CLAMP,E-TYPE

16008-010

$8.95

38

JET NEEDLE 4EJ3

16009-040

Unavailable

39

NEEDLE JET,0-2

16017-048

Unavailable

40

PIPE OIL TANK

92059-002

$34.99

41

NIPPLE

92005-003

$3.53

42

GROMMET,PIPE

92071-038

Unavailable

43

CLAMP,TUBE

92037-010

$3.12

44

PIPE

92059-065

$34.99

45

CAP-CARBURETOR

14038-027

Unavailable

46

CONNECTOR-BANJO

92061-019

$3.68
