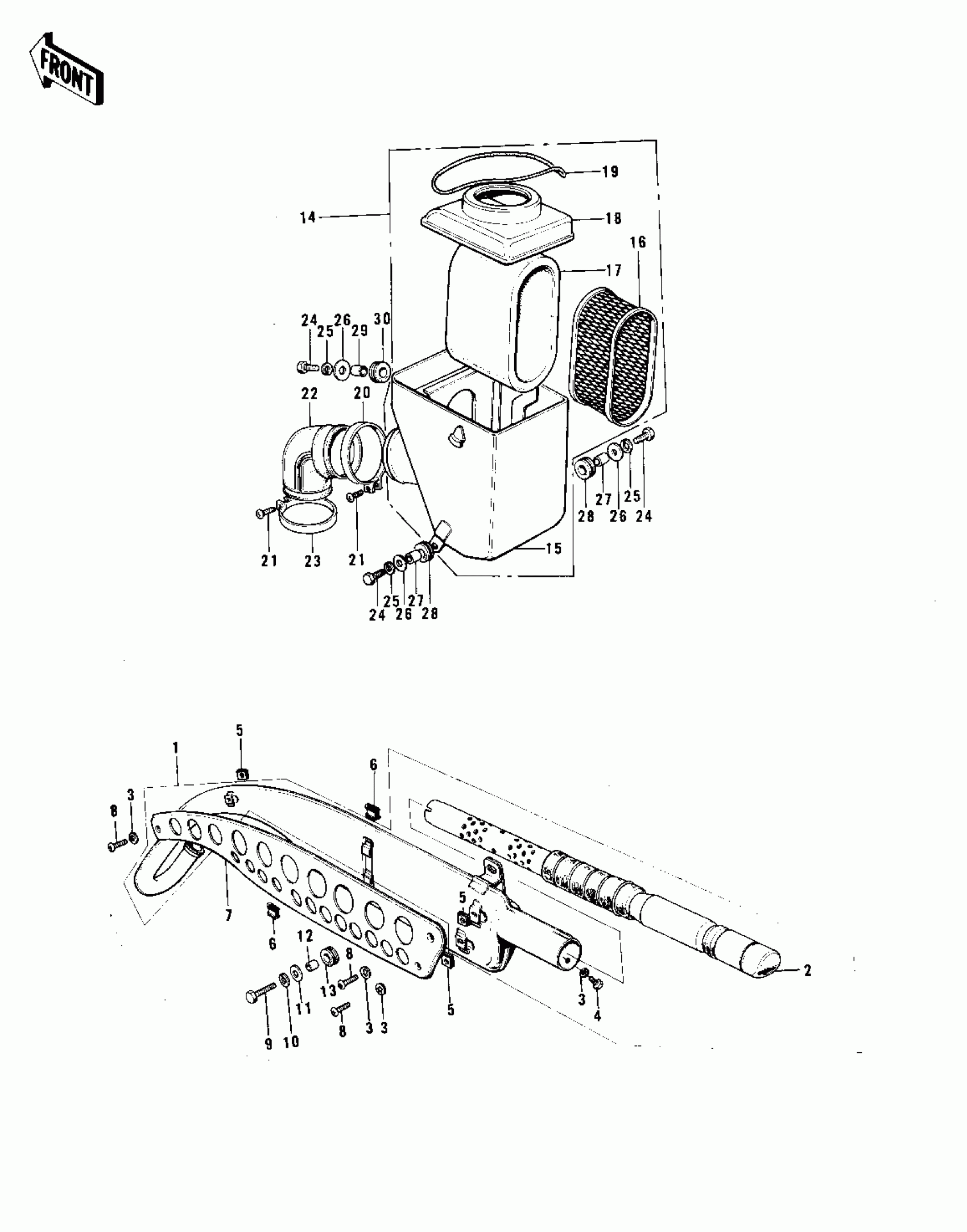

Kawasaki F7-D AIR CLEANER/MUFFLER ('74-'75 F7-C/F6-D) Diagram

#

Description
Price

1

MUFFLER ASSY

18001-106

$168.92

2

BAFFLE TUBE

18033-073

Unavailable

3

WASHER LOCK 6MM

463H0600

Unavailable

4

BOLT-UPSET,6X12

112G0612

Unavailable

5

INSULATOR-HEAT

18065-009

Unavailable

6

INSULATOR

18065-007

Unavailable

7

COVER-MUFFLER

18064-005

$37.47

8

SCREW PAN HEAD 6X12

220E0612

$4.08

9

BOLT HEX HEAD 8X28

114G0828

Unavailable

10

WASHER SPRING 8MM

461F0800

Unavailable

11

WASHER,8X26X2.3

92022-1564

$3.43

12

COLLAR

92027-102

$1.00

13

DAMPER RUBBER-MUFFLER

18063-005

Unavailable

14

AIR CLEANER ASSY

11010-061

Unavailable

15

BODY-AIR CLEANER

11011-024

Unavailable

16

HOLDER-CLENER ELEM

11014-007

Unavailable

17

ELEMENT,AIR,CLNR

11013-036

Unavailable

18

CAP-AIR CLEANER,BL

11012-028

Unavailable

19

"0" RING,100MM

671B25100

Unavailable

20

CLAMP,AIR CLEANER

92037-129

$15.76

21

SCREW-PAN-CROS,6X35,B

220C0635

$4.75

22

CONNECTOR

11026-003

Unavailable

23

CLAMP,AIR CLEANER

92037-128

Unavailable

24

BOLT-UPSET

112G0625

Unavailable

25

WASHER SPRING 6MM

461F0600

Unavailable

26

WASHER,6.5X20X1.6

92022-125

$1.25

27

COLLAR 6.8X10X10.5

92027-120

$3.97

28

GROMMET

92071-046

Unavailable

29

COLLAR

92027-103

$2.78

30

DAMPER RUBBER

92075-051

$2.34
