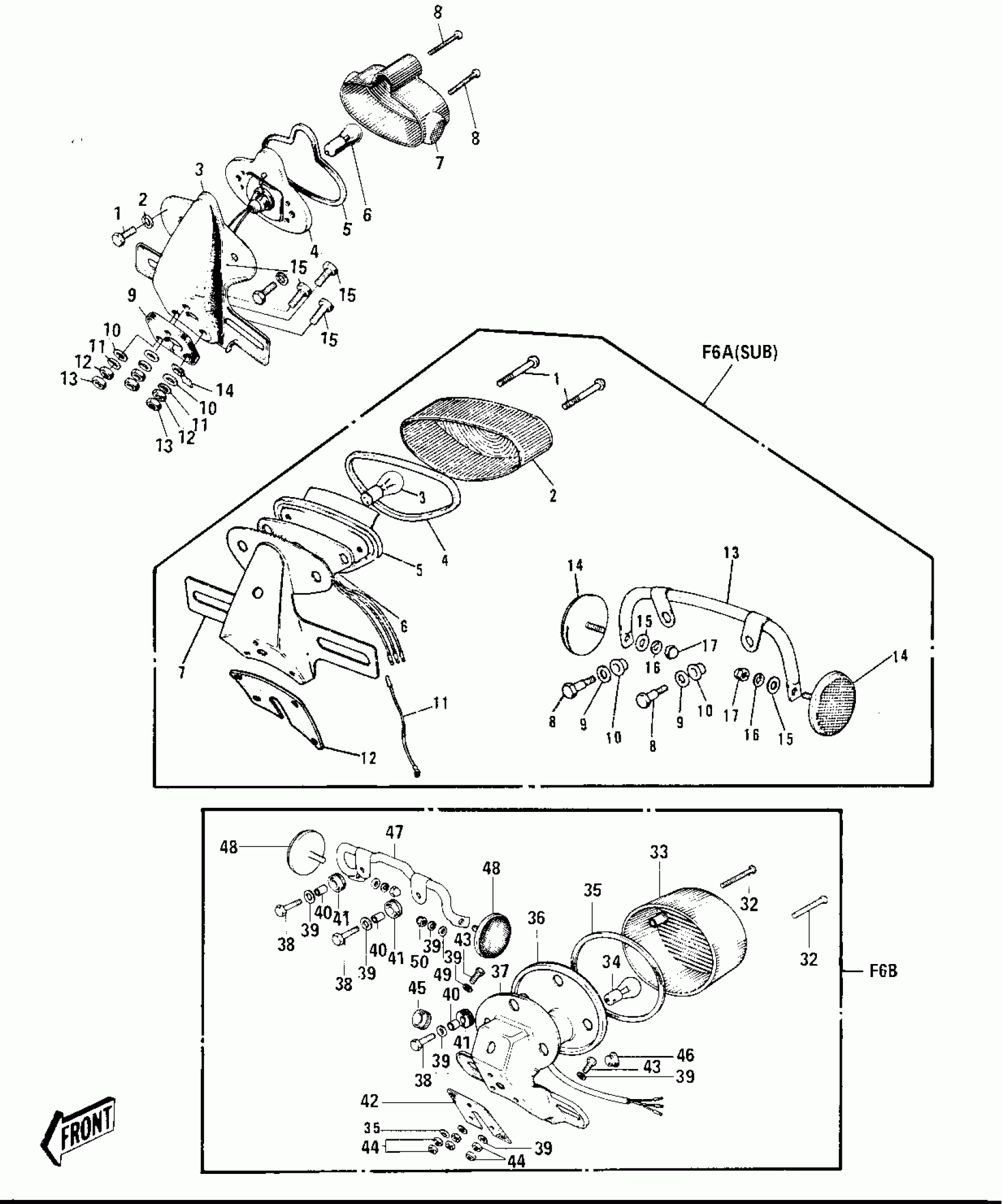

Kawasaki F6-B TAILLIGHT Diagram
#
1 ~ 8
LAMP ASSY-TAIL,BLACK
23024-019-21
Unavailable
1
BOLT HEX HEAD 5X10
110N0510
Unavailable
2
WASHER SPRING 5MM
461F0500
Unavailable
4
SOCKET TAIL LAMP
23027-009
Unavailable
5
GASKET TAIL LAMP
23028-008
Unavailable
6
BULB 6V 3/21CP
92069-023
Unavailable
7
LENS TAIL LAMP
23026-010
Unavailable
8
SCREW PAN HEAD 4X50
220E0450
Unavailable
9
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
NUT 6MM
311B0600
Unavailable
13
NUT 6MM
312B0600
Unavailable
14
CLIP WIRING HARNESS
35024-002
Unavailable
15
BOLT-UPSET,6X35
112G0635
Unavailable
16 ~ 2
LAMP ASSY-TAIL,BLACK
23024-019-21
Unavailable
17
LENS-TAIL LAMP
23026-022
Unavailable
18
BULB 6V 3/21CP
92069-023
Unavailable
19
UNAVAILABLE IN PRICE BOOK
23038-016
Unavailable
20, 21
CASE-TAIL LAMP
23027-029
Unavailable
21
GASKET-TAIL LAMP CASE
23028-015
Unavailable
22
BKT-LICENSE PLT,BLACK
23036-014-21
Unavailable
25
DAMPER RUBBER
92075-091
Unavailable
27
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
28
BRACKET-REFLECTOR
28013-002
Unavailable
29
REFLECTOR-REFLEX,REAR
28012-008
Unavailable
30
WASHER-PLAIN,5MM
411B0500
Unavailable
31
NUT-CAP,5MM
322N0500
Unavailable
32
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
33
LENS-TAIL LAMP
23026-023
Unavailable
34
BULB,6V 17/5.3W
92069-028
Unavailable
35
GASKET-TAIL LAMP LENS
23028-018
Unavailable
36
CASE,TAIL LAMP
23027-030
Unavailable
38
BOLT-UPSET,6X20
112G0620
Unavailable
42
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
43
BOLT-UPSET
112G0625
Unavailable
44
NUT 6MM
312B0600
Unavailable
49
WASHER-PLAIN,5MM
411B0500
Unavailable
