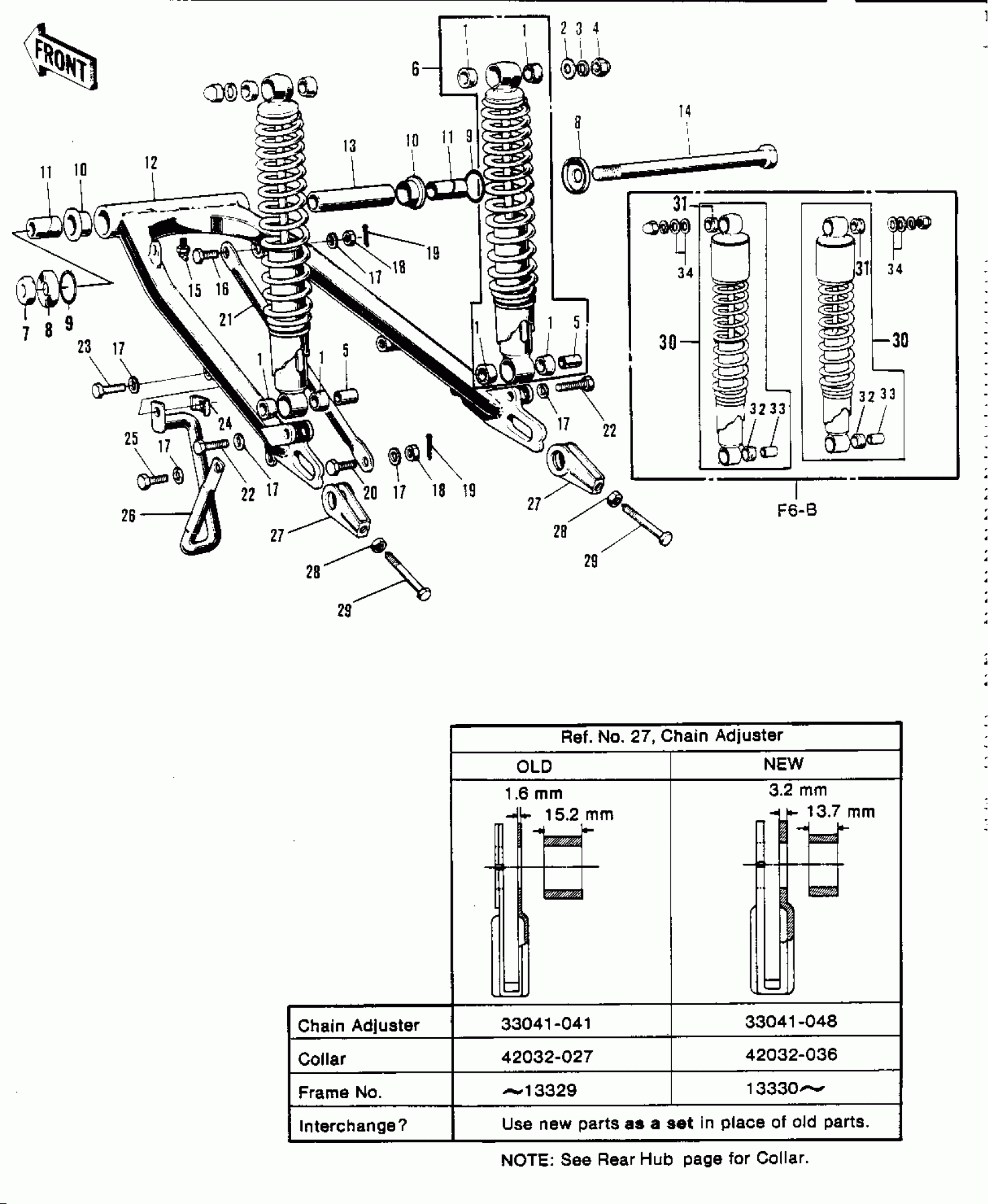

Kawasaki F6-B SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

BUSH-SHOCK ABSORBER

45017-005

Unavailable

2

WASHER,10.5X26X2.3

92022-044

$3.12

3

WASHER SPRING 10MM

461F1000

Unavailable

4

NUT,CAP,10MM

92020-003

$5.16

5

COLLAR,SHOCKABSORBER

45016-003

$15.05

6

SHOCK ABSORBER-REAR

45014-058

Unavailable

6

SHOCK ABSBR RR

45014-070

$101.31

7

NUT-LOCK,12MM

92019-009

$7.20

8

CAP-SWINGING ARM

33035-005

Unavailable

9

"0" RING,30MM

671B2530

$4.01

10

BUSHING-SWING ARM

33033-009

$103.86

11

SLEEVE-SWINGING ARM

33034-016

$21.36

12

ARM-SWING

33001-035

$111.33

13

COLLAR SWING ARM

33036-002

Unavailable

14

SHAFT-SWING ARM PIVOT

33032-029

Unavailable

15

GREASE NIPPLE

92005-002

Unavailable

16

BOLT,10X25

92003-017

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable

18

NUT-HEX-FINE,10MM

314B1000

Unavailable

19

PIN COTTER 2.0X15

550D2015

Unavailable

20

BOLT,10X32

92003-003

$5.42

21

TORQUE LINK REAR BRK

43007-018

Unavailable

22

BOLT HEX HEAD 10X35

113N1035

Unavailable

23

BOLT,HEX HEAD,10X50

92001-1254

Unavailable

24

NUT-CHAIN GUARD FIT

92017-009

$1.10

25

BOLT,HEX HEAD,10X18

113G1018

Unavailable

26

GUARD-CHAIN

55020-005

$18.34

27

COLLAR-REAR HUB

42032-027

$11.69

27

COLLAR-REAR HUB

42032-027

$11.69

27

COLLAR-REAR AXLE

42032-036

$16.71

27

COLLAR-REAR AXLE

42032-036

$16.71

28

NUT 8MM

312B0800

Unavailable

29

BOLT,8X50

92001-1399

$7.52

29

BOLT,8X50

92001-1399

$7.52

30

SHOCK ABSBR RR

45014-075

$189.20

31

BUSHING,SHCK ABS RUB

45017-018

Unavailable

32

DAMPER,SHOCKABSORBER

92075-1020

$4.34

32

DAMPER,SHOCKABSORBER

92075-1020

$4.34

33

COLLAR,SHOCKABSORBER

45016-003

$15.05

34

WASHER,10.5X26X2.3

92022-044

$3.12
