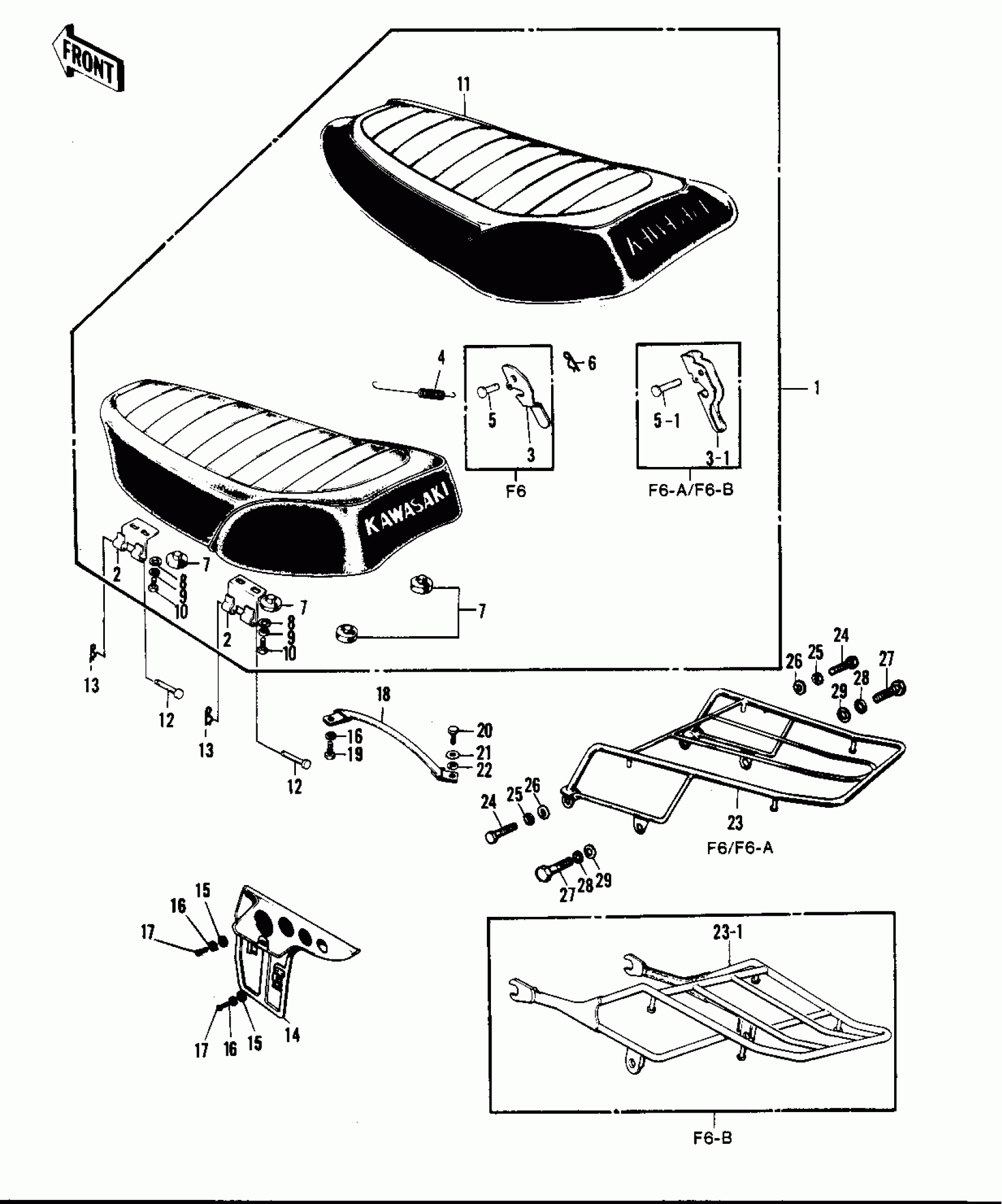

Kawasaki F6-B SEAT/CARRIER/CHAIN COVER Diagram

#

Description
Price

1

SEAT-DUAL

53002-021

$156.27

1

SEAT ASSY-DUAL

53002-043

$187.73

2

HINGE

53009-015

Unavailable

3

HOOK

53008-008

$2.41

3-1

HOOK

53008-012

$2.49

4

SPRING,HOOK

53012-013

Unavailable

5

PIN DUAL SEAT PIVOT

53011-001

$4.92

5-1

PIN-DUAL SEAT PIVOT

53011-004

$0.73

6

COTTER PIN

92041-003

$4.53

7

DAMPER,DUAL SEAT

92075-023

$3.90

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

BOLT-UPSET 6X14

112B0614

Unavailable

11

COVER-DUAL SEAT

53003-006

Unavailable

12

PIN,6X48

53011-002

$4.72

13

COTTER PIN

92041-003

$4.53

14

CASE-CHAIN,BLACK

36014-035-21

$37.58

15

WASHER PLAIN 6MM

411B0600

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

SCREW PAN HEAD 6X12

220B0612

Unavailable

18

BAND-SEAT STOPPER

92072-038

Unavailable

18

BAND-SEAT STOPPER

92072-038

Unavailable

19

BOLT,6X10

112G0610

Unavailable

20

BOLT-UPSET,6X12

112G0612

Unavailable

21

WASHER LOCK 6MM

464H0600

Unavailable

22

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

23

CARRIER-LUGGAGE

53029-038

Unavailable

23-1

CARRIER-LUGGAGE

53029-045

$96.97

24

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

25

WASHER SPRING 8MM

461F0800

Unavailable

26

WASHER PLAIN 8MM

410B0800

Unavailable

27

BOLT,HEX HEAD,10X18

113G1018

Unavailable

27

BOLT,10X28

113G1028

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable

29

WASHER PLAIN 10MM

410B1000

Unavailable
