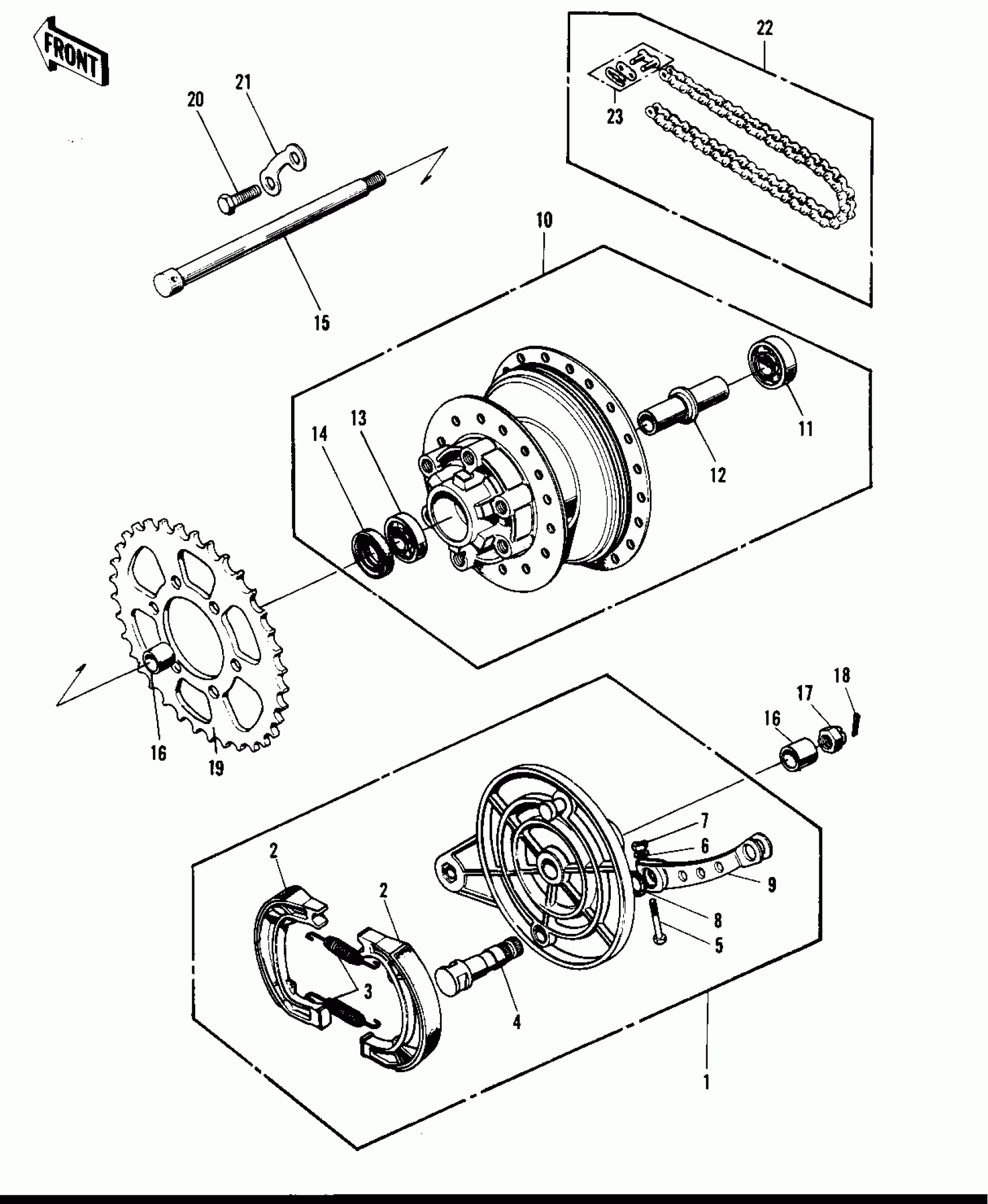

Kawasaki F6-B REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

PANEL-ASY,RR BRK

42006-018

$131.17

1

PANEL-ASY,RR BRK,BLK

42006-028-21

$125.91

2

SHOE,BRAKE

41048-1007

$27.04

2

SHOE,BRAKE

41048-1007

$27.04

3

SPRING,BRAKE SHOE

92081-1766

$6.39

4

CAM-BRAKE

41050-018

$21.98

5

BOLT-UPSET

112G0630

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

7

NUT 6MM

311B0600

Unavailable

8

RING-O,BRAKE CAM

92055-004

$4.25

9

LEVER-REAR BRAKE CAM

42029-015

$38.56

9

LEVER-REAR BRAKE CAM

42029-023

$17.00

10

DRUM ASSY-REAR BRAKE

42005-024

$133.19

10

DRUM ASSY-REAR BRAKE

42005-029

$269.60

11

BEARING BALL #6302Z

601B6302Z

$25.71

12

SPACER-RR HUB BEARING

42010-019

$16.49

13

BEARING-BALL,#6302C3

601B6302

$8.80

14

OIL SEAL RR BRK DRUM

92050-009

Unavailable

15

AXLE-REAR

42031-037

$44.42

15

AXLE-REAR

42031-037

$44.42

16

COLLAR-REAR HUB

42032-027

$11.69

16

COLLAR-REAR AXLE

42032-036

$16.71

17

NUT CASTLE 14MM

321B1400

Unavailable

18

PIN-COTTER,3.0X30

550D3030

$2.08

19

SPROCKET-REAR,55T

42041-094

Unavailable

19

REAR SPROCKET 50T

42041-085

$98.10

20

BOLT-HEX HEAD,10X25

92001-087

Unavailable

21

WASHER LOCK

92088-007

$12.61

22

UNAVAILABLE IN PRICE BOOK

695Z43118

$100.54

22

DR CHAIN 428X118H

92057-030

$100.54

23

JOINT-CHAIN

92058-1015

Unavailable
