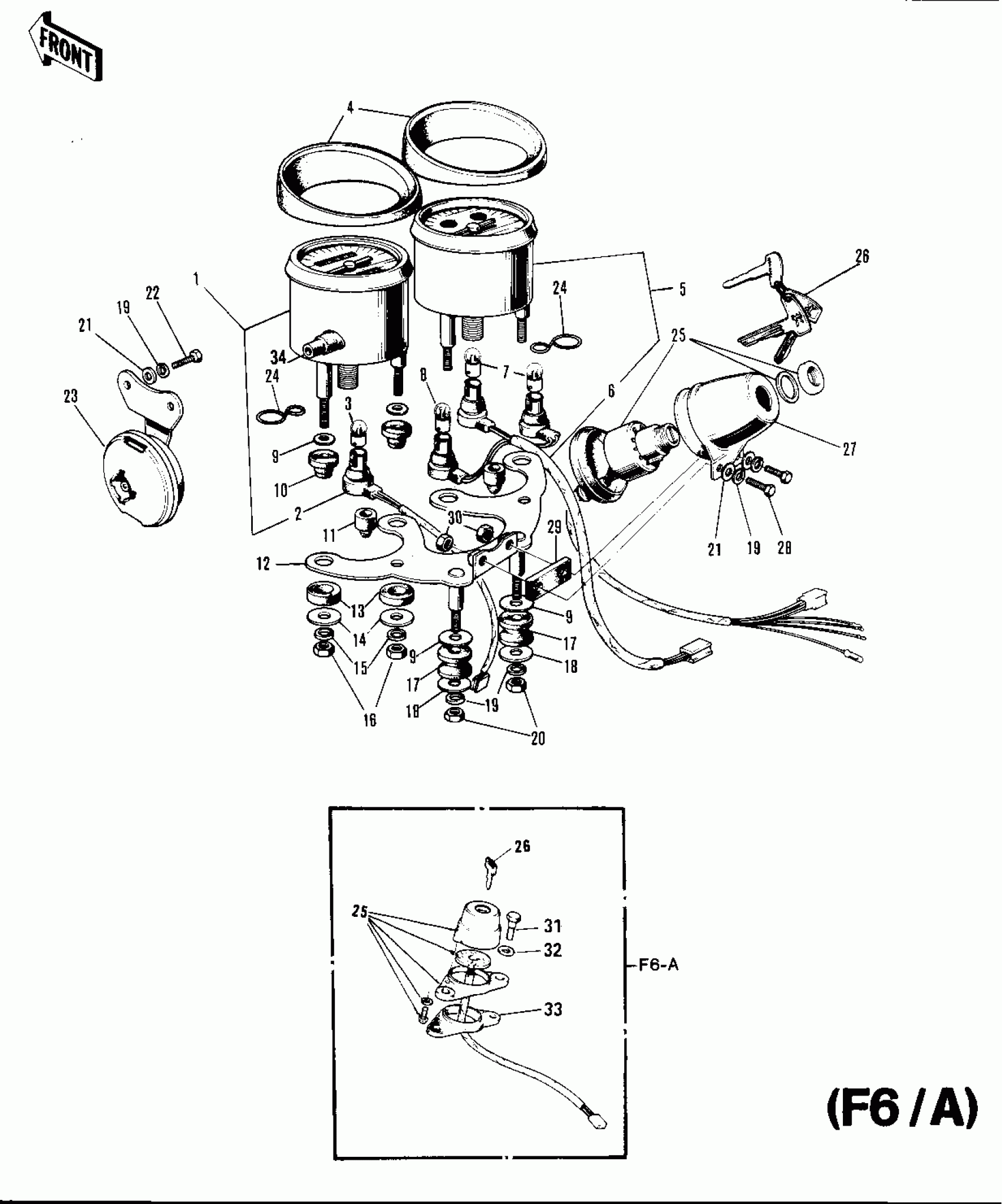

Kawasaki F6-B METERS (F6/A) Diagram

#

Description
Price

1 ~ 4

SPEEDOMETER ASSY,MPH

25001-045

$224.63

1 ~ 4

UNAVAILABLE IN PRICE BOOK

25001-032

Unavailable

2

SOCKET-SPEEDOMETER

25011-015

Unavailable

3

BULB,6V 3W,CLEAR

92069-053

$3.33

4

COVER-SPEEDOMETER

25012-003

$21.14

4 ~ 8

TACHOMETER ASSY

25015-019

$99.92

6

SOCKET-TACHOMETER

25011-028

Unavailable

7

BULB,6V 3W,CLEAR

92069-053

$3.33

8

BULB,6V 1.7W

92069-024

$3.80

9

WASHER PLAIN 8MM

411B0800

Unavailable

10

DAMPER RUBBER

92075-065

Unavailable

11

DAMPER

92075-035

$3.65

12

BRACKET-SPEEDOMETER

25008-013

$21.95

12

BRACKET METER

25008-015

$21.98

13

DAMPER RUBBER

92075-066

Unavailable

14

WASHER,5.5X20X1.2

92022-104

$3.43

15

WASHER SPRING 5MM

461F0500

Unavailable

16

NUT-HEX

311B0500

$0.51

17

DAMPER

92075-024

$3.49

18

WASHER,6.5X20X1.6

92022-125

$1.25

19

WASHER SPRING 6MM

461F0600

Unavailable

20

NUT 6MM

311B0600

Unavailable

21

WASHER PLAIN 6MM

411B0600

Unavailable

22

BOLT-UPSET

112G0618

Unavailable

23

HORN

27003-062

Unavailable

23

HORN

27003-062

Unavailable

24

CLAMP CABLE

25022-002

Unavailable

25, 26

SWITCH ASSY-IGNITION

27005-035

Unavailable

25, 26

SWITCH ASSY,IGNITION

27005-068

Unavailable

26

KEY SET NO.150

27008-041-50

$8.22

26

KEY SET NO.151

27008-041-51

$9.34

26

KEY SET NO.152

27008-041-52

$9.34

26

KEY SET NO.153

27008-041-53

$9.02

26

KEY SET NO.154

27008-041-54

$8.93

26

KEY SET,#155

27008-042-55

$9.19

26

KEY SET,#156

27008-042-56

$9.14

26

KEY SET,#157

27008-042-57

$9.19

26

KEY SET,#158

27008-042-58

$9.49

26

KEY SET,#159

27008-042-59

$8.36

26

KEY SET,#160

27008-043-60

$6.10

26

KEY SET,#161

27008-043-61

$8.37

26

KEY SET,#162

27008-043-62

$8.37

26

KEY SET,#163

27008-043-63

$8.37

26

KEY SET,#164

27008-043-64

$6.10

27

HOUSING-IGNITION SW

27009-009

$12.17

28

BOLT-HEX HEAD,6MM

92003-069

Unavailable

28

BOLT 6X22

112B0622

Unavailable

29

DAMPER-RUBBER

92075-072

Unavailable

30

NUT 6MM

312B0600

Unavailable

31

BOLT-HEX HEAD,6MM

92007-026

Unavailable

32

WASHER PLAIN 8MM

410B0800

Unavailable

33

DAMPER RUBBER

92075-077

$8.83

34

KNOB,SPEEDOMETER TRIP

25024-002

Unavailable
