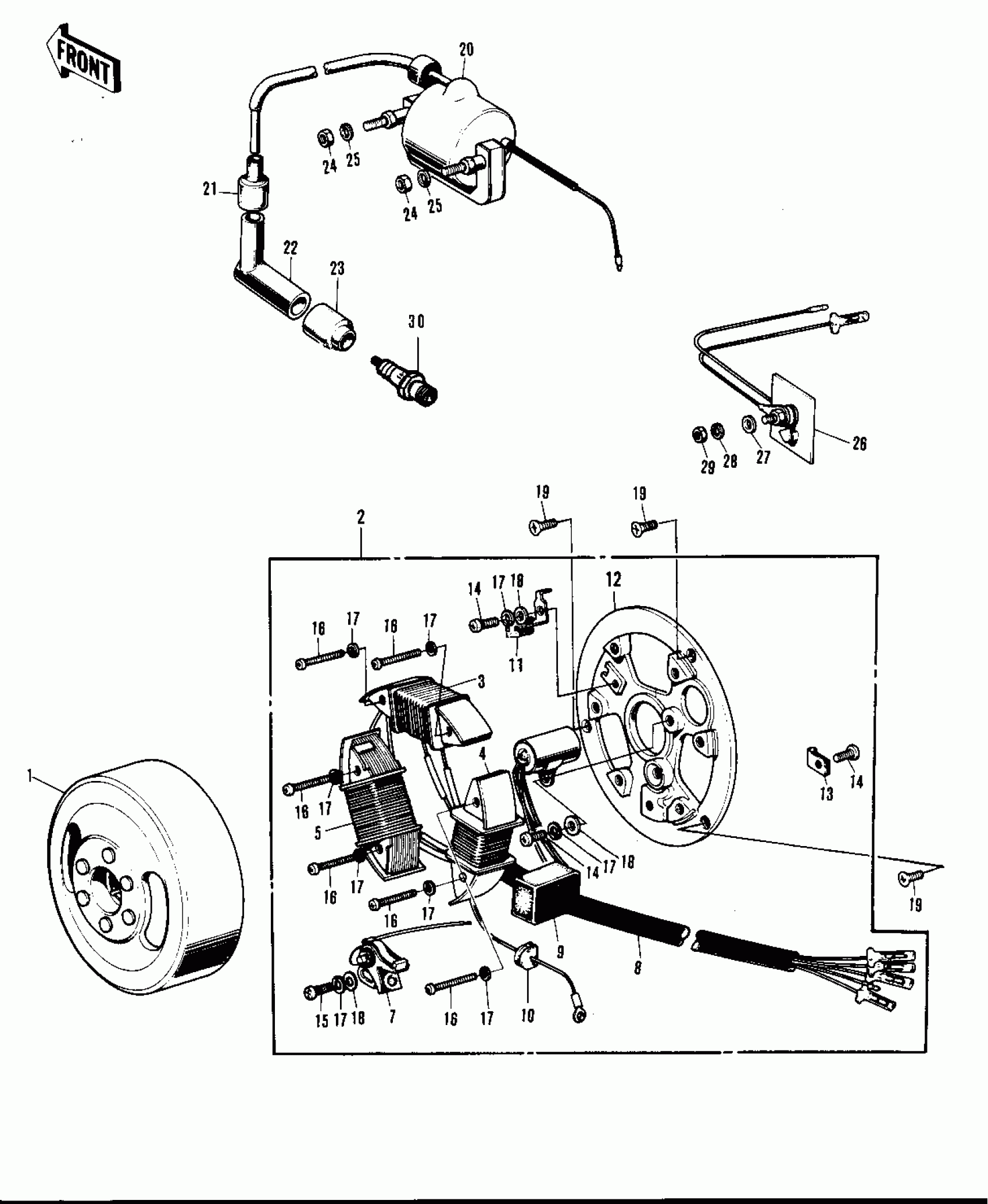

Kawasaki F6-B IGNITION/GENERATOR/RECTIFIER Diagram

#

Description
Price

1

FLYWHEEL

21050-012

$268.06

2

STATOR

21003-013

$186.35

3

COIL-LIGHTING,B

21047-016

$64.49

4

COIL-LIGHTING,A

21047-015

$77.50

5

COIL-PRIMARY

21049-013

$52.19

6

CONDENSER

21013-023

$14.25

7

BREAKER ASSY-CONTACT

21008-018

Unavailable

8

WIRING HARNESS-MAGNT

21029-018

$21.53

9

GROMMET-WIRING HARN

92071-050

$7.03

10

GROMMET WIRING HARN C

21017-005

Unavailable

11

BRUSH,OIL

21019-005

Unavailable

12

BASE-MAGNETO

21048-011

$34.46

13

CLAMP,WIRING HARNESS

21037-002

Unavailable

14

SCREW PAN HEAD 4X8

220B0408

Unavailable

15

SCREW-PAN-CRSOSS,4X1

220B0412

$0.26

16

SCREW PAN HEAD 4X25

220B0425

Unavailable

17

WASHER SPRING 4MM

461F0400

Unavailable

18

WASHER PLAIN 4MM

410B0400

Unavailable

19

SCREW-CNTSNK HD,5X20

221B0520A

Unavailable

20

COIL-IGNITION

21121-043

$207.48

21

GROMMET,HIGH TENSION

21132-005

$3.39

22

CAP-SPARK PLUG

21130-016

$24.07

23

GROMMET,PLUG CAP

21131-004

$10.81

24

NUT 6MM

311B0600

Unavailable

25

WASHER SPRING 6MM

461F0600

Unavailable

26

RECTIFIER

21061-5001

$30.29

26

RECTIFIER

21061-5001

$30.29

27

WASHER LOCK 5MM

464H0500

Unavailable

28

WASHER SPRING 5MM

461F0500

Unavailable

29

NUT-HEX

311B0500

$0.51

30

UNAVAILABLE IN PRICE BOOK

92070-010A

Unavailable

30

SPARK PLUG B8HS

B8HS

$3.66
