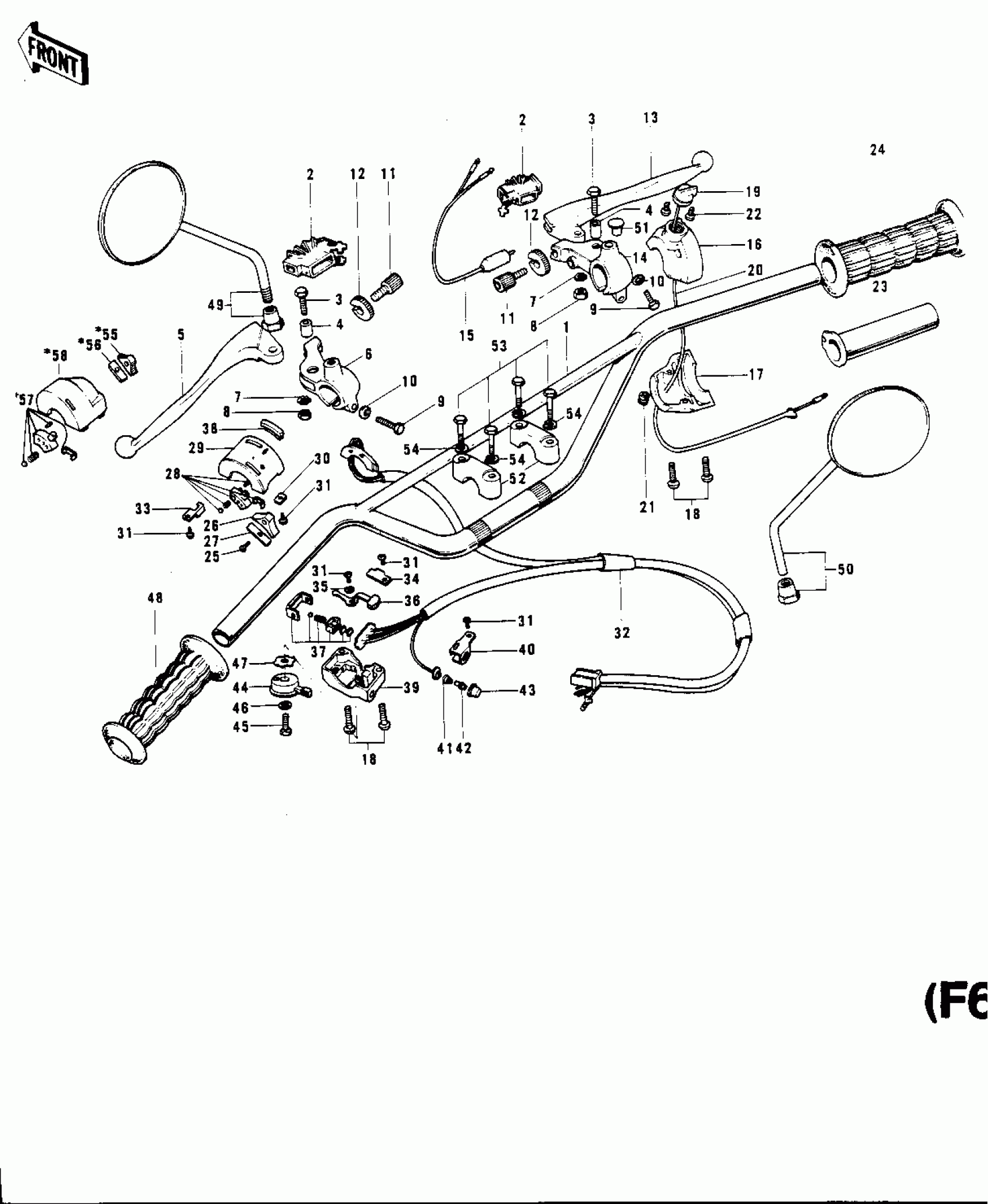

Kawasaki F6-B HANDLEBAR (F6-B) Diagram

#

Description
Price

1

HANDLEBAR

46004-016

Unavailable

2

DUST COVER

46071-002

Unavailable

3

BOLT HEX HEAD 5X20

92007-020

Unavailable

4

COLLAR LEVER

46059-011

Unavailable

5

LEVER-GRIP,CLUTCH

46092-015

$19.69

6

HOLDER,F.BLACK

46094-011-21

$36.50

7

WASHER LOCK 5MM

464H0500

Unavailable

8

NUT-HEX,5MM

312B0500

Unavailable

9

BOLT HEX HEAD 6X25

110N0625

Unavailable

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

11

SCREW,CABLE ADJUST

46055-010

$29.42

12

NUT,CABLE ADJUST LOCK,8MM

46056-005

$7.04

13

LEVER-GRIP,FRONT BRAKE

46058-004

$22.90

14

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

Unavailable

15

SWITCH,FR BRAKE LAMP

27021-004

Unavailable

16 ~ 2

CASE ASSY,R.H,BLACK

46018-020-10

Unavailable

16

CASE-RH UPPER

46041-008

$27.29

17

CASE-RH LOWER

46023-008

$23.59

18

SCREW-PAN-CROS,5X25

220B0525

$3.24

19

SWITCH-ENGINE STOP

46027-008

Unavailable

20

WIRING HARNESS-STP SW

46082-021

$3.98

21

GROMMET-WIRING HARNES

92071-060

Unavailable

22

SCREW PAN HEAD 3X5

220B0305A

$0.63

23, 24

GRIP ASSY-THROTTLE

46019-020

Unavailable

24

RUBBER-R.H. GRIP

46061-013

Unavailable

18,25

CASE ASSY-L.H.

46091-007

Unavailable

25

UNAVAILABLE IN PRICE BOOK

221B308A

Unavailable

26

KNOB-LH SWITCH

46044-009

Unavailable

27

SPRING-L.H SW KNOB,B

46031-006

Unavailable

28

SWITCH-L.H.

46089-008

$9.10

29

HOLDER L.H SW LOWER

46085-015

$1.17

30

HOLDER-L.H SW UPPER,B

46085-019

$0.90

31

SCREW PAN HEAD 3X5

220B0305A

$0.63

32

WIRING HARNESS-LH SW

46082-020

Unavailable

33

HOLDER-LH SW UPPER,A

46085-020

$2.05

34

HOLDER-L.H SW LOWER,A

46085-016

$3.24

35

WASHER

92095-010

Unavailable

36

KNOB-SWITCH

46044-010

Unavailable

37

SLIDE BLOCK AY-L.H SW

46089-007

$15.00

38

CAP-L.H. SWITCH

46089-009

Unavailable

39

CASE-L.H. LOWER

46077-017

$11.27

40

HOLDER-L.H SW LOWER,B

46085-017

$1.10

41

SWITCH,PUSH BUTTON

27010-1009

$7.31

42

SWITCH,PUSH BUTTON

27010-1009

$7.31

43

SWITCH,PUSH BUTTON

27010-1009

$7.31

44

LEVER STARTER

46096-008-10

$23.59

45

BOLT-UPSET,6X8

112B0608

Unavailable

46

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

47

WASHER LOCK

92095-012

Unavailable

48

RUBBER-L.H.GRIP

46075-018

Unavailable

49

MIRROR-ASSY,LH

56003-009

$61.57

50

MIRROR-ASSY,RH

56002-020

$68.40

51

CAP-RR VIEW MIRROR

92102-009

Unavailable

52

HOLDER-HANDLE,UPP

46012-008

$34.49

53

BOLT 8X38

92001-1405

$13.05

54

WASHER SPRING 8MM

461F0800

Unavailable

54

CASE ASSY,L.H

46091-019

Unavailable

55

KNOB-L.H SWITCH

46044-011

Unavailable

56

SPRING L.H SW KNOB

46031-003

Unavailable

57

SWITCH ASSY,L.H

46089-012

Unavailable

58

CASE-L.H UPPER,BLACK

46086-016-21

Unavailable
