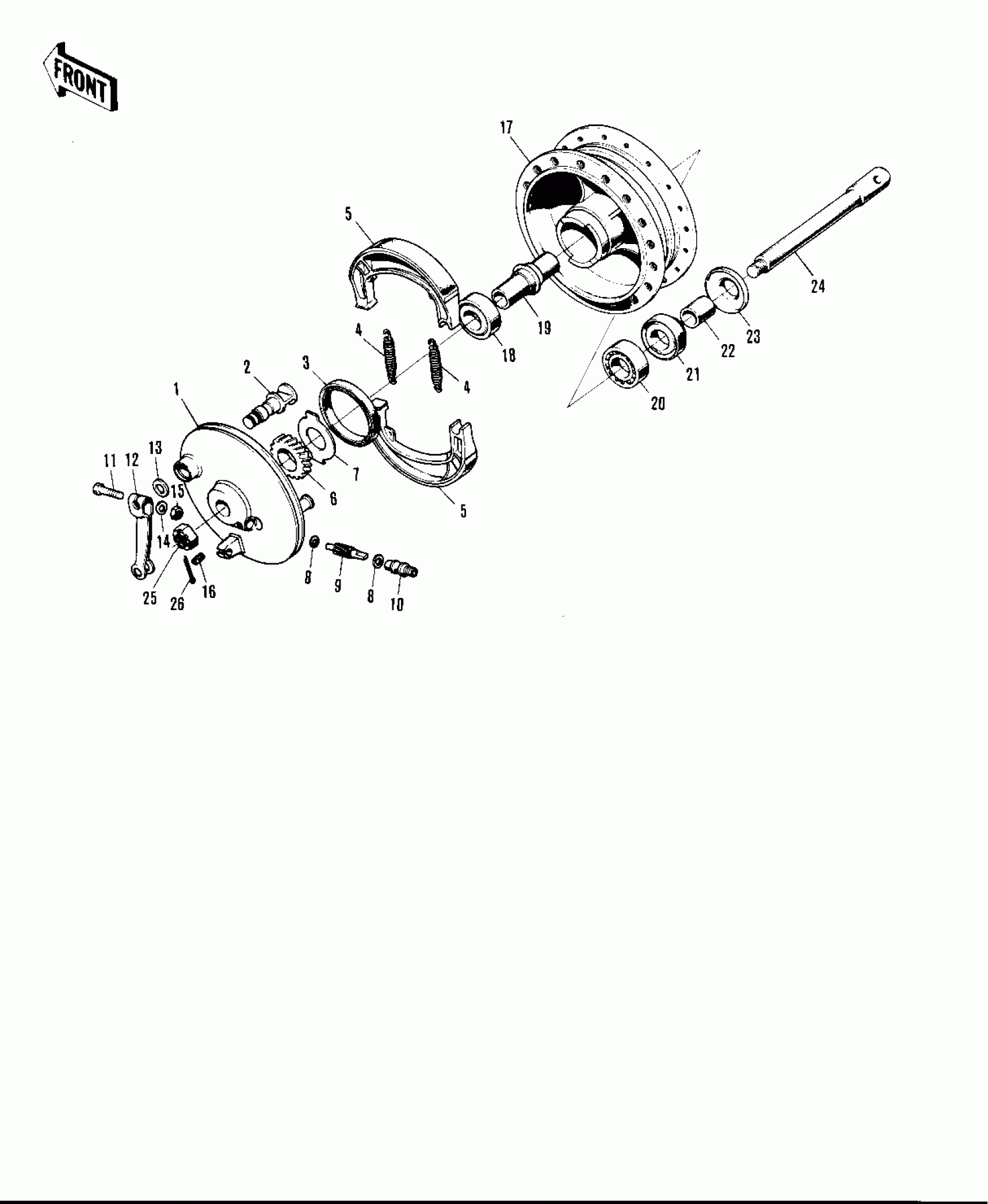

Kawasaki F6-B FRONT HUB/BRAKE Diagram

#

Description
Price

1-16

PANEL-ASY,FR BRK BLK

41035-033-21

$165.01

1-16

PANEL-ASY,FR BRK BLK

41035-033-21

$165.01

2

CAM-BRAKE

41050-018

$21.98

3

OIL SEAL F BRK PANEL

92050-010

$20.51

4

SPRING,BRAKE SHOE

92081-1766

$6.39

5

SHOE,BRAKE

41048-1007

$27.04

6

GEAR-SPEEDOMETER

41059-014

$17.88

7

RECIEVER-SPEED GEAR

41064-006

$8.46

8

WASHER,5.1X9X0.4

41063-001

$4.17

9

GEAR-METER SCREW,8T

41060-004

$20.37

10

BUSH SPEEDMETER CABLE

41062-001

$10.00

11

BOLT-UPSET

112G0630

Unavailable

12

LEVER-BRAKE CAM

41053-005

$12.24

13

WASHER BRAKE CAM SHT

41052-001

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

15

NUT 6MM

311B0600

Unavailable

16

SCREW-BUSHING NET

41070-004

$0.76

16

SCREW-BUSHING NET

41070-004

$0.76

16

PIN,SPRING

41082-001

$3.53

17-21

DRUM-ASSY,FR BRK

41034-004

$81.51

18

BEARING BALL #6301Z

601B6301Z

Unavailable

19

SPACER FR HUB BEARING

41039-005

$12.00

20

BEARING BALL #6301

601B6301

Unavailable

21

OIL SEAL FR BRK DRUM

92050-011

$13.56

22

COLLAR FRONT HUB R.H

41069-005

$10.39

23

DUST SHIELD FR BRAKE

41042-006

$9.37

24

AXLE-FRONT

41068-034

$17.81

25

NUT CASTLE 12MM

321B1200

$3.07

26

PIN-COTTER,3.0X25

550D3025

Unavailable
