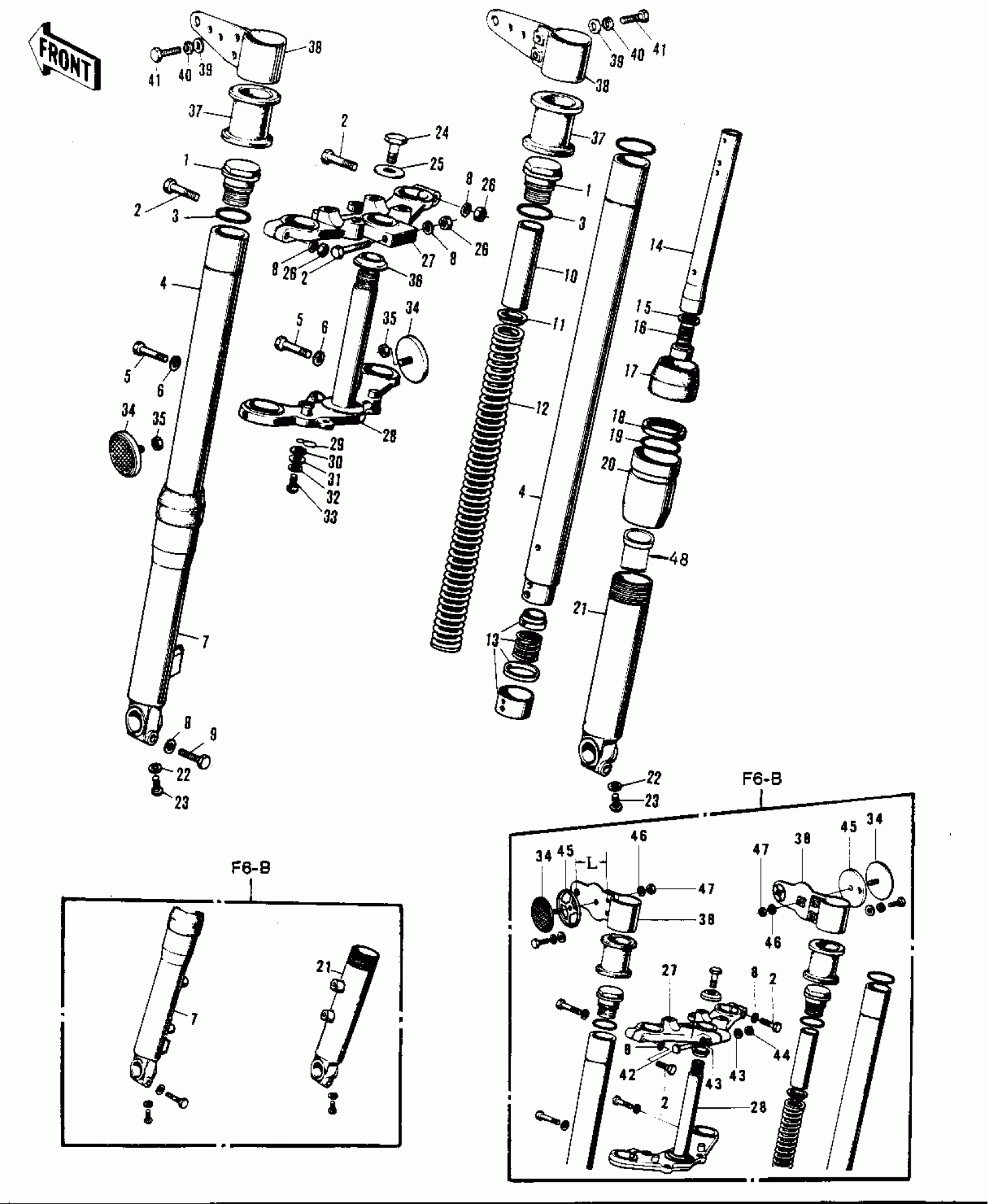

Kawasaki F6-B FRONT FORK Diagram

#

Description
Price

1-28

FRONT FORK ASSY

44001-069

$419.29

1-28

FORK-FRONT

44001-086

$603.66

1-28

FORK-FRONT

44001-101

$601.41

1

BOLT-FORK TOP

44041-036

$15.83

2

BOLT

92001-1578

$6.81

2

BOLT-STEERING STEM HD

44041-044

Unavailable

3

'O' RING INNER TUBE

44046-014

Unavailable

4

TUBE-FORK INNER

44013-028

$126.32

5

BOLT HEX HEAD 10X32

113B1032

Unavailable

6

WASHER SPRING 10MM

461F1000

Unavailable

7

TUBE,LH,FORK OUTER

44005-037

$115.22

8

WASHER SPRING 8MM

461F0800

Unavailable

8

WASHER SPRING 8MM

461F0800

Unavailable

9

BOLT HEX HEAD 8X25

116B0825

Unavailable

10

UNAVAILABLE IN PRICE BOOK

44028-106

Unavailable

11

GUIDE FORK SPRING

44029-012

Unavailable

12

SPRING-FORK

44026-036

$18.14

13&14

CYLINDER-FORK

44022-006

$46.12

15

GASKET FORK CYL BOLT

44045-030

Unavailable

16

BOLT FORK CYLINDER

44041-027

$4.83

17

DUST SHIELD FORK

44010-006

Unavailable

18

OIL SEAL

92049-1049

$19.65

19

'O' RING OUTER TUBE

44046-012

Unavailable

20

NUT FORK OUTER TUBE

44007-007

$59.80

21

TUBE,RH,FORK OUTER

44006-035

$131.37

22

GASKET,FORK DRAIN PLUG

44045-002

$4.12

23

SCREW PAN HEAD 4X8

220B0408

Unavailable

24

BOLT STRNG STEM HEAD

44041-007

Unavailable

25

WASHER STRNG STEM HD

44043-016

$10.56

26

NUT,8MM

311B0800

Unavailable

27

HEAD-STEERING STEM

44039-035

$150.14

27

HEAD-STEERING STEM

44039-049

$140.45

28

STEM-STEERING

44037-035

$125.95

28

STEM-STEERING

44037-039

$131.81

28

STEM-STEERING

44037-054

$163.77

29

CLAMP,CABLE

92037-046

$4.41

30

WASHER LOCK 6MM

464H0600

Unavailable

31

WASHER PLAIN 6MM

411B0600

Unavailable

32

WASHER SPRING 6MM

461F0600

Unavailable

33

BOLT,6X10

112G0610

Unavailable

34

REFLECTOR REFLEX

28001-007

Unavailable

34

REFLECTOR-REFLEX,FRNT

28012-006

Unavailable

35

NUT-HEX

311B0500

$0.51

36

RACE,LOWER BEARING

92047-004

Unavailable

37

DAMPER RUBBER

92075-064

Unavailable

38

BRACKET-HEAD LAMP,BRK

23064-004-21

$8.07

38

BRACKET-HEAD LAMP,BLK

23064-012-21

$8.17

39

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

40

WASHER SPRING 6MM

461F0600

Unavailable

41

BOLT-UPSET

112G0618

Unavailable

42

BOLT-STEERING STEM HD

44041-042

Unavailable

43

WASHER PLAIN 8MM

410B0800

Unavailable

44

NUT,LOCK,8MM

92015-1124

$4.30

45

DAMPER RUBBER

92075-137

Unavailable

46

WASHER SPRING 5MM

461F0500

Unavailable

47

NUT-HEX

311B0500

$0.51

48

GUIDE FORK INNER TUBE

44015-012

$8.90
