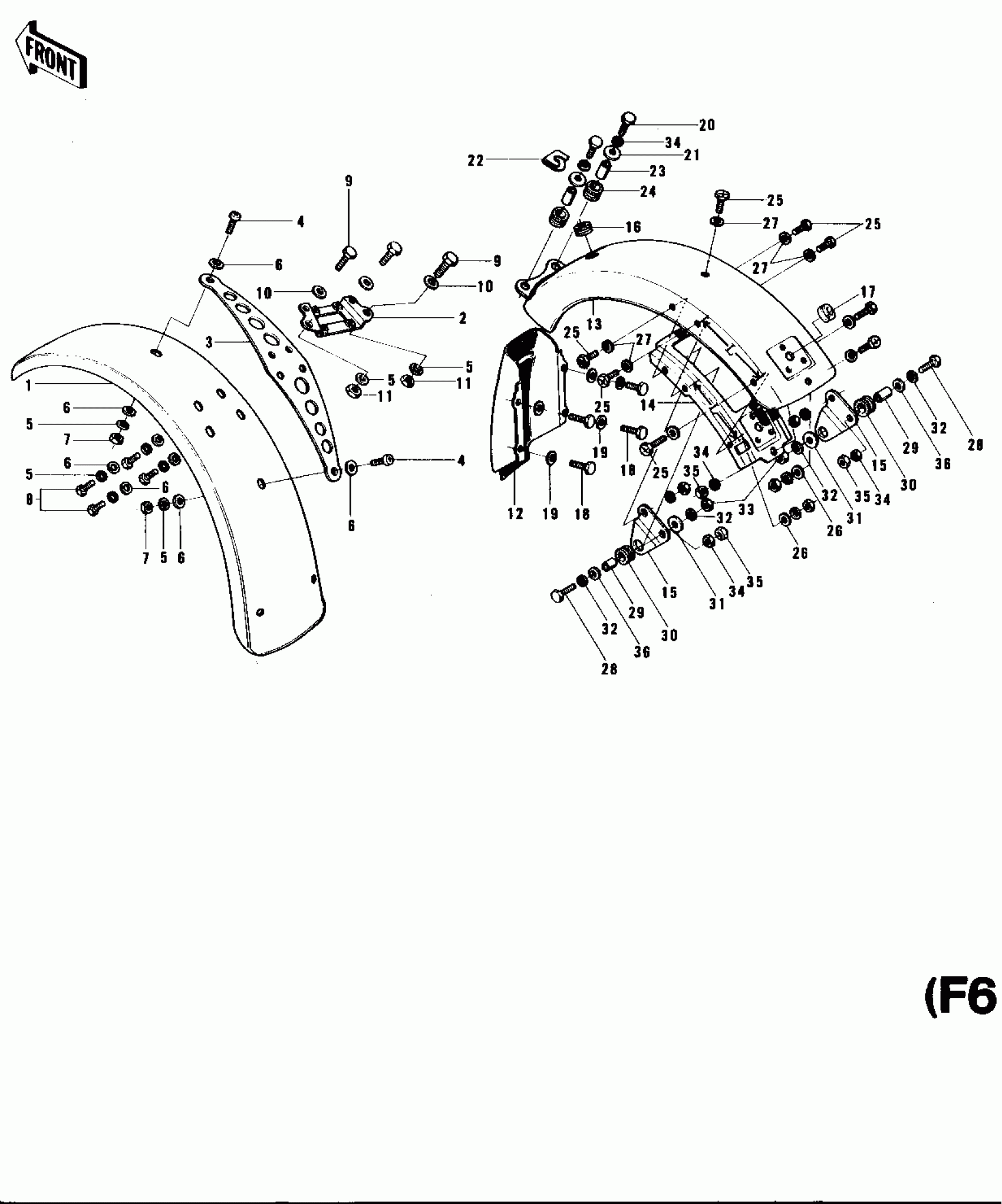

Kawasaki F6-B FENDERS (F6-B) Diagram

#

Description
Price

1

FENDER-FR,RED

35004-072-87

Unavailable

2

BRACKET-FRONT FENDER

35012-013

Unavailable

3

PLATE FRONT FENDER

35013-003

$7.22

4

SCREW PAN HEAD 6X12

220E0612

$4.08

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER,6.5X20X1.6

92022-125

$1.25

7

NUT 6MM

312B0600

Unavailable

8

BOLT-UPSET,6X12

112G0612

Unavailable

9

BOLT-HEX HEAD,6X32

110N0632

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

NUT 6MM

311B0600

Unavailable

12

FENDER-RR

35022-053

$32.53

13

FENDER-RR,RED

35022-074-87

$79.49

14

GUSSET-REAR FENDER

35034-017

Unavailable

15

BRACKET-REAR FENDER

35025-019

$4.73

16

GROMMET HARNESS 10MM

92071-010

Unavailable

17

GROMMET,10MM

92071-019

$3.10

18

BOLT-UPSET 6X14

112B0614

Unavailable

19

COLLAR

92027-122

$6.83

20

BOLT-UPSET

112G0618

Unavailable

21

WASHER,6.5X20X1.6

92022-125

$1.25

22

PLATE-GROUND WIRE

26015-001

$1.44

23

COLLAR

92027-103

$2.78

24

DAMPER RUBBER

92075-051

$2.34

25

SCREW-PAN-CROS,6X14

220B0614

$1.32

26

WASHER PLAIN 6MM

411B0600

Unavailable

27

WASHER PLAIN

92022-024

$2.92

28

BOLT FLANGED 8X55

92001-1398

Unavailable

29

COLLAR,8.8X12X14

92027-012

$4.93

30

DAMPER RUBB TANK FRNT

92075-013

$3.92

31

WASHER,8X26X2.3

92022-1564

$3.43

32

WASHER SPRING 8MM

461F0800

Unavailable

33

NUT,8MM

311B0800

Unavailable

34

WASHER SPRING 6MM

461F0600

Unavailable

35

NUT 6MM

311B0600

Unavailable

36

WASHER PLAIN 8MM

410B0800

Unavailable
