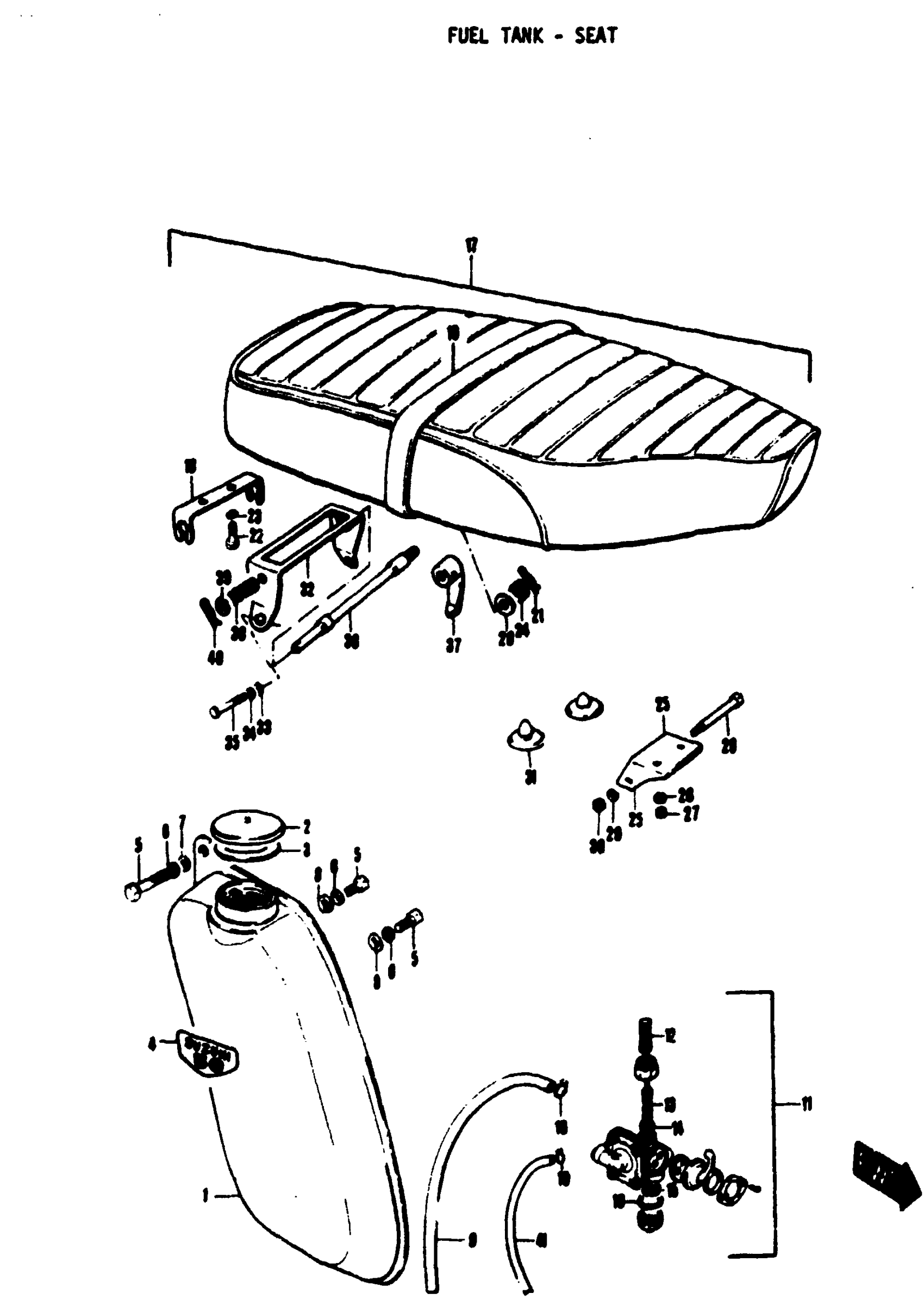

Suzuki F50 (1971) FUEL TANK - SEAT Diagram

#

Description
Price

1

FUEL TANK | F50

44110-19000-153

Unavailable

1

FUEL TANK | F50R

44110-19000-061

Unavailable

2

FUEL TANK CAP

44210-06000

Unavailable

3

FUEL TANK CAP GASKET

44248-12000

Unavailable

4

FUEL TANK EMBLEM

68141-19300

Unavailable

5

BOLT

01111-06128

Unavailable

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

7

FUEL TANK UPPER WASHER | 8x14x3

09161-08006

$2.25

8

FUEL TANK LOWER WASHER | 8x22x3

09161-08002

Unavailable

9

HOSE This part replaces 09343-05021.

09352-50005-00B

$12.95

10

HOSE CLIP

09386-08001

Unavailable

11

FUEL COCK ASS'Y | Includes Item(s) 12 - 16

44300-19050

Unavailable

12

INLET PIPE OUTER FILTER NET

44362-19050

Unavailable

13

INLET PIPE LOWER FILTER NET

44330-19051

Unavailable

14

GASKET | 8x14x2

44348-20050

Unavailable

15

FILTER NET

44344-20052

Unavailable

16

CAP GASKET | 16x21.5x1.5

44346-20050

$5.47

17

SEAT ASS'Y | Includes Item(s) 18 - 24

45100-19600-403

Unavailable

18

SEAT ROD CATCH

45118-02700

Unavailable

19

PASSENGER STRAP

45180-19700

Unavailable

20

WASHER This part replaces 09160-06011.

09160-06084

$1.82

21

SEAT PLATE STOPPER CLIP

09385-06001

$3.37

22

BOLT

01111-06128

Unavailable

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

24

.NUT This part replaces 08311-11068.

08310-00067

$1.91

25

SEAT FRONT BRACKET

45211-02000

Unavailable

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

27

.NUT This part replaces 08311-11068.

08310-00067

$1.91

28

SEAT BRACKET BOLT

09111-06001

Unavailable

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

30

.NUT This part replaces 08311-11068.

08310-00067

$1.91

31

SEAT CUSHION

45239-02000

Unavailable

32

SEAT REAR BRACKET

45221-19700

Unavailable

33

WASHER This part replaces 08322-21088.

08322-01087

$1.92

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

35

BOLT, REAR This part replaces 01121-08208.

01500-08207

$2.64

36

DUAL SEAT ROD

45245-02700

Unavailable

37

SEAT HANDLE

45246-02700

Unavailable

38

SEAT HANDLE SPRING

09440-09001

Unavailable

39

WASHER This part replaces 08322-21068.

08322-01067

$1.94

40

SEAT ROD CLIP

09385-06001

$3.37

41

BOOST TUBE | L:340

09343-04005

Unavailable
