1971 Suzuki F50 Frame - OIL Tank Diagram

← All diagrams

Find the part on the Frame - OIL Tank diagram for your 1971 Suzuki F50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

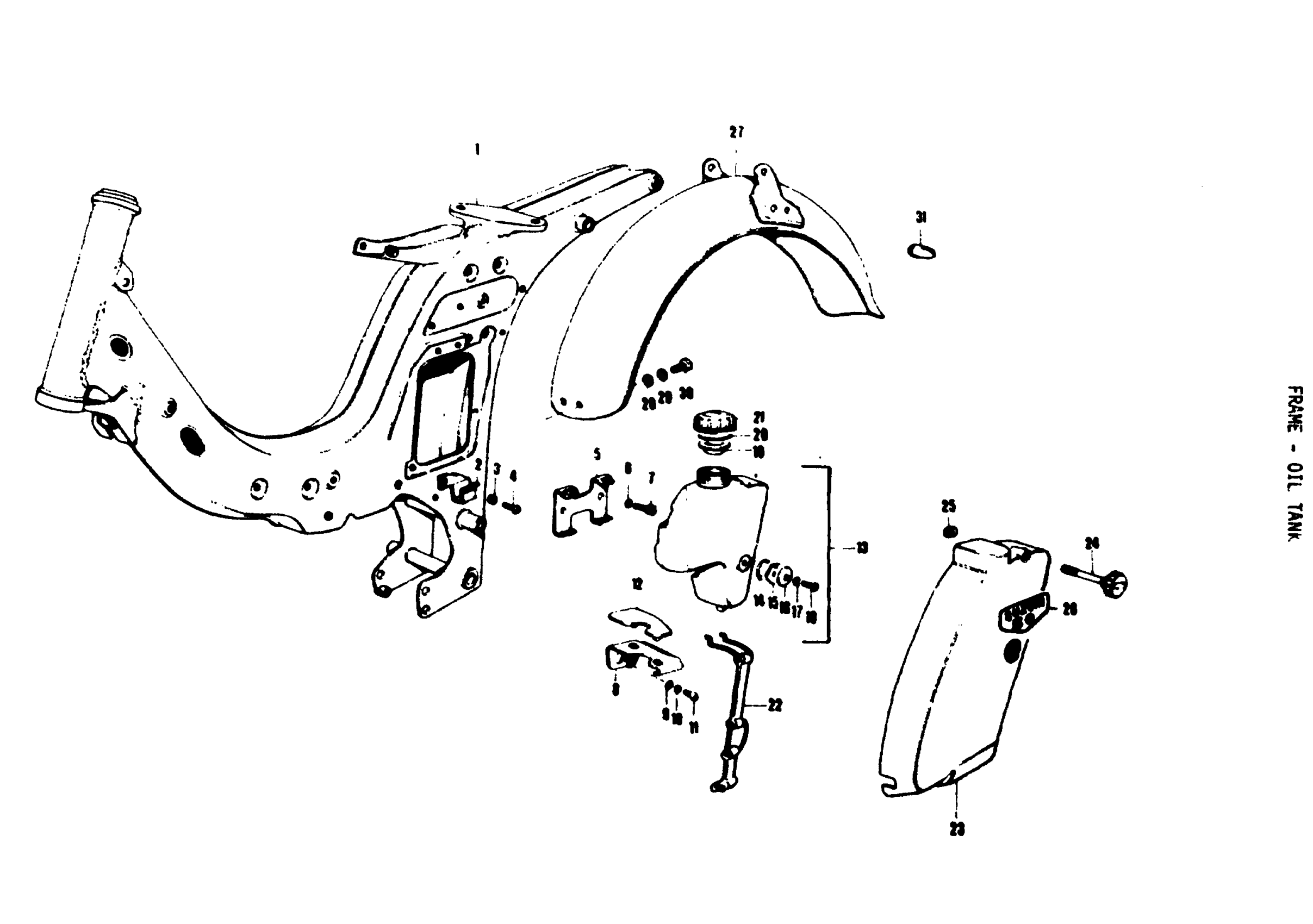

1971 Suzuki F50 Frame - OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 41100-19300-153.

41100-19300-799

—
Out of stock

1

FRAME | F50R

41100-19300-061

1
Out of stock

2

FRAME COVER HOLDER | F50

41571-19001

—
Out of stock

3

1

$2.28

In stock

4

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

5

OIL TANK HOLDER

44821-19000

—
Out of stock

6

2

$2.28

In stock

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

2
Out of stock

8

OIL TANK HOLDER NO. 2

44841-19001

—
Out of stock

9

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

10

1

$2.28

In stock

11

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

12

OIL TANK CUSHION

44831-19000

—
Out of stock

13

OIL TANK ASS'Y | Includes Item(s) 14 - 18

44600-19827

—
Out of stock

14

INSPECTION LENS O RING

09280-25001

1
Out of stock

15

INSPECTION PLATE

44640-04000

1
Out of stock

16

INSPECTION LENS | F50

44641-11000

1
Out of stock

17

LENS GASKET | F50R

09168-05001

1
Out of stock

18

SCREW This part replaces 02111-05168.

02112-05167

1
Out of stock

19

OIL TANK GAP GASKET (A)

44661-05000

—
Out of stock

20

OIL TANK GAP GASKET (B)

44662-05001

—
Out of stock

21

CAP, OIL TANK This part replaces 44651-05000.

44651-05003

1
Out of stock

22

OIL TANK BAND

44930-19000

—
Out of stock

23

FRAME LH COVER | F50

47211-19200-153

—
Out of stock

23

FRAME OIL COVER | F50R

47211-19200-061

—
Out of stock

24

FRAME LH COVER

47130-03000

—
Out of stock

25

FRAME COVER KNOB STOPPER

09152-06002

1
Out of stock

26

FRAME LH COVER EMBLEM

68141-19300

—
Out of stock

27

NO DESCRIPTION AVAILABLE | F50 This part replaces 63110-19600-153.

63110-19600-737

1
Out of stock

27

NO DESCRIPTION AVAILABLE | F50R This part replaces 63110-19600-061.

63110-19600-737

1
Out of stock

28

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

29

2

$2.28

In stock

30

BOLT

01111-06128

—
Out of stock

31

TURN SIGNAL LAMP GROMMET

35661-19610

—
Out of stock
