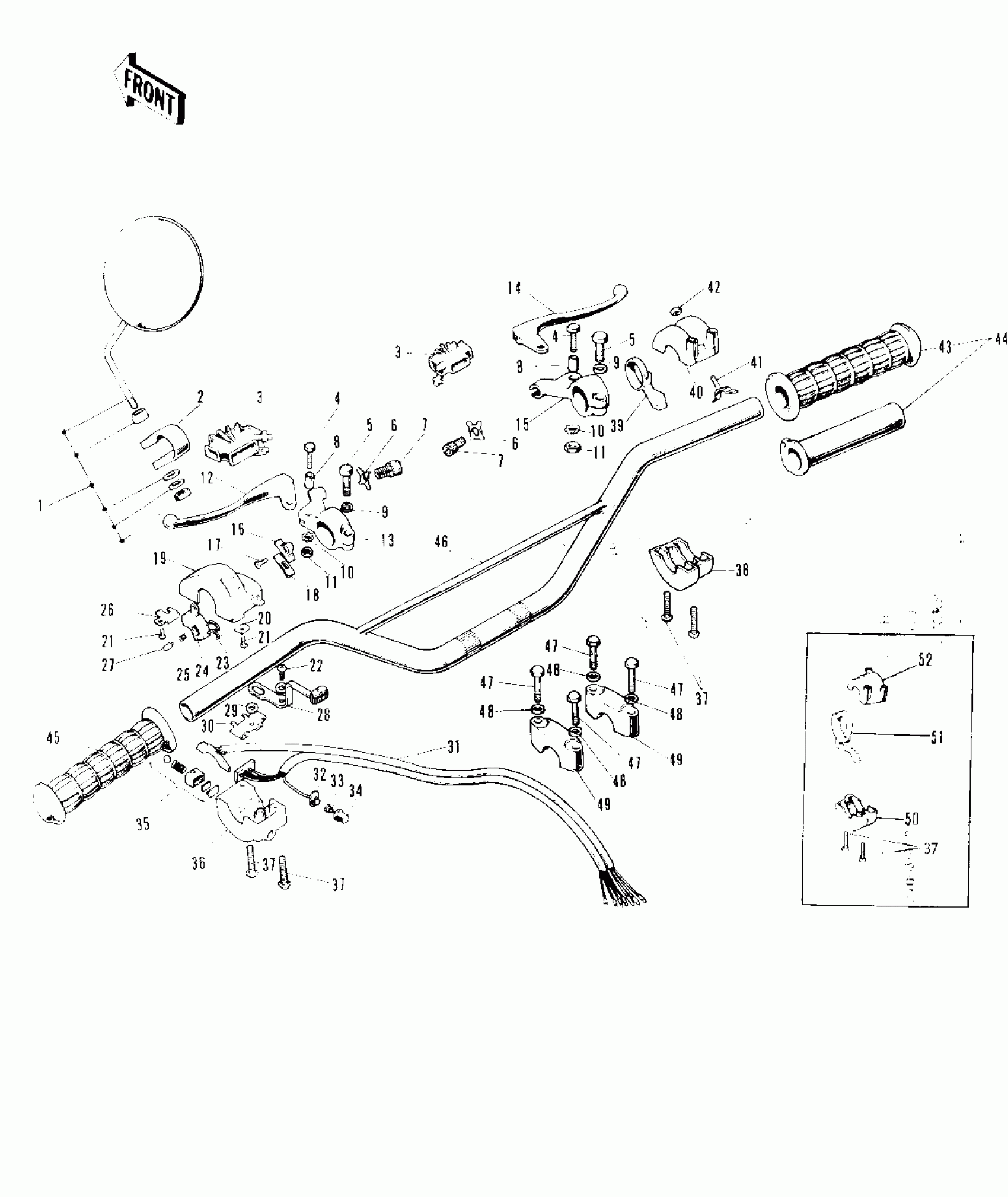

Kawasaki F5-A HANDLEBAR Diagram

#

Description
Price

1

REAR VIEW MIRROR

56001-005

Unavailable

2

BRACKET

56006-001

Unavailable

3~13

LEVER ASSY-CLUTCH

46076-014

Unavailable

3

DUST COVER

46071-001

Unavailable

4

BOLT HEX HEAD 5X20

92007-020

Unavailable

5

BOLT-UPSET

112N0620

Unavailable

6

NUT LOCK ADJUST SCREW

46056-001

Unavailable

7

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

8

COLLAR LEVER

46059-011

Unavailable

9

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

10

WASHER LOCK 5MM

464H0500

$1.51

11

NUT-HEX,5MM

312B0500

Unavailable

12

LEVER-GRIP,CLUTCH

46092-015

$19.69

13

HOLDER,CLUTCH LEVER

46094-010

Unavailable

14, 15

LEVER ASSY-FRNT BRAKE

46021-010

Unavailable

14

LEVER-GRIP,FRONT BRAKE

46058-004

$20.15

15

HOLDER-FR BRAKE LEVER

46060-006

Unavailable

16~37

CASE ASSY-L.H

46091-004

Unavailable

16

KNOB-L.H SWITCH

46044-011

Unavailable

17

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

18

SPRING L.H SW KNOB

46031-003

Unavailable

19

CASE L.H SWITCH UPPER

46086-013

$11.97

20

HOLDER L.H SW UPPER A

46085-013

$1.51

21

SCREW PAN HEAD 3X5

220B0305A

$0.54

22

SCREW-PAN-CROS,3X8

220B0308

$0.54

23

PLATE L.H SW CONTACT

46080-002

$1.51

24

SWITCH L.H

46089-003

Unavailable

25

SPRING L.H SWITCH

46031-004

$1.56

26

HOLDER L.H SW LOWER B

46085-014

$1.44

27

CONTACT L.H SWITCH

46079-002

$1.51

28

KNOB-SWITCH

46044-006

$4.32

29

WASHER

92095-010

Unavailable

30

HOLDER L.H SW LOWER

46085-015

$1.17

31

WIRING HARNESS-L.H SW

46082-017

$22.64

32

SWITCH,PUSH BUTTON

27010-1009

$7.01

33

SWITCH,PUSH BUTTON

27010-1009

$7.01

34

SWITCH,PUSH BUTTON

27010-1009

$7.01

35

SLIDE BLOCK AY-L.H SW

46089-004

$6.90

36

CASE L.H SWITCH LOWER

46077-015

$12.64

37

SCREW PAN HEAD 5X22

220B0522

Unavailable

41

SPRING THROTTLE GRIP

46024-002

Unavailable

42

NUT-HEX,5MM

312B0500

Unavailable

43

RUBBER-R.H GRIP

46061-012

Unavailable

44

GRIP ASSY-THROTTLE

46019-013

Unavailable

45

RUBBER-L.H GRIP

46075-017

Unavailable

46

HANDLEBAR

46004-016

Unavailable

47

BOLT 8X38

92001-1405

$12.52

48

WASHER SPRING 8MM

461F0800

Unavailable

49

HOLDER HANDLEBAR

46012-003

$10.15

50~52

CASE ASSY-R.H

46018-019

Unavailable

50

CASE-R.H LOWER

46023-005

Unavailable

51

LEVER-STARTER

46096-006

$36.78

52

CASE-R.H.UPPER

46041-005

Unavailable
