1971 Kawasaki F5-A Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1971 Kawasaki F5-A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

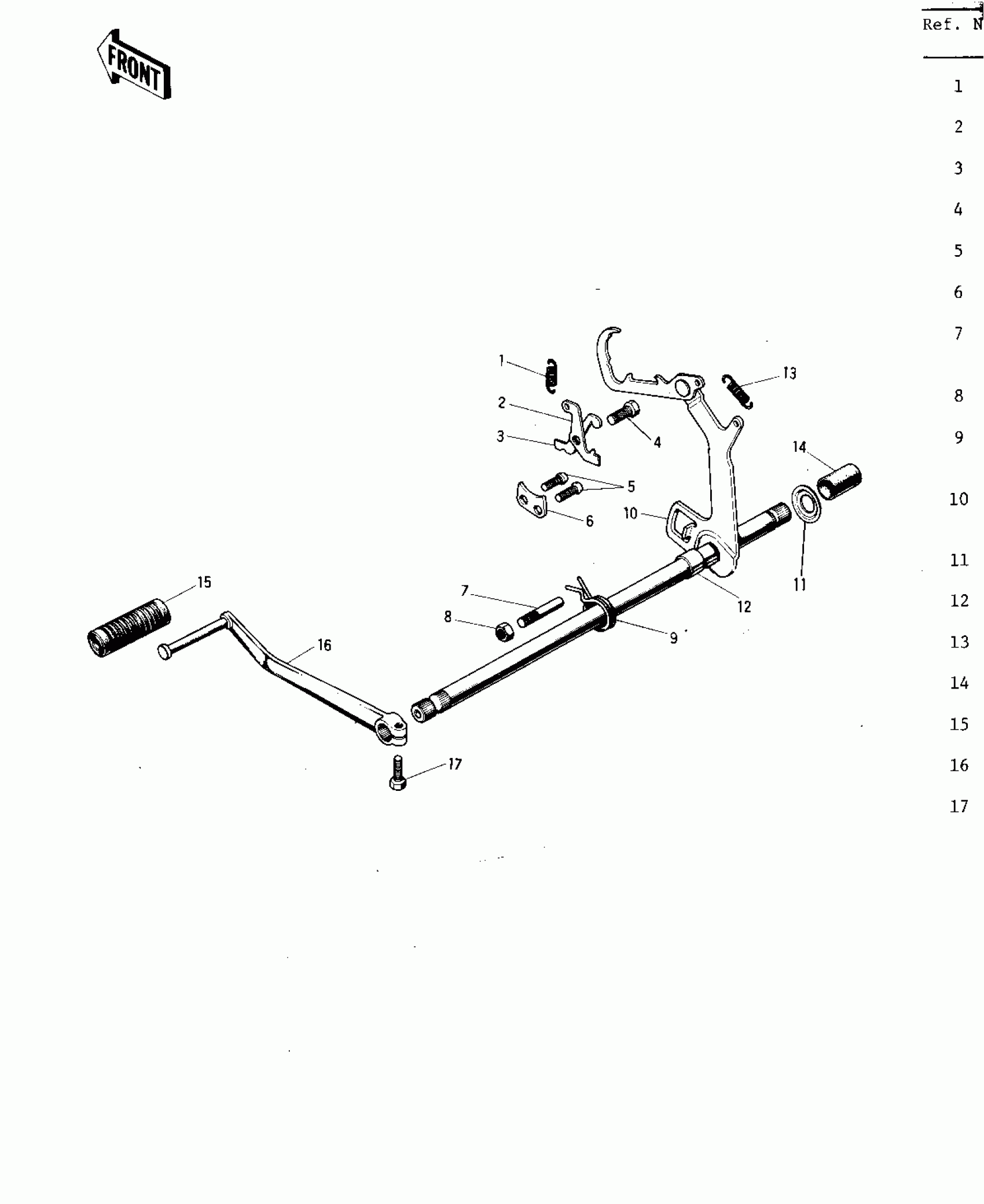

1971 Kawasaki F5-A Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING-COIL

92081-091

1
Out of stock

2

LEVER-CHANGE DRUM,B

13168-017

1
Out of stock

3

LEVER-CHANGE DRUM,A

13168-016

1
Out of stock

4

SCREW,6MM

92011-023

1
Out of stock

5

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

6

PLATE CHNG DRUM PSTN

13169-002

1
Out of stock

7

PIN CHANGE PEDAL SPRG

92043-057

1
Out of stock

8

NUT 8MM

312B0800

1
Out of stock

9

SPRING,TENSION

92081-1129

1
Out of stock

10

LEVER ASSY GEAR CHNG

13161-028

1
Out of stock

11

SPACER

92026-068

1
Out of stock

12

COLLAR,12X18X11.5

92027-121

1
Out of stock

13

SPRING,CHANGE LEVER

92144-1720

1
Out of stock

14

RUBBER CAP

13080-004

1
Out of stock

15

DAMPER,CHANGE PEDAL

13157-004

1
Out of stock

16

PEDAL GEAR CHANGE

13156-045

1
Out of stock

17

BOLT-UPSET

112G0618

1
Out of stock
