1971 Kawasaki F5-A Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1971 Kawasaki F5-A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

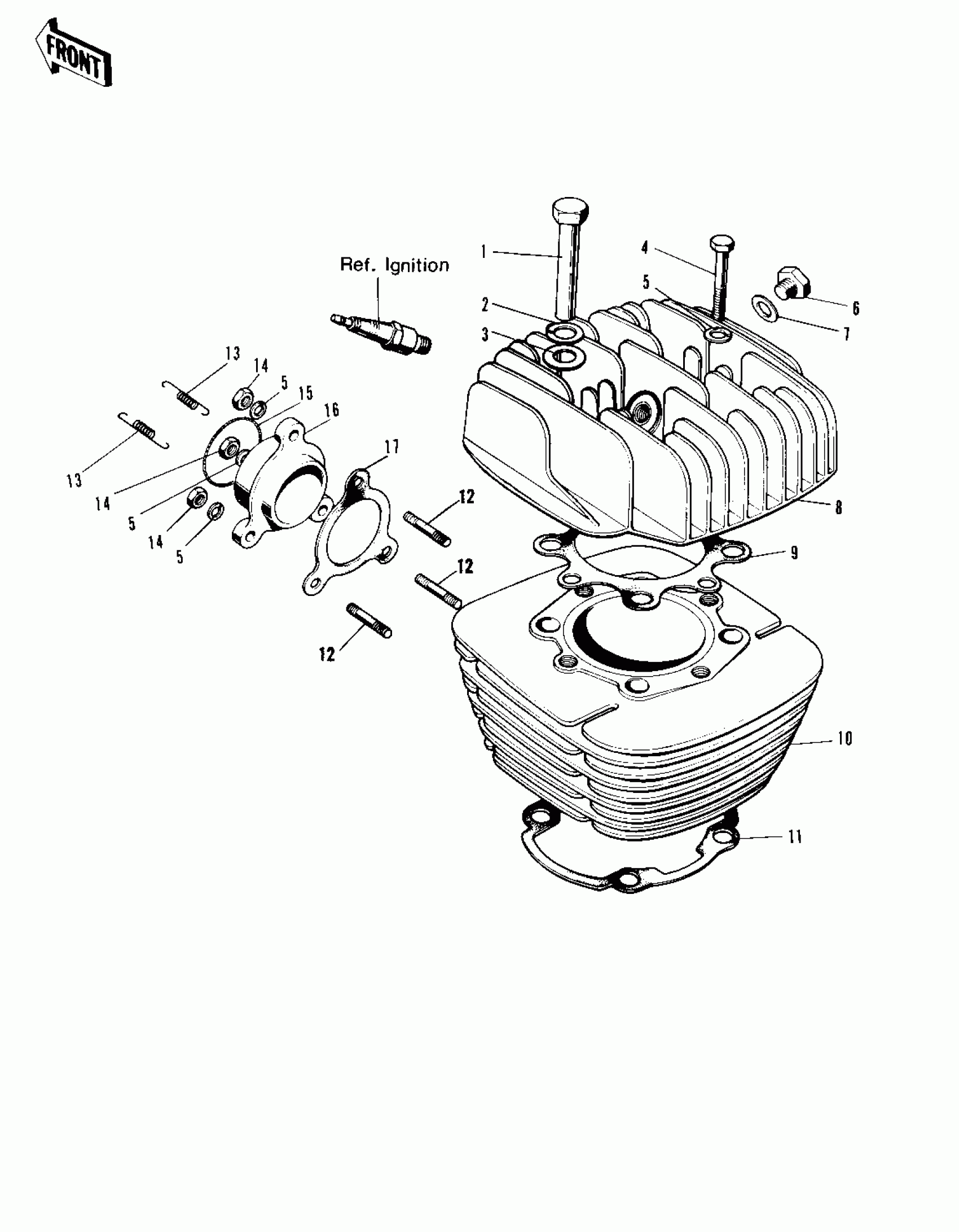

1971 Kawasaki F5-A Cylinder Head/cylinder Diagram

#

Description
Price
Status
Order Qty

1

NUT 10MM

92015-022

Out of stock

2

WASHER SPRING 14MM

461F1400

Out of stock

3

WASHER-PLAIN-SMALL,14MM

410B1400

Out of stock

4

BOLT,10X45

92001-1182

Out of stock

4

BOLT,10X45

92001-1182

Out of stock

5

WASHER SPRING 8MM

461F0800

Out of stock

5

WASHER SPRING 8MM

461F0800

Out of stock

5

WASHER SPRING 8MM

461F0800

Out of stock

6

PLUG-CYLINDER HEAD

92067-005

Out of stock

7

GASKET-CYL HEAD PLUG

92065-068

Out of stock

8

CYLINDER HEAD

11001-047

Out of stock

9

GASKET-CYLINDER HEAD

11004-037

Out of stock

10

CYLINDER,F.BLACK

11005-056-21

Out of stock

11

GASKET-CYLINDER BASE

11009-024

Out of stock

12

BOLT-STUD,8X20

172G0820

Out of stock

13

SPRING CONNECTOR

18071-001

Out of stock

13

SPRING-CONNECTOR

18071-003

$9.11

In stock

14

$0.63

In stock

15

$45.71

In stock

16

HOLDER-EXHAUST

18062-002

$53.44

In stock

17

GASKET-EXHAUST PIPE

18050-004

Out of stock
