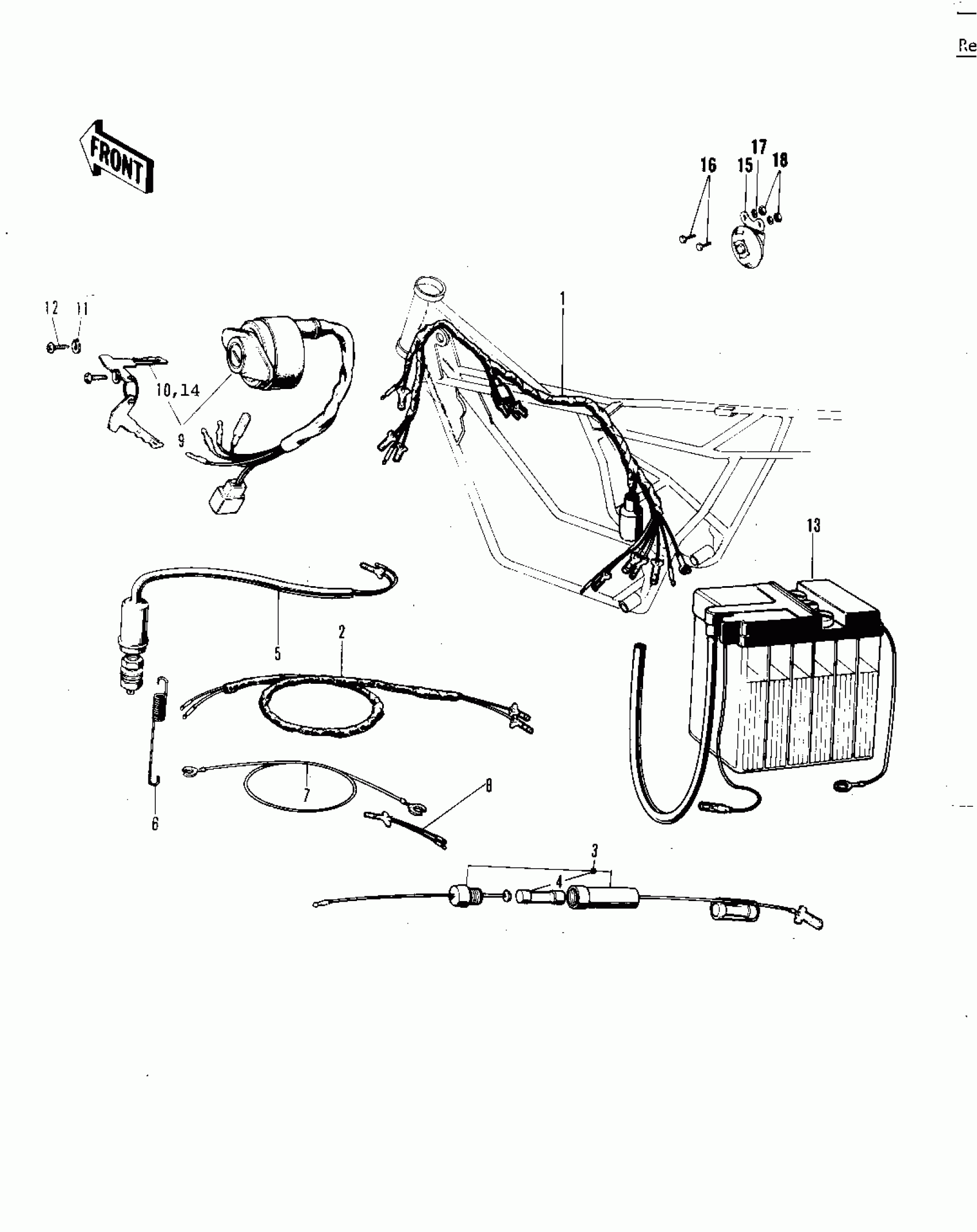

Kawasaki F5-A CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

WIRING HARNESS-MAIN

26001-052

Unavailable

1

WIRING HARNESS-MAIN

26001-054

Unavailable

2

WIRING HARNWSS REAR

26002-027

Unavailable

3

FUES ASSY

26004-008

Unavailable

4

FUSE,10A,L=25

26006-003

$3.59

5

SWITCH-BRAKE LAMP

27010-018

Unavailable

6

SPRING,BRAKE LAMP SWITCH

27011-004

$2.79

7

WIRE BATTERY GROUND

26010-017

Unavailable

8

LEAD WIRE

26011-042

Unavailable

9

SWITCH ASSY,IGNITION

27005-1016

Unavailable

10

KEY SET NO.321

27008-034-21

Unavailable

10

KEY SET NO.322

27008-034-22

$15.76

10

KEY SET NO.323

27008-034-23

$6.36

10

KEY SET NO.324

27008-034-24

$15.61

10

KEY SET NO.235

27008-034-35

Unavailable

10

KEY SET NO.236

27008-034-36

Unavailable

10

KEY SET NO.237

27008-034-37

$6.75

10

KEY SET NO.238

27008-034-38

Unavailable

10

KEY SET NO.239

27008-034-39

Unavailable

10

KEY SET NO.140

27008-034-40

Unavailable

10

KEY SET NO.141

27008-034-41

$8.81

10

KEY SET NO.142

27008-034-42

$15.61

10

KEY SET NO.143

27008-034-43

$7.07

11

WASHER SPRING 5MM

461F0500

Unavailable

12

SCREW-PAN-CROS

220B0512

$0.47

13

YUA BAT 6N2-2A-3

26012-021

$18.81

14

KEY,BLANK

27008-1016

$9.53

14

KEY,BLANK

27008-1017

$9.56

14

KEY,BLANK

27008-1018

$14.22

14

KEY,BLANK

27008-1019

$14.22

15

HORN

27003-062

Unavailable

15

HORN

27003-062

Unavailable

16

BOLT-UPSET,6X20

112G0620

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

NUT 6MM

311B0600

Unavailable
