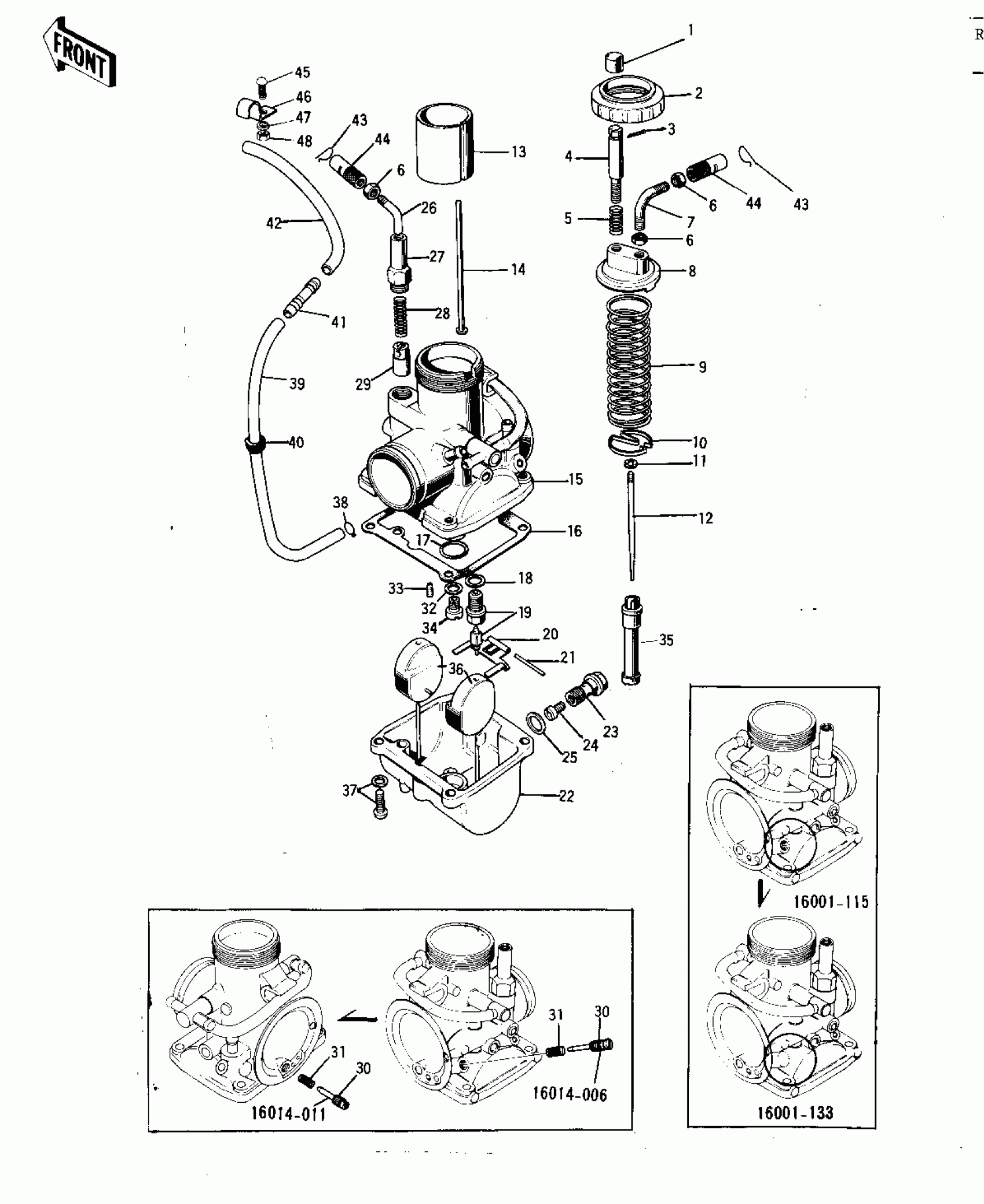

Kawasaki F5-A CARBURETOR Diagram

#

Description
Price

1~37

CARBURETOR ASSY

16001-133

$245.76

1

CAP THROTTLE ADJUSTER

16037-002

Unavailable

2

CAP-MIXING CHAMBER

16004-015

$9.86

3

PIN COTTER 1.2X10

550D1210

$1.66

4

SCREW-THROTTLE STOP

16021-009

$5.39

5

SPRING,THROTTLE STOP SCREW

16022-005

$8.66

6

NUT,CABLE ADJUST LOCK

16003-004

$7.53

7

CABLE GUIDE

16077-001

$8.78

8

TOP-MIXING CHAMBER

16005-022

$18.76

9

SPRING-THROTTLE VALV

16006-016

Unavailable

10

SPRING SEAT-THRTL VLV

16007-014

$3.81

11

CLAMP,E-TYPE

16008-010

$7.02

12

JET NEEDLE,5EJ11

16009-045

Unavailable

13

VALVE-THROTTLE,CA1.0

16025-040

$47.24

14

ROD-THROTTLE VLV STOP

16024-008

$3.54

16

GASKET-FLOAT CHAMBER

16019-015

Unavailable

17

'V' RING

92055-042

Unavailable

18

WASHER FLOAT VLV SEAT

16029-004

$2.97

19

FLOAT VALVE ASSY

16030-013

Unavailable

20

FLOAT ARM

16140-001

$3.56

21

FLOAT PIN

16032-005

$2.36

23

BOLT-BANJO

92001-097

Unavailable

24

JET-MAIN NO 132.5R

92063-103

Unavailable

25

GASKET-BANJO BOLT

16034-005

Unavailable

26

CABLE GUIDE

16077-005

Unavailable

27

CAP-STARTER PLUNGER

16012-013

$4.00

28

SPRING-PLUNGER

16013-003

$4.18

29

PLUNGER,STARTER

16016-002

$33.31

30

SCREW-PILOT AIR ADJS

16014-011

Unavailable

31

SPRING,PILOT AIR SCREW

16022-007

$7.97

32

WASHER,MAIN JET

16034-001

$3.43

33

PILOT JET,#12.5

92064-033

$13.69

34

MAIN JET NO 2.4R

92063-102

Unavailable

35

NEEDLE JET 0-8

16017-042

$9.27

36

FLOAT

16031-1062

Unavailable

37

SCREW-PAN-WS-CROS

223B0414

$1.16

38

CLAMP,TUBE

92037-010

$2.99

39

PIPE

92059-065

$34.17

40

GROMMET,PIPE

92071-038

Unavailable

41

NIPPLE

92005-003

$3.53

42

PIPE OIL TANK

92059-002

$34.17

43

RING-SNAP

92036-018

$2.97

44

CABLE ADJUSTER

16002-007

$10.92

45

SCREW-PAN-CROS,6X14

220B0614

$1.14

46

CLAMP CABLE

92037-020

Unavailable

47

WASHER SPRING 6MM

461F0600

Unavailable

48

NUT 6MM

311B0600

Unavailable
