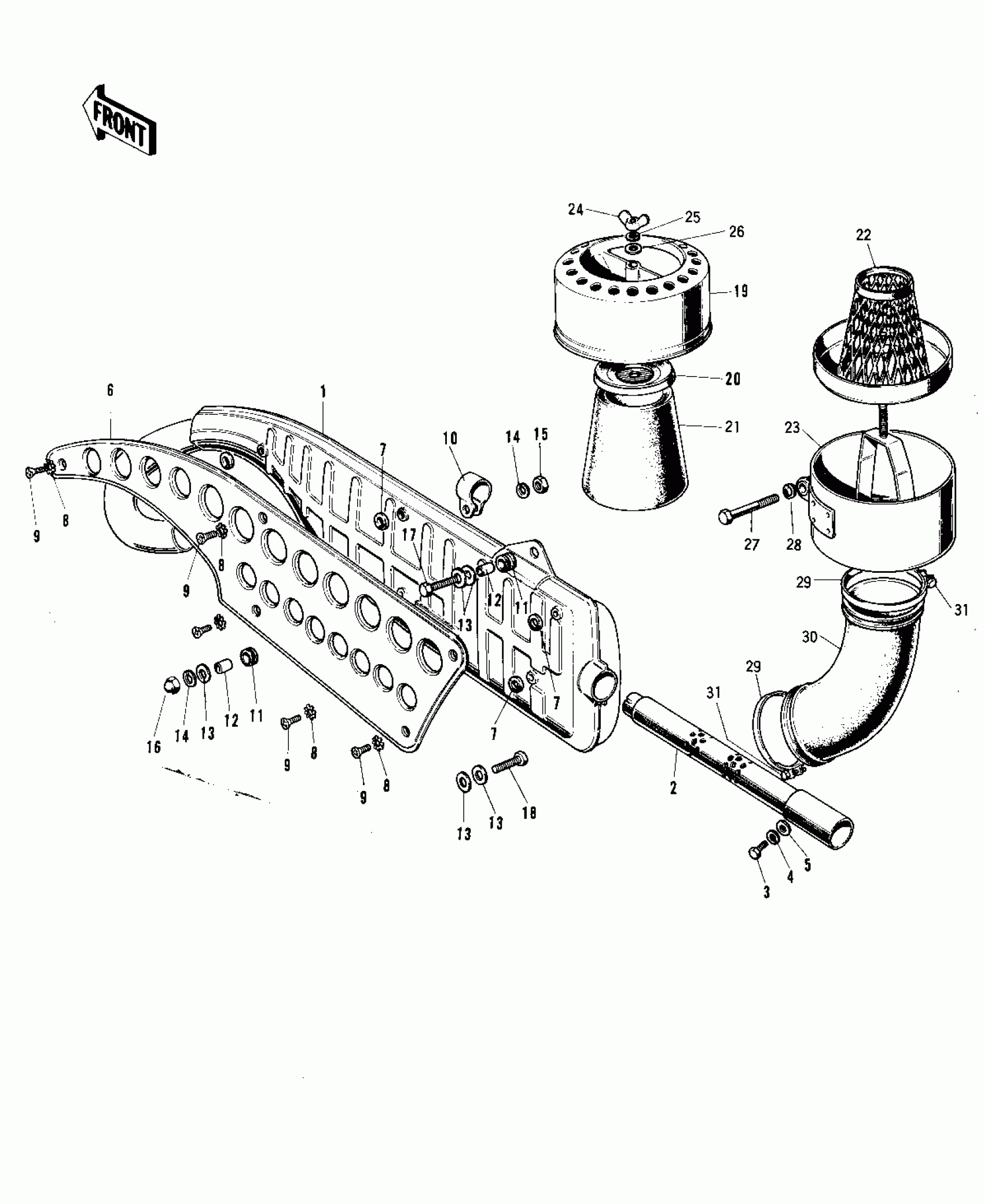

Kawasaki F5-A AIR CLEANER/MUFFLER Diagram

#

Description
Price

1~5

MUFFLER ASSY,F.BLACK

18001-107-21

$189.39

2

BAFFLE TUBE

18033-040

Unavailable

3

BOLT,6X10

112G0610

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

WASHER PLAIN 6MM

411B0600

Unavailable

6

COVER-MUFFLER,BLACK

18064-003-21

$36.73

7

INSULATOR HEAT

18065-002

$3.44

8

WASHER LOCK 6MM

463H0600

Unavailable

9

SCREW PAN HEAD 6X10

220E0610

Unavailable

10

BRACKET,UPPER MUFFLE

32069-039

Unavailable

11

DAMPER RUBBER-MUFFLER

18063-005

Unavailable

12

COLLAR

92027-102

$1.49

13

WASHER,8X26X2.3

92022-1564

$4.31

14

WASHER SPRING 8MM

461F0800

Unavailable

15

NUT 8MM

312B0800

Unavailable

16

NUT FUEL TANK FRONT

92020-007

Unavailable

17

BOLT,FLANGED,8X35

92001-1577

Unavailable

18

BOLT HEX HEAD 8X28

114G0828

Unavailable

19~26

AIR CLEANER ASSY

11010-038

Unavailable

19

CAP-AIR CLEANER

11012-014

Unavailable

20

ELEMENT,AIR CLNR,TOP

11013-022

Unavailable

21

ELEMENT,AIR CLNR,MAIN

11013-021

Unavailable

22

WIRE NET-AIR CLEANER

11014-002

Unavailable

23

BODY-AIR CLEANER

11011-011

Unavailable

24

NUT-WING,6MM

92015-030

Unavailable

25

WASHER SPRING 6MM

461F0600

Unavailable

26

WASHER PLAIN 6MM

411B0600

Unavailable

27

BOLT,EXCLUSIVE

92001-1456

$4.90

28

WASHER SPRING 6MM

461F0600

Unavailable

29

CLAMP,AIR CLEANER

92037-129

$15.08

30

CONNECTOR

11026-002

Unavailable

31

SCREW PAN HEAD 6X30

220B0630

$2.74
