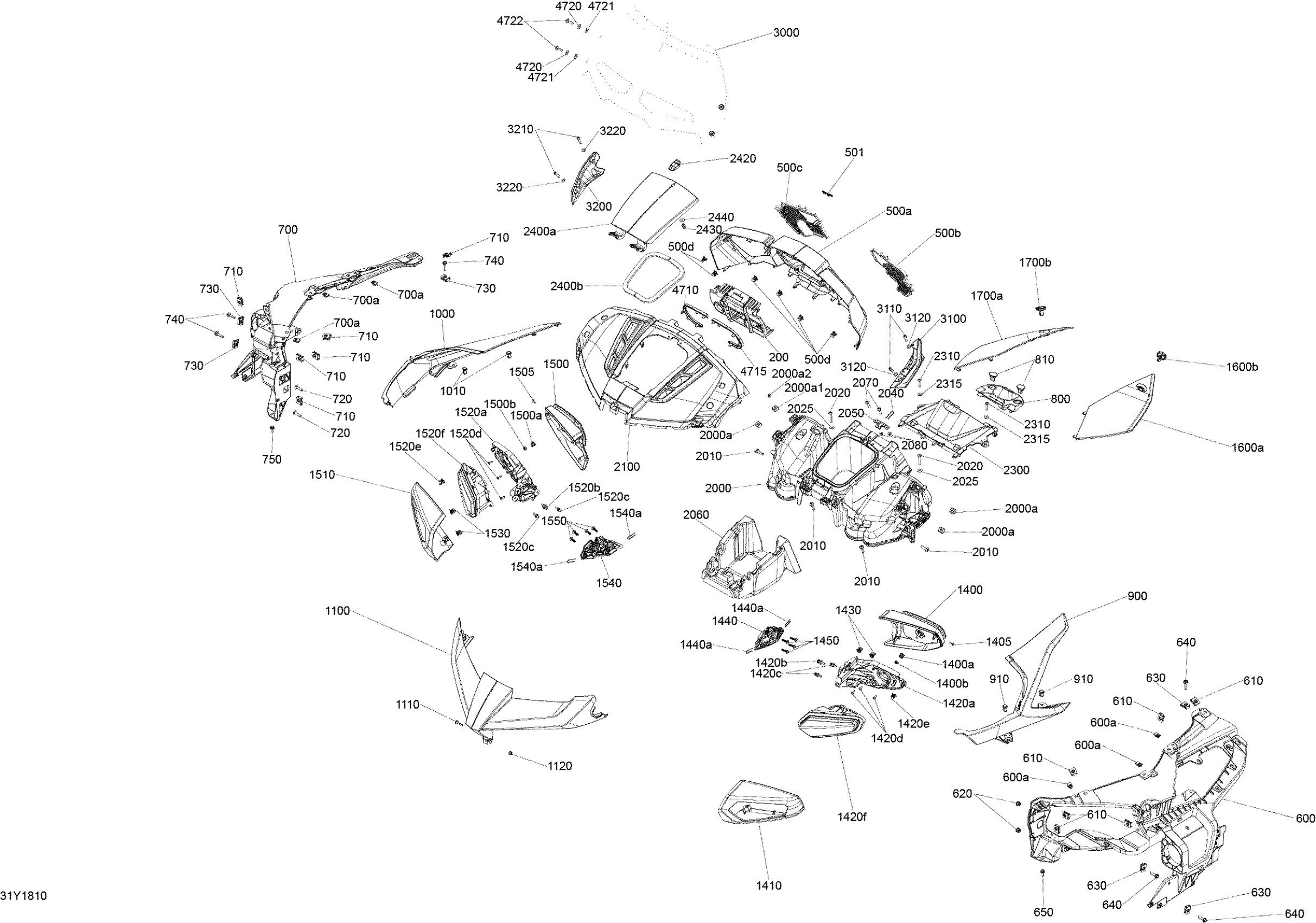

Can-Am F3 T SE6, 2018 Console Diagram

#

Description
Price

200

Speedometer Support

705012178

$11.00

500a

Dashboard

708400230

$64.00

500b

LH Grille

708400231

$11.00

500c

RH Grille

708400232

$11.00

500d

Edge Clip

517302785

$0.70

501

BRP AUDIO LOGO - Call your local BRP dealership

708400308

Unavailable

600

LH Console Support | Included 100 to 100b

708400170

$100.00

600a

Panel Nut M5 X 0.8

250100176

$4.00

610

Panel Nut M6 X 1.0

250100208

$1.07

620

Hex. Flange Elastic Nut M6

233261494

$1.26

630

Panel Nut M6 X 1.0

250100208

$1.07

640

Hex. Flange Screw M6 X 25

250000793

$1.74

650

Hex. Flange Screw M6 X 16

210261650

$1.22

700

RH Console Support | Included 300 to 300b

708400171

$105.00

700a

Panel Nut M5 X 0.8

250100176

$4.00

710

Panel Nut M6 X 1.0

250100208

$1.07

720

Torx Screw M6 X 25

250000758

$1.74

730

Panel Nut M6 X 1.0

250100208

$1.07

740

Hex. Flange Screw M6 X 25

250000793

$1.74

750

Hex. Flange Screw M6 X 16

210261650

$1.22

800

Switch Bezel

708400205

$15.00

810

Cap

708400046

$4.00

810

Cap

708400046

$4.00

900

Steel Black, LH Consol Fairing

708400066

$220.00

910

Tuflok Plastic Rivet

293150230

$1.21

1000

Steel Black, RH Consol Fairing

708400068

$220.00

1010

Tuflok Plastic Rivet

293150230

$1.21

1100

Steel Black, Nose Fairing

708400075

$230.00

1110

Torx Screw M5 X 25

250000762

$1.74

1120

Elastic Flange Nut M5

233251494

$1.74

1400

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$145.00

1400a

Spring

705010625

$11.00

1400b

Hex. Elastic Stop Nut M6

232561600

$0.92

1405

Torx Truss Screw K40 X 12

250000577

$1.74

1410

Steel Black, Mirror Shell LH | Model with Package T

708400497

$145.00

1420a

LH Mirror Support

708400224

$34.00

1420b

Flat Head Stud M5

705006733

$21.00

1420c

Stud Ball M5

708400538

$18.00

1420d

Torx Truss Screw K40 X 12

250000577

$1.74

1420e

Edge Clip

517302785

$0.70

1420f

LH Front Flasher Unit

710001510

$164.00

1430

Edge Clip

517302785

$0.70

1440

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$28.00

1440a

Spring

705006661

$3.00

1450

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1500

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$145.00

1500a

Spring

705010625

$11.00

1500b

Hex. Elastic Stop Nut M6

232561600

$0.92

1505

Torx Truss Screw K40 X 12

250000577

$1.74

1510

Steel Black, Mirror Shell RH | Model with Package T

708400498

$145.00

1520a

RH Mirror Support

708400225

$34.00

1520b

Flat Head Stud M5

705006733

$21.00

1520c

Stud Ball M5

708400538

$18.00

1520d

Torx Truss Screw K40 X 12

250000577

$1.74

1520e

Edge Clip

517302785

$0.70

1520f

RH Front Flasher Unit

710001511

$164.00

1530

Edge Clip

517302785

$0.70

1540

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$28.00

1540a

Spring

705006661

$3.00

1550

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1600a

Steel Black, LH Access Panel

708400256

$250.00

1600b

Cover Latch Quarter Turn

708400065

$2.99

1700a

Steel Black, RH Access Panel

708400257

$250.00

1700b

Cover Latch Quarter Turn

708400065

$2.99

2000

Upper Pod | Included 550 to 550f

708400219

$155.00

2000a

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

2000a1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

2000a2

Elastic Stop Nut M6, Brass

232561200

$3.51

2010

Torx Truss Screw M6 X 25

250000807

$1.74

2020

Torx Screw Nylon

250000732

$1.74

2025

Stainless Steel Flat Washer M5

234052670

$0.83

2040

Spring

705006661

$3.00

2050

Receptacle

708400215

$8.00

2060

Pod Foam

708400103

$16.00

2070

Torx Screw M5 X 25

250000762

$1.74

2080

Elastic Flange Nut M5

233251494

$1.74

2100

Upper Fairing

708400221

$37.00

2300

Column Fairing

708400108

$18.00

2310

Torx Screw M5 X 25

250000762

$1.74

2315

Stainless Steel Flat Washer M5

234052670

$0.83

2400a

Glove Box Door

708400217

$170.00

2400b

Seal

293250406

$29.00

2420

Lever

708400213

$43.00

2430

Stud M5

705011056

$19.00

2440

Stainless Steel Flat Washer M5

234052670

$0.83

3000

Windshield

708400342

$400.00

3100

Carbon Black, LH Windshield Base

708400127

$130.00

3110

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

3120

Stainless Flat Washer M6

234061600

$0.25

3200

Carbon Black, RH Windshield Base

708400128

$130.00

3210

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

3220

Stainless Flat Washer M6

234061600

$0.25

4710

Carbon Black, LH Trim Gauge

705012356

$45.00

4715

Carbon Black, RH Trim Gauge

705012357

$45.00
