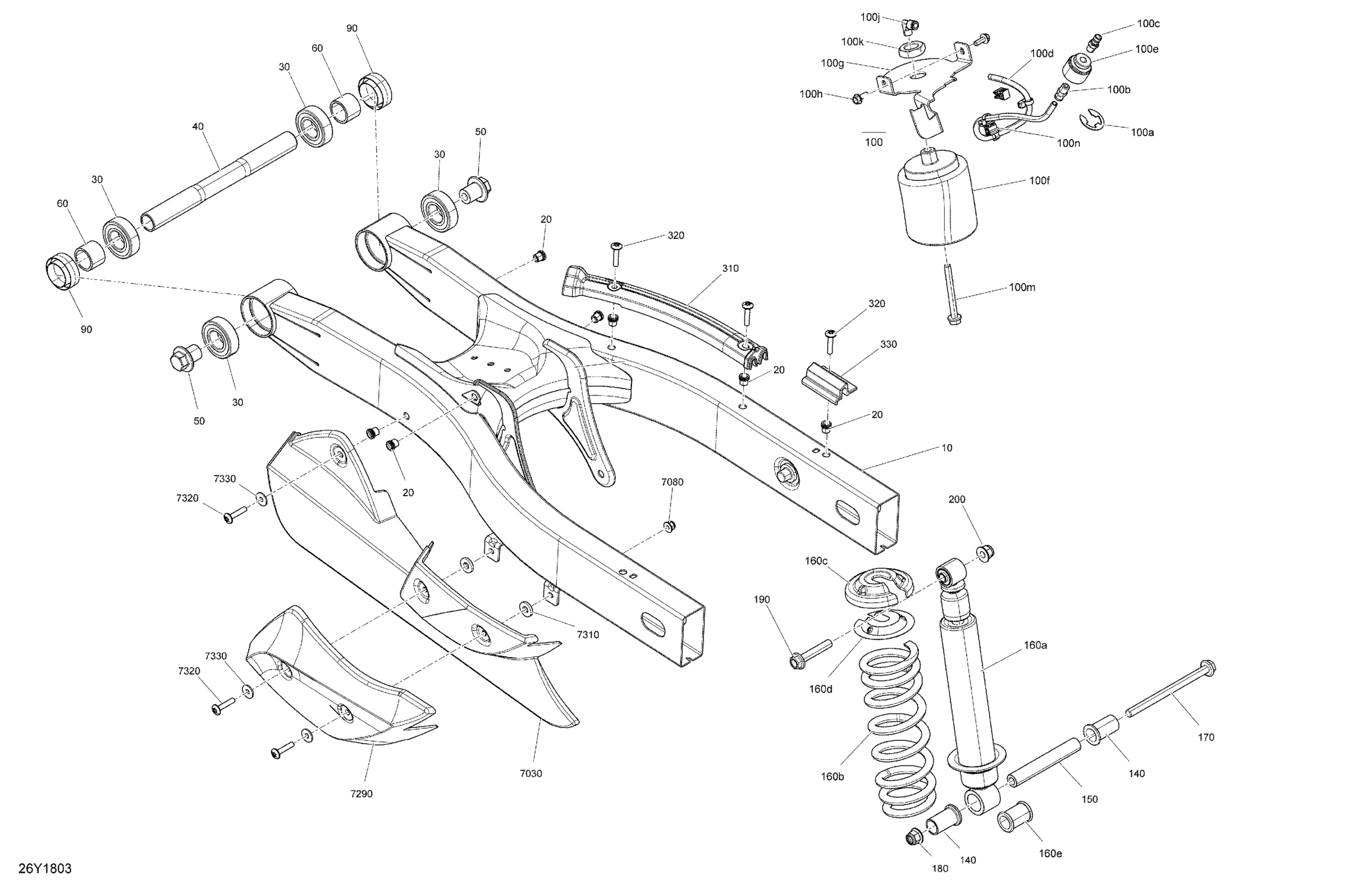

Can-Am F3 T SE6, 2018 Rear Suspension Diagram

#

Description
Price

10

Swing Arm

706001574

$455.99

20

Insert

293450275

$9.89

30

Ball Bearing

293350115

$10.82

40

Swing Arm Axle

706001182

$93.99

50

Bolt M20

706001579

$16.87

60

Spacer

706001152

$9.49

90

Sleeve

706001366

$1.26

100

Air Damper Kit

219800175

$291.49

100a

Circlip

293370123

$2.69

100b

Connector

706000869

$32.06

100c

Air Valve

706002797

$14.90

100d

Hose

706002679

$9.21

100e

Pneumatic Connector

706002656

$19.49

100f

Air Damper Kit

219800175

$291.49

100g

Support Plate

706002456

$24.99

100h

Hex. Forming Screw M6 X 10

210261050

$1.42

100j

Elbow 90°

706001018

$28.99

100k

Jam Nut M20

250100119

$4.13

100m

Hex. Flange Screw M8 X 75

207687544

$7.01

100n

Clip Tie-Rap

710002899

$7.84

140

Spacer

706000410

$13.99

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock

706001706

$137.49

160b

Spring

706001707

$49.99

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160e

Urethane Cushion

503191609

$18.49

170

Hex. Flange Screw M10 X 140

230604034

$6.77

180

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

190

Hex. Flange Screw M10 X 55

207605554

$7.62

310

Protector

710004281

$25.99

320

Torx Truss Screw M6 X 30

250000843

$1.74

330

Hose Support

710002145

$7.89

7030

Lower Belt Guard

705002092

$48.99

7080

Hex. Flange Elastic Nut M6

233261494

$1.26

7290

Belt Guard Moulding

705009446

$35.99

7310

Adhesive Spacer

705003696

$4.19

7320

Stainless, Torx Screw M6 X 30

250000842

$1.74

7330

Stainless Steel Flat Washer

234062670

$1.74
