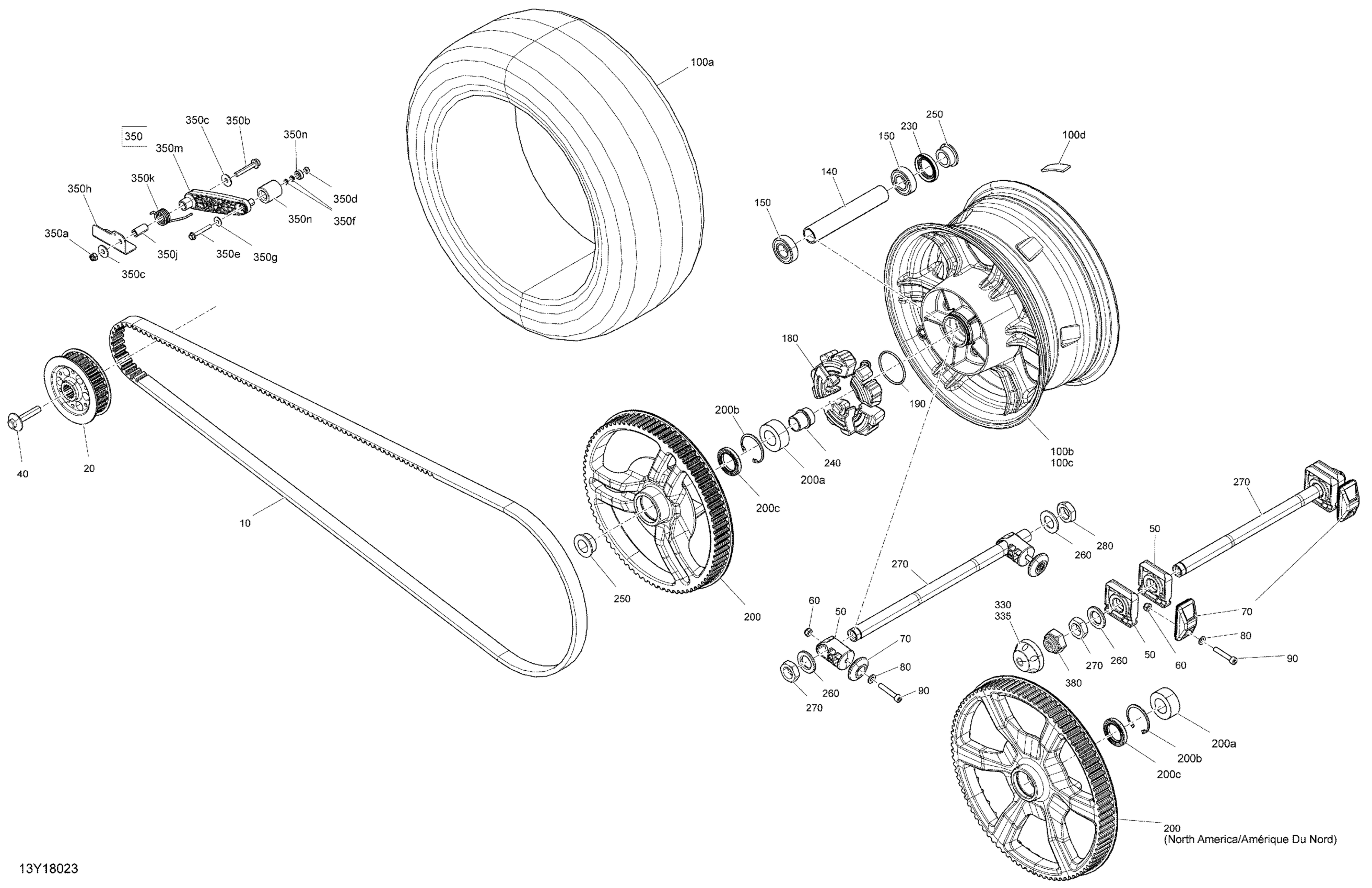

Can-Am F3 T SE6, 2018 Rear Drive Diagram

#

Description
Price

10

Drive Belt

705501304

$410.00

10

Drive Belt

705502157

$410.00

20

Sprocket 28 Teeth

705503239

$160.00

40

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.00

50

Sliding Block

705502448

$15.00

60

Hex. Elastic Nut M8

250100141

$2.00

70

Adjustment Support

705502450

$16.00

80

Flat Washer 8 mm

234081410

$0.69

90

Socket Screw DIN.912

250000713

$3.00

100a

Rear Tire 225/50R15

705503310

Unavailable

100b

Black, Rear Rim

705501992

$392.00

100c

Rim Valve With Cap

705400193

$6.69

100d

Self Adhesive Weight, 5G 20mm

705502106

$4.35

140

Spacer Tube

705502093

$18.00

150

Ball Bearing

293350115

$11.15

180

Damper

705500736

$24.00

190

O-Ring

293300124

$3.00

200

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$500.00

200

Carbon Black, Sprocket 89 Teeth Ass'y | Included 200 to 200d

705502187

$700.00

200a

Double Row Bearing

293350065

$34.00

200b

Circlip

293370053

$10.00

200c

Seal

293200094

$9.31

230

Seal

293200094

$9.31

240

Spacer

705500853

$23.00

250

Spacer

705501602

$19.00

260

Flat Washer

250200163

$3.40

270

Rear Wheel Axle

705501691

$99.00

280

Hex. Jam Nut M24

250100170

$12.00

330

LH Cap

705501081

$9.00

335

RH Cap

705501022

$9.00

350

Idler Belt Kit F3 | Includes 350 to 350n

219800431

$56.00

350a

Hex. Elastic Stop Nut M8

232581414

$0.47

350b

Hex. Flange Screw M8 X 50

207685044

$1.39

350c

Flat Washer 8 mm

234082410

$1.11

350d

Elastic Stop Nut M6

232561414

$1.55

350e

Hex. Flange Screw M6 X 45

207664544

$1.07

350f

Washer

514053953

$0.75

350g

Flat Washer 6 mm

234062410

$0.64

350h

Lever Support

705502485

Unavailable

350j

Bushing

705502484

Unavailable

350k

Torsion Spring

705502483

Unavailable

350m

Lever Arm

705502763

Unavailable

350n

Pulley Assembly

705502613

Unavailable

380

Nut Cap

705502248

$8.00
