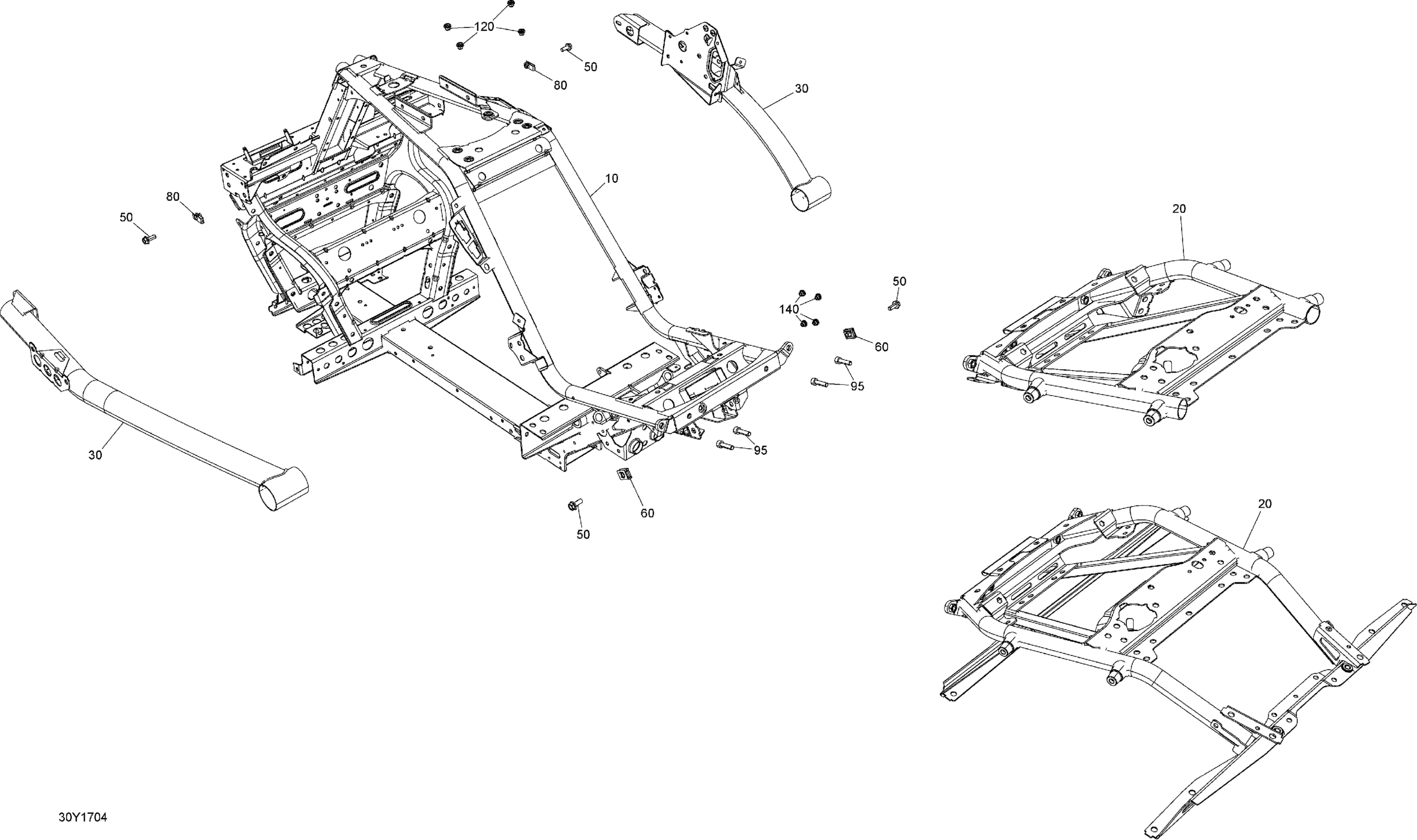

Can-Am F3 STD SE6, 2018 Frame Diagram

#

Description

Price

10

Chassis | Included 10 to 10ag

705210350

Unavailable

10a

Pop Rivet 3/16"

390402200

$0.26

20

Frame Extension Kit

219800410

$560.00

30

Deep Black, RH Upper Lateral Support

705204611

$350.00

40

Deep Black, LH Upper Lateral Support

705204616

$210.00

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

60

Panel Nut M8 X 1.25

250100069

$4.00

80

Panel Nut M8 X 1.25

250100118

$1.63

95

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

120

Insert Half Hex Body M6 x 1.0

250100199

$2.54

140

Insert Half Hex Body M6 x 1.0

250100199

$2.54
