Description

Price

100

Upper Fairing

708400208

$37.00

110

Panel Nut M6 X 1.0

250100208

$1.07

200

Cluster Holder

708400005

$20.74

210

Torx Screw M6 X 20

250000722

$1.34

220

Torx Truss Screw K40 X 12

250000577

$1.74

300

LH Slider Support

708400053

$35.00

310

Torx Truss Screw M6 X 25

250000807

$1.74

400

RH Slider Support

708400054

$38.00

410

Torx Truss Screw M6 X 25

250000807

$1.74

500

CLUSTER BEZEL - Call your local BRP dealership

708400022

$21.00

510

Torx Truss Screw K40 X 12

250000577

$1.74

600

LH Console Support | Included 100 to 100b

708400170

$100.00

600a

Panel Nut M5 X 0.8

250100176

$4.00

610

Panel Nut M6 X 1.0

250100208

$1.07

620

Hex. Flange Elastic Nut M6

233261494

$1.26

630

Panel Nut M6 X 1.0

250100208

$1.07

640

Hex. Flange Screw M6 X 25

250000793

$1.74

650

Hex. Flange Screw M6 X 16

210261650

$1.22

700

RH Console Support | Included 300 to 300b

708400171

$105.00

700a

Panel Nut M5 X 0.8

250100176

$4.00

710

Panel Nut M6 X 1.0

250100208

$1.07

710

Panel Nut M6 X 1.0

250100208

$1.07

720

Torx Screw M6 X 25

250000758

$1.74

730

Panel Nut M6 X 1.0

250100208

$1.07

740

Hex. Flange Screw M6 X 25

250000793

$1.74

750

Hex. Flange Screw M6 X 16

210261650

$1.22

800

Switch Bezel

708400205

$15.00

810

Cap

708400046

$4.00

810

Cap

708400046

$4.00

900

LH Steel Black Console Fairing

708400023

$230.00

910

Tuflok Plastic Rivet

293150230

$1.21

910

Tuflok Plastic Rivet

293150230

$1.21

1000

RH Steel Black Console Fairing

708400024

$230.00

1010

Tuflok Plastic Rivet

293150230

$1.21

1010

Tuflok Plastic Rivet

293150230

$1.21

1100

Black Deep Nose Fairing

708400011

$38.00

1110

Torx Screw M5 X 25

250000762

$1.74

1120

Elastic Flange Nut M5

233251494

$1.74

1130

Torx Truss Screw K40 X 12

250000577

$1.74

1200

LH Upper Console Header

708400016

$28.00

1210

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

1220

Torx Screw Nylon

250000732

$1.74

1230

Screw-Torx Button Head M5 X 14

235551454

$7.31

1240

Cap Nut M5

250100152

$2.00

1250

Torx Truss Screw K40 X 12

250000577

$1.74

1300

RH Upper Console Header

708400017

$28.00

1310

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

1320

Torx Screw Nylon

250000732

$1.74

1330

Screw-Torx Button Head M5 X 14

235551454

$7.31

1340

Cap Nut M5

250100152

$2.00

1350

Torx Truss Screw K40 X 12

250000577

$1.74

1400

LH Lighted Mirror Ass'y

705008964

$285.00

1500

RH Lighted Mirror Ass'y

705008969

$285.00

1600a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

1600b

Cover Latch Quarter Turn

708400065

$2.99

1700a

Black Polycarbonate, RH Acces Panel

708400239

$23.00

1700b

Cover Latch Quarter Turn

708400065

$2.99

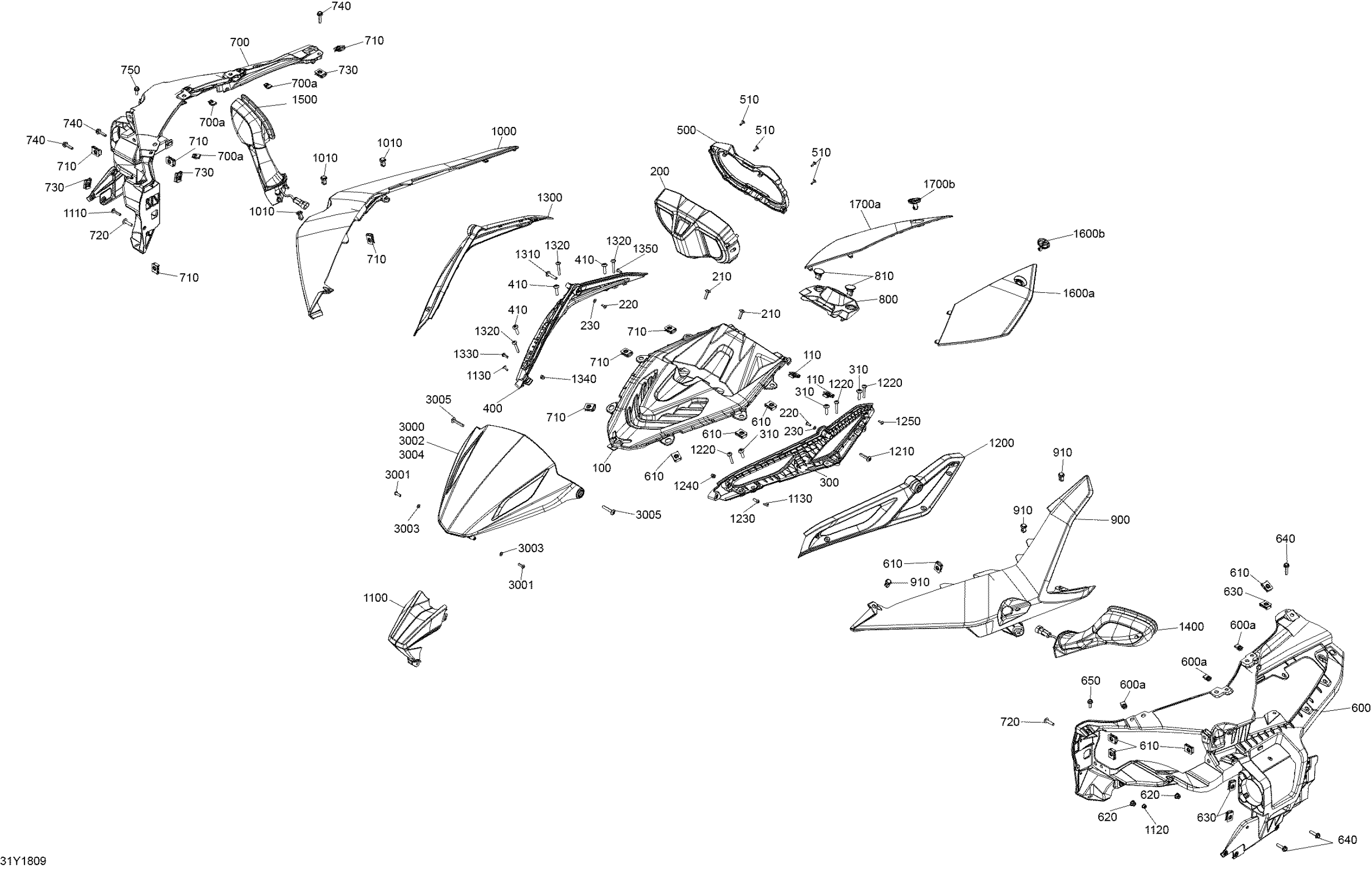

Can-Am F3 STD SE6, 2018 Console Diagram
