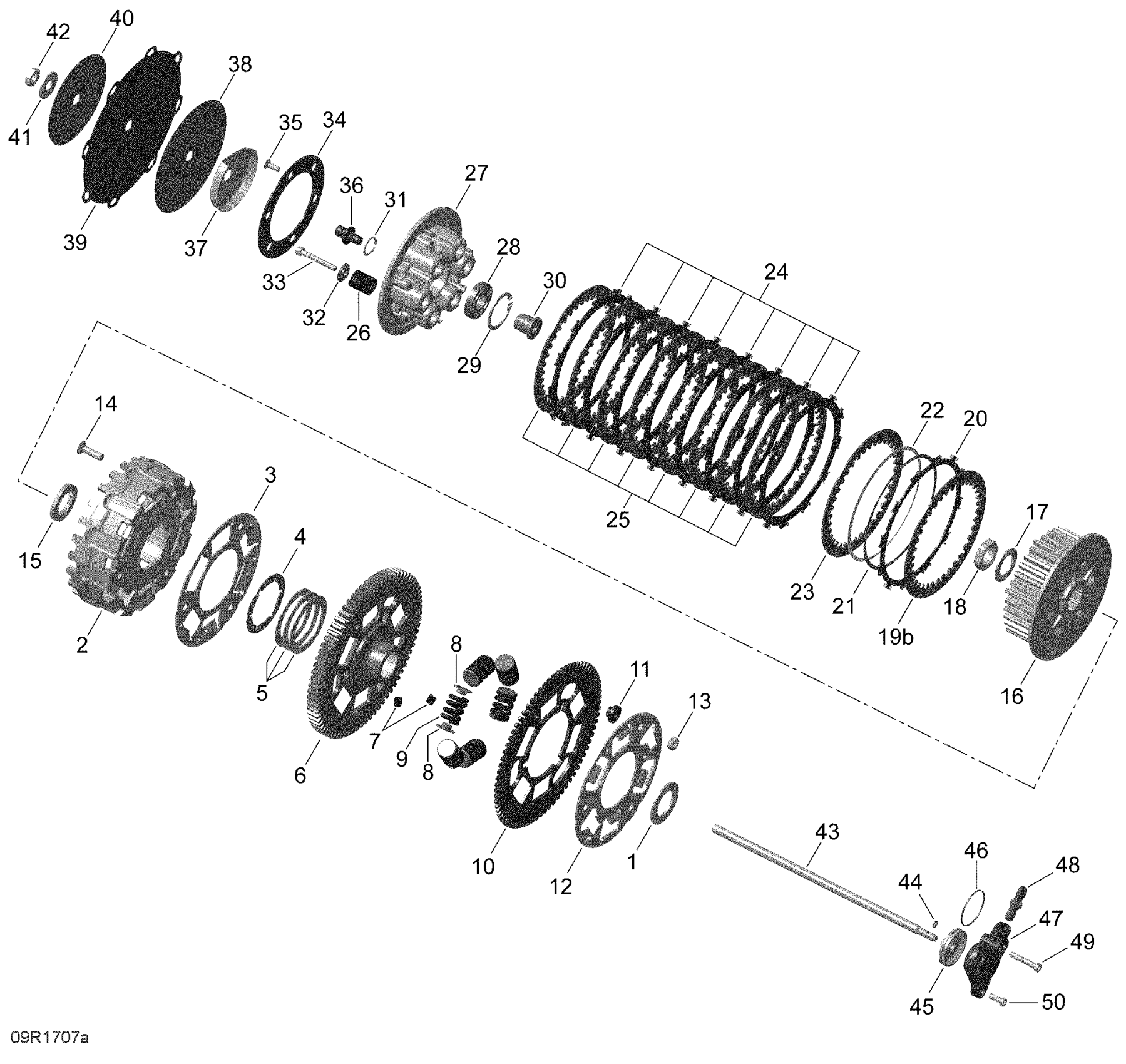

Can-Am F3 S SM6 & SE6, 2018 Clutch - SM6 Diagram

#

Description
Price

1

Thrust Washer

420627260

$10.16

2

Clutch Drum Ass'y | Includes 2 to 14

420685831

$959.99

3

Support Plate

420459105

$61.49

4

Thrust Washer

420626870

$9.80

5

Disc Spring

420239397

$18.49

6

Clutch Gear

420435408

$249.99

7

Compression Spring

420638030

$18.99

8

Spring Retainer

420247017

$15.87

9

Compression Spring

420238132

$18.99

10

Anti-Backlash Gear Teeth

420435411

$159.99

11

Distance Sleeve

420647200

$17.69

12

Support Plate

420459100

$61.49

13

Hex. Nut M8

232081414

$0.60

14

Screw M8 X 28

420440795

$3.38

15

Thrust Washer

420627225

$12.70

16

Clutch Hub

420459081

$104.99

17

Spring Washer

420245830

$10.16

18

Hex. Nut M24

420242012

$14.90

19a

Disc Kit | Includes 19a to 26

420686062

$589.99

19b

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Thrust Washer

420626970

$15.35

22

Disc Spring

420238980

$16.99

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Clutch Spring | See Item 36, Disc Kit

420238721

$11.11

27

Pressure Plate

420459090

$77.49

28

Ball Bearing

420632135

$28.49

29

Retaining Ring

420845665

$4.12

30

Pin

420459160

$35.99

31

Retaining Ring

420945660

$2.74

32

Step Washer

420627530

$10.16

33

Screw M6 X 45

420640315

$2.21

34

Oil Guiding Plate

420224010

$17.81

35

Countersunk Screw M6 X 16

420440904

$3.06

36

Adjustment Screw

420441740

$32.99

37

Oil Guiding Ring

420456220

$13.69

38

Support Disc

420210720

$19.99

39

Diaphragm

420201060

$35.99

40

Disc Plate

420210725

$16.34

41

Thrust Washer

420227185

$14.21

42

Hexagonal Nut M12 X 1

420642059

$8.07

43

Clutch Release Rod

420258160

$71.99

44

Sealing Ring

420450130

$12.18

45

Support Cover

420211090

$43.49

46

O-Ring

420230035

$7.79

47

Hydraulic Cylinder

420498012

$206.49

48

Bleeder Screw M10 X 1

420441630

$14.40

49

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

Unavailable

50

Socket Head Screw M6 X 16

420241231

$3.14
