Description

Price

10a

Fuel Tank | Includes 10a to 10a1

219800366

$599.99

10b

Fuel Pump Module

709000779

$625.49

10c

Seal Kit

219800248

$38.99

10d

Seal Kit

219800248

$38.99

10e

CARPET - Call your local BRP dealership

709000553

Unavailable

10f

Trim 1000Mm Long

219704354

$14.30

20

Grommet

709000582

$4.25

30

Lock Kit

709000819

$264.99

30a

Ignition Switch | Includes 35b to 35b2

710007316

$296.49

30b

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

30c

DESS Antenna

219800373

$60.49

30d

Fuel Cap kit with Key

219800405

$174.99

40

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

40a

Elbow Fitting 90°

293710105

$10.58

40b

Fuel Line 7.9 mm, Meter

709000264

$15.99

40c

Oetiker Clamp

293650125

$2.69

40d

Fuel Line 7.9 mm, Meter

709000265

$12.99

40e

Fuel Filter

513034047

$35.99

40f

Hose 7,94 Mm Id X 3000 Mm

219800602

$48.99

40f

Fuel Line 7.9 mm, Meter

709000264

$15.99

40g

Female Quick Fitting Ass'y

709000684

$15.49

40h

Kit Y Fitting This part replaces 709000453.

219800628

$48.99

40j

Formed Hose

709000771

$21.49

40k

Quick Connect Pipe Fitting

293710192

$12.49

40m

Oetiker Clamp

293650046

$2.33

40n

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40p

Tubing 16 Mm 1000Mm Long

219704408

$6.23

50

Filler Neck Hose

275501196

$25.99

60a

Bleed Valve

709000443

$65.64

60b

Formed Hose

709000566

$12.99

60c

Vapor Canister

709000090

$84.30

60d

Hose 3000Mm Long

219704612

$77.58

60e

Formed Hose

709000567

$28.99

60f

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

60g

Crimp Clamp, 15.3-706R

293650047

$2.64

60h

Oetiker Gear Clamp

293650025

$2.46

60j

Oetiker Clamp

293650140

$2.15

70

Oetiker Clamp

293650046

$2.33

80

Hex. Flange Screw M6 X 25

207662544

$0.53

100

Bushing

709001287

$2.89

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

120

Tork Screw M6 X 16

250000534

$1.74

140

Universal Spring Clamp

513033029

$4.96

150

Norma Clamp

293650081

$9.87

160

Formed Hose

709000570

$31.99

180

Formed Hose

709000813

$34.99

190

Oetiker Clamp

293650011

$2.46

200

Open Clamp

513033047

$4.73

240

Hose Support

709000571

$4.30

250

Ignition Switch Cap

710004182

$12.63

260

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

270

Switch Support

710001365

$20.99

700

Air Filter

709000524

$41.01

710

Spring Clamp

513033865

$4.49

730

Tuflock Phillips Plastic Screw

414745900

$1.30

740

Was 409901800 Tubing (13 mm)

219704400

$9.40

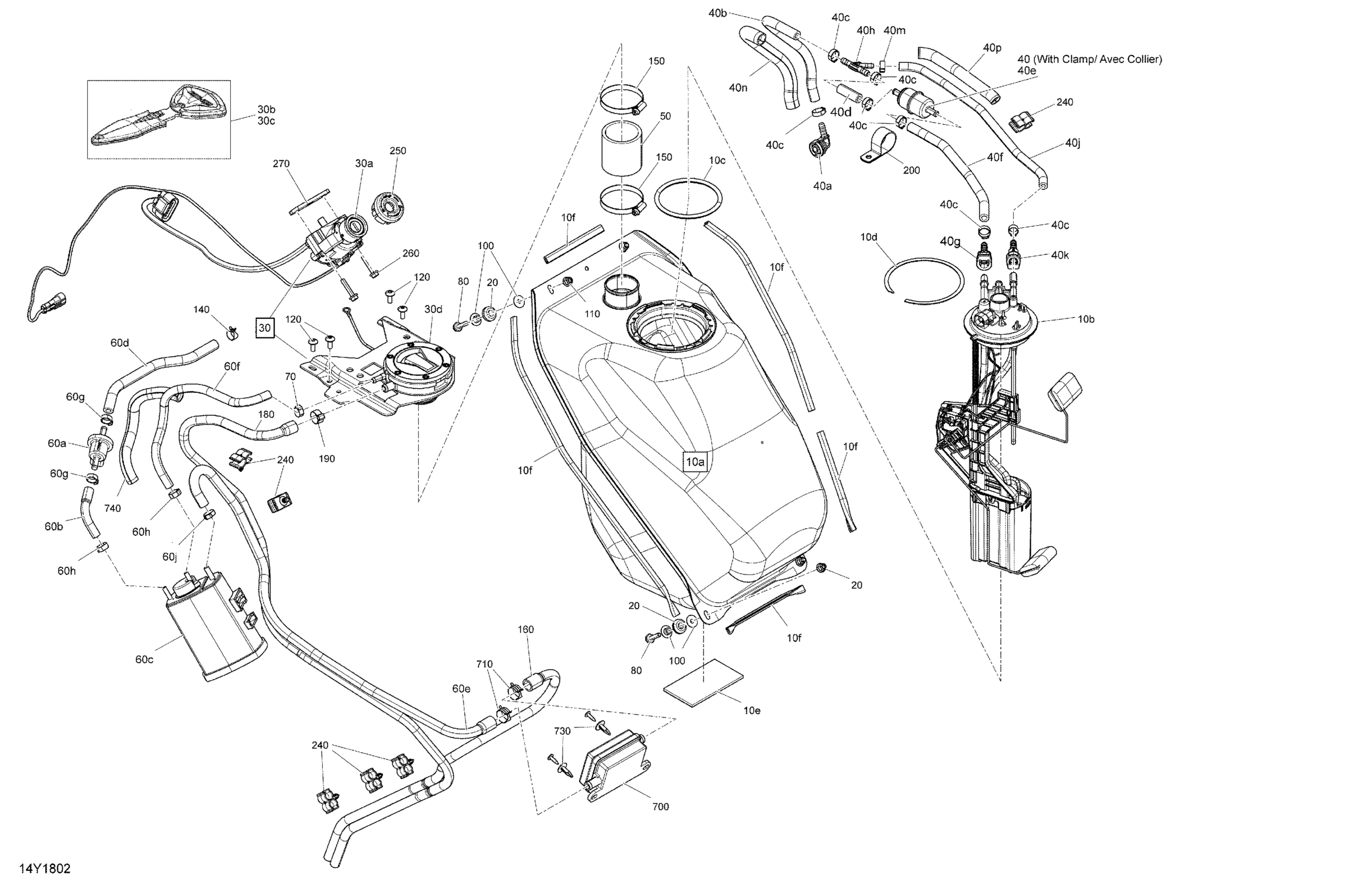

Can-Am F3 S SM6 & SE6, 2018 Fuel Diagram

Fuel Tank | Includes 10a to 10a1

Fuel Pump Module

Seal Kit

Seal Kit

CARPET - Call your local BRP dealership

Trim 1000Mm Long

Grommet

Lock Kit

Ignition Switch | Includes 35b to 35b2

Ignition Key Kit | Includes 35b1 to 35b1a

DESS Antenna

Fuel Cap kit with Key

Fuel Filter Ass'y | Includes 40f to 40f2

Elbow Fitting 90°

Fuel Line 7.9 mm, Meter

Oetiker Clamp

Fuel Line 7.9 mm, Meter

Fuel Filter

Hose 7,94 Mm Id X 3000 Mm

Fuel Line 7.9 mm, Meter

Female Quick Fitting Ass'y

Kit Y Fitting This part replaces 709000453.

Formed Hose

Quick Connect Pipe Fitting

Oetiker Clamp

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Filler Neck Hose

Bleed Valve

Formed Hose

Vapor Canister

Hose 3000Mm Long

Formed Hose

Hose 6.35Mm 5000Mm Long

Crimp Clamp, 15.3-706R

Oetiker Gear Clamp

Oetiker Clamp

Oetiker Clamp

Hex. Flange Screw M6 X 25

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Tork Screw M6 X 16

Universal Spring Clamp

Norma Clamp

Formed Hose

Formed Hose

Oetiker Clamp

Open Clamp

Hose Support

Ignition Switch Cap

Hex. Flange Screw M6 X 30, Scotch Grip

Switch Support

Air Filter

Spring Clamp

Tuflock Phillips Plastic Screw

Was 409901800 Tubing (13 mm)
