Description

Price

1

Clutch Cover Ass'y | Includes 1 to 2

420210353

$487.00

2

Center Pin

420232210

$8.29

3

Oil Sieve

420656990

$13.00

4

Oil Duct Cover

420210871

$70.00

5

Gasket

420250630

$12.00

6

Torx Flange Screw M6 X 20

420440207

$2.54

7

Torx Flange Screw M6 X 45

420440324

$0.81

8

Oil Seal

420230150

$2.94

9

Banjo Bolt

420441701

$20.00

10

Copper Washer

420250640

$0.81

11

Magnetic Drain Plug M12 X 1.5

420241780

$17.66

12

Oil Guiding Plate

420224080

$18.00

13

O-Ring

420430220

$8.03

14

Torx Flange Screw M6 X 25

420440234

$3.00

15

Oil Pump Housing

420612240

$40.00

16

Oil Pump Rotor

420956278

$68.43

17

Oil Pump Shaft

420637140

$43.00

18

Needle Pin

420232731

$1.56

19

Torx Flange Screw M6 X 30

420440647

$1.97

20

Gasket Ass`y

420450032

$26.00

21

Gasket Ass`y

420450032

$26.00

22

Torx Flange Screw M6 X 45

420440324

$0.81

23

Torx Flange Screw M6 X 20

420440207

$2.54

24

DIAPHRAGM COVER - Call your local BRP dealership

420212237

$200.00

25

Torx Flange Screw M6 X 20

420441835

$2.63

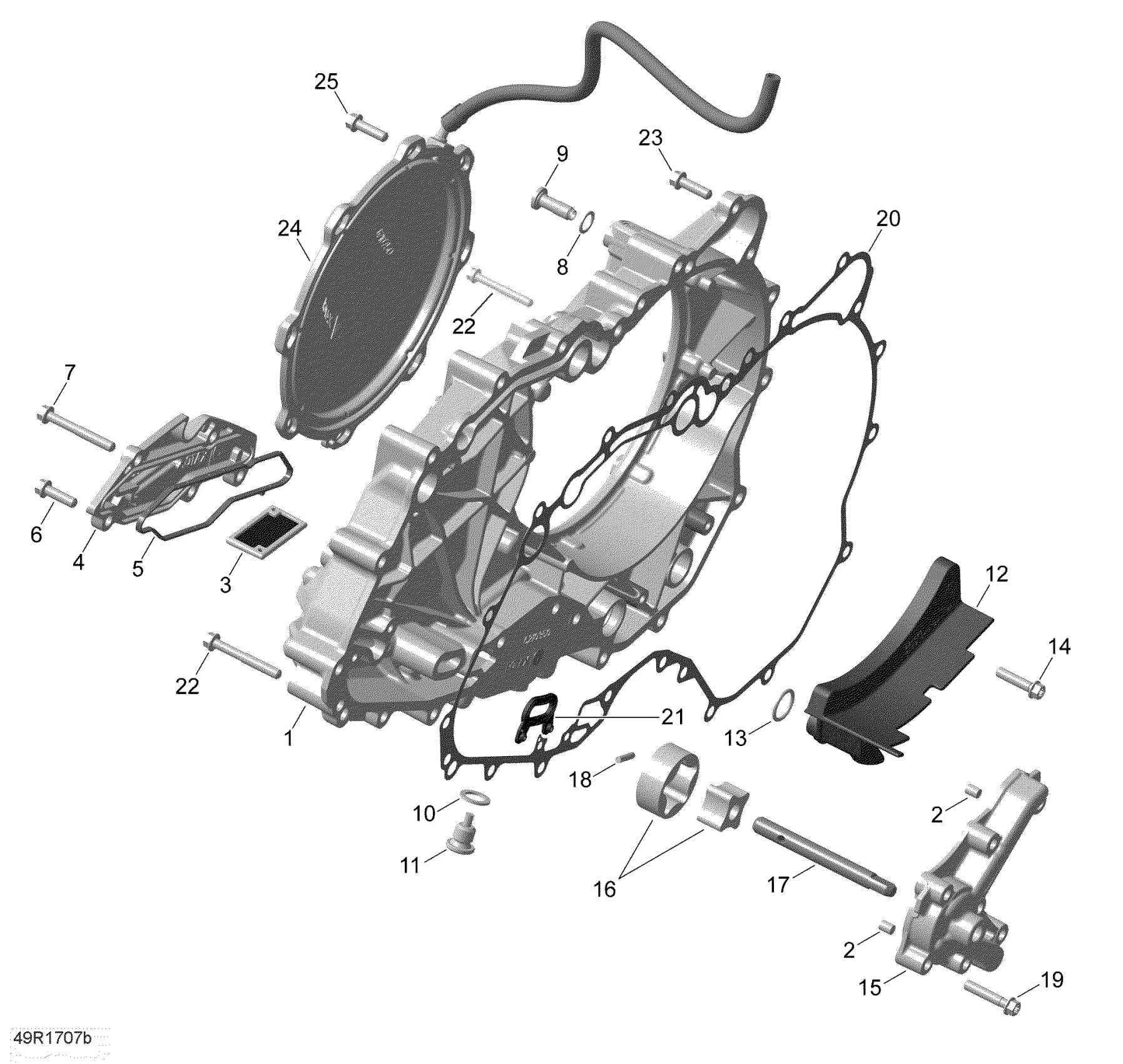

Can-Am F3 S SM6 & SE6, 2018 Clutch Cover - SM6 Diagram
