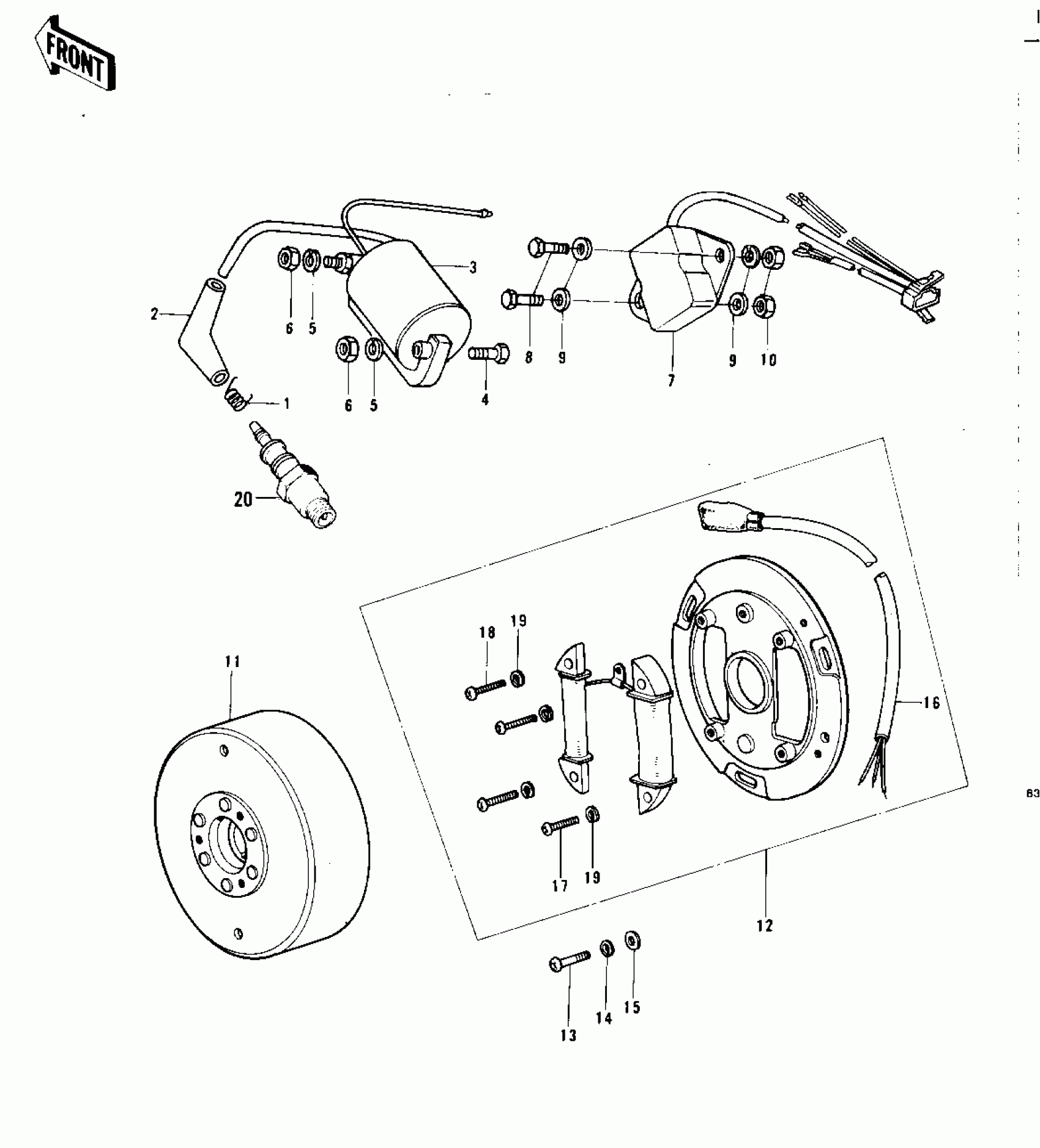

Kawasaki F12MX IGNITION ('73 F12MX 450) Diagram

#

Description
Price

1

TERMINAL,SPARK PLUG CAP

92101-001

$1.69

2

CAP-SPARK PLUG

21130-009

$22.10

3

COIL,IGNITION

21121-067

Unavailable

4

BOLT, HEX HEAD 5X22

110B0522A

Unavailable

5

WASHER-PLAIN,5MM

411B0500

Unavailable

6

NUT-HEX

311B0500

$0.42

7

IGNITION UNIT

21119-013

$597.03

7

IGNITION UNIT

21119-013

$597.03

8

BOLT-UPSET

112G0618

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

FLYWHEEL

21050-014

$218.07

12

STATOR ASST

21003-019

$210.49

13

SCREW-PAN-CROS

220B0520

$0.56

14

WASHER SPRING 5MM

461F0500

Unavailable

15

WASHER-PLAIN,5MM

411B0500

Unavailable

16

WIRING HARNESS,MAGNT

21029-026

$33.54

17

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

18

SCREW PAN HEAD 4X16

220B0416

Unavailable

19

WASHER SPRING 4MM

461F0400

Unavailable

20

SPARK PLUG B9HS1

B9HS1

Unavailable

20

SPARK PLUG B9HS1

B9HS1

Unavailable

20

SPK PLG B8HV

B8HV

Unavailable
