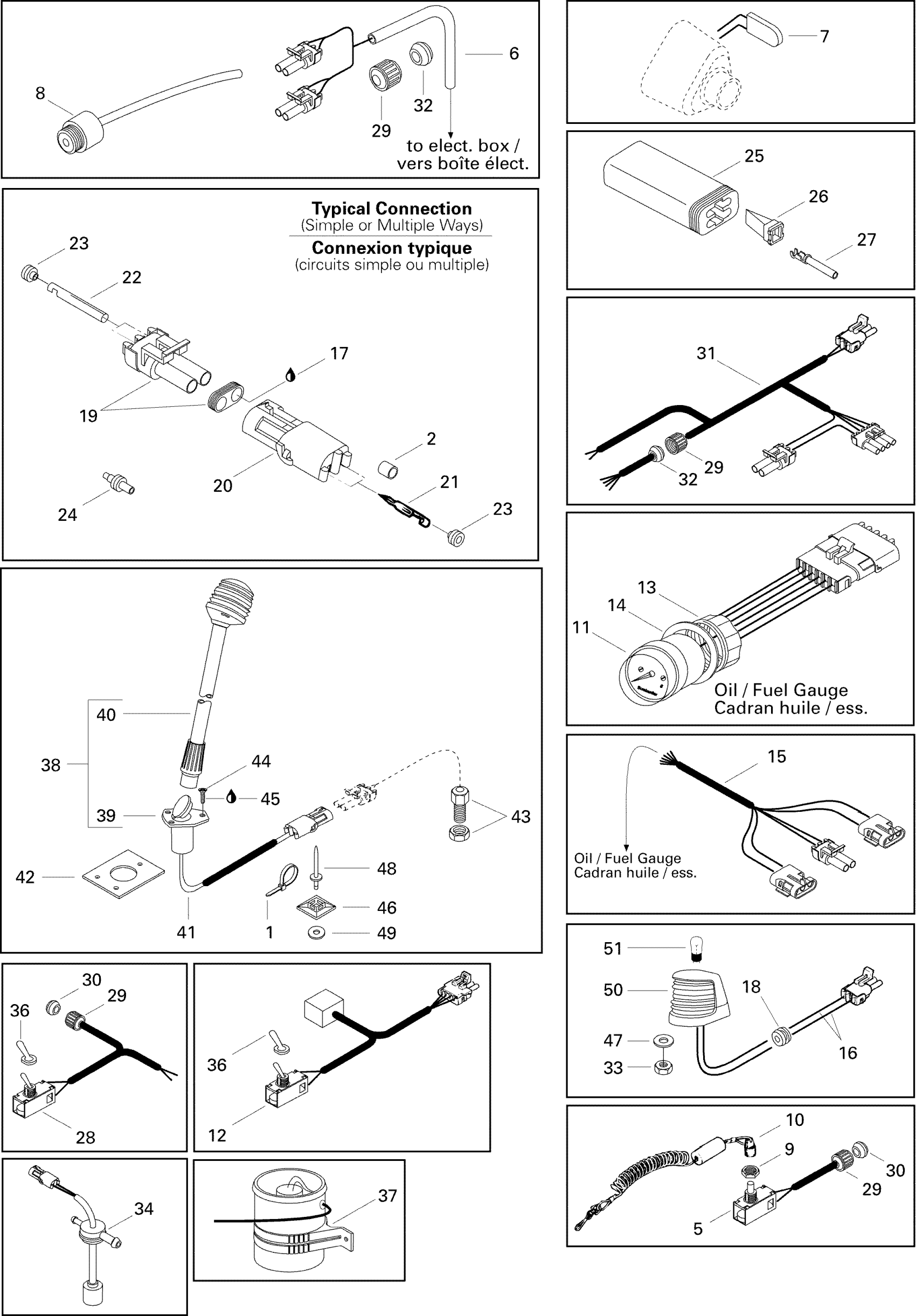

Sea-doo Explorer, 5823, 1996 Electrical Accessories Diagram

#

Description
Price

1

Tie Wrap 142 mm

293750002

$0.88

2

Insulation Sheath

278000231

$4.13

3

Harness-Accessories (Not Shown)

278000606

Unavailable

4

<> Wire (Not Shown) (Incl. It.8, 9)

278000588

Unavailable

5

Safety Switch | Includes 41 - 43.

278000552

$114.37

6

Buzzer-On/Off Switch Wiring | Includes 54 - 63.

278000470

Unavailable

7

SWITCH-IGNIT. - Call your local BRP dealership | Includes 64 - 66. This part replaces 278000501.

278000427

Unavailable

8

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

9

Safety Switch Nut

278000099

Unavailable

10

Safety Lanyard

278001431

$38.32

11

Oil / Fuel Level Gauge | Includes 35 - 38.

278000496

Unavailable

12

Light Switch Ass'y (Incl. It. 2 4)

278000605

Unavailable

13

Gauge Nut

278000085

Unavailable

14

Gasket

278000259

Unavailable

15

6 Ways Harness (Gauge) | Includes 1 - 6.

278000589

Unavailable

16

2 Ways Harness Front Lamp | (Incl. It. 56, 62)

278000634

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

18

GROMMET - Call your local BRP dealership

293720015

Unavailable

19a

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

19b

Male Connector, 2 Circuits

278000220

$11.02

19c

Male Housing, 3 Circuits

278000273

$7.59

19d

Male Housing, 4 Circuits

278000395

$14.57

19e

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

20a

Female Housing, 1 Circuit

278000161

$8.72

20b

Female Housing, 2 Circuits

278000217

$7.59

20c

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

20d

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

20e

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

21a

Male Terminal

409004300

$5.30

21b

Male Terminal | XT Models

278000222

$2.55

21c

Male Terminal

278000230

$3.48

22a

Female Terminal

409007300

$0.36

22b

Female Terminal

278000223

$2.55

23a

Wire Seal

278000218

$3.48

23b

Wire Seal

278001065

$5.85

24

Wire Seal

278000216

$2.55

25

Male Connector, 4 Circuits | CE

278000739

$14.92

26

Male Lock, 4 Circuits | CE

278000738

$2.82

27

Female Terminal

278000632

$1.69

28

Ventilation Harness | Includes 48 - 57.

278000390

Unavailable

29

Electric Wire Cap

278000100

Unavailable

30

GROMMET, 2 CIRCUIT, GRAY - Call your local BRP dealership

293720025

Unavailable

31

Light Harness | Includes 34 - 47.

278000564

Unavailable

32

Grommet, 4 Circuit, Red

570026800

Unavailable

33

Elastic Stop Nut M4

232541600

$0.92

34

Oil Level Sensor

278000478

Unavailable

35

Harness (3 Wires) | (Speed Sensor)

278000581

Unavailable

36

Cap-Fan Switch/Lights

204000011

Unavailable

37

Terminal 45°, Big Hole

278000538

Unavailable

38

Rear Lamp Ass'y (Incl. It. 2,3)

278000603

Unavailable

39

Rear Lamp Base

278000677

Unavailable

40

Rear Lamp Pole

278000678

Unavailable

41

2 Ways Harness (Rear Light) | Includes 75 - 78.

278000691

Unavailable

42

Retainer Plate

278000652

Unavailable

43

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

44

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

45

Loctite 243, 10 ml

293800060

$20.77

46

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

47

Flat Washer 4 mm, Stainless

234041600

$0.91

48

Rivet 1/8"

293150016

$0.29

49

Flat Washer M3, Stainless

234032600

$0.52

50

Front Lamp Ass'y | Includes 63 - 66.

278000604

Unavailable

51

Bulb Front Lamp

278000765

Unavailable
