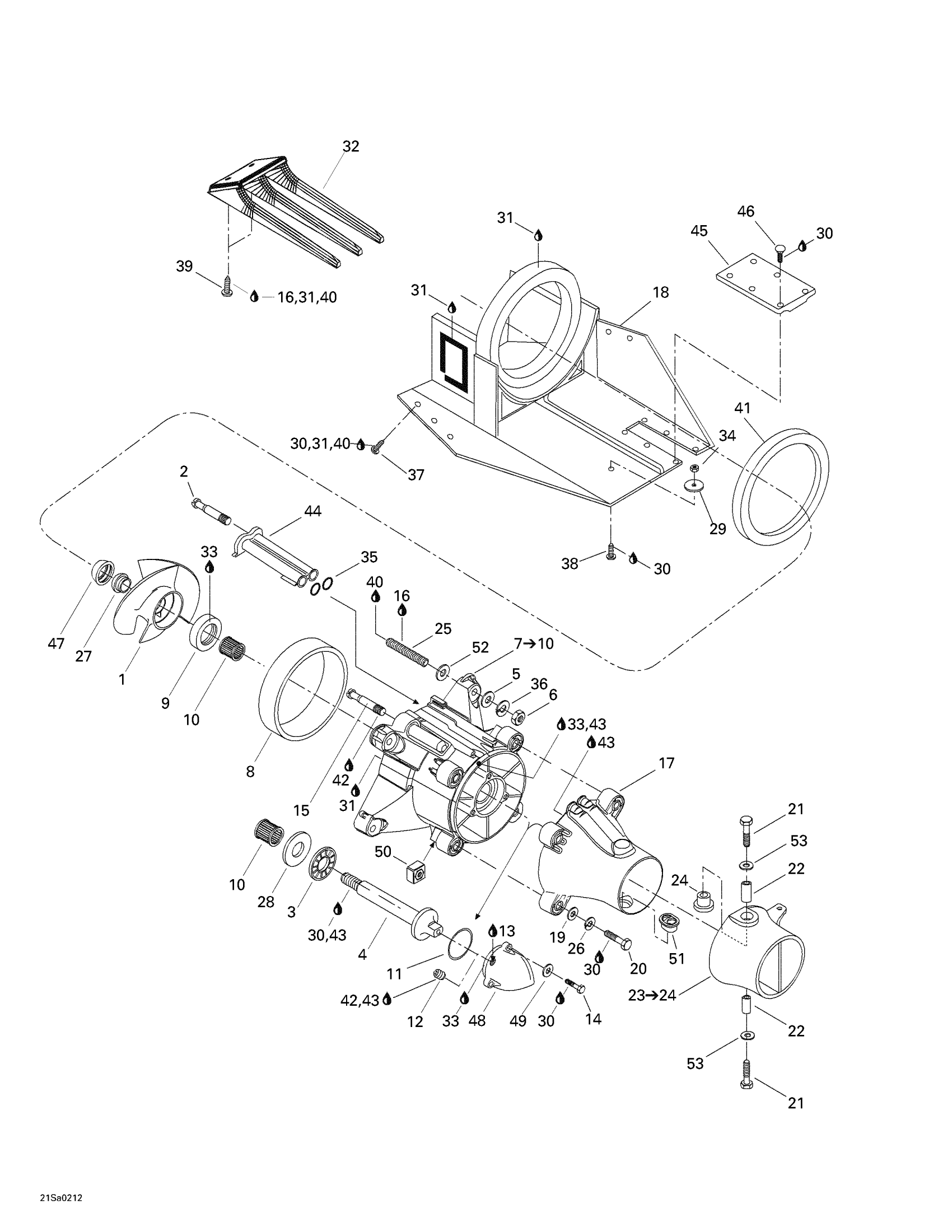

Sea-doo Explorer, 5455, 2002 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000470

$364.15

2

BAILER FITTING - Call your local BRP dealership

293700017

Unavailable

3

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Flat Washer 10 mm, Stainless

234001600

$0.91

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

$47.42

9

Oil Seal

267000094

$17.52

10

Needle Bearing

293350017

$21.42

11

O-Ring

293300011

$6.46

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

13

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

14

Hex. Screw M5 X 20

207152060

$1.22

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$20.77

17

VENTURI ASS'Y - Call your local BRP dealership

271000510

Unavailable

18

Shoe

271000407190

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$1.98

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

21

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

22

Venturi Spacer

204160153

Unavailable

23

STEERING NOZZLE ASS'Y - Call your local BRP dealership | Includes 23 - 24.

271000418

Unavailable

24

Venturi Bushing

293900001

$6.14

25

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

26

Lock Washer 8 mm, Stainless

234181601

$0.46

27

Impeller Boot

271000516

$6.86

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

Anode-Zinc

271000477

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

$50.02

32

Inlet Grate

271000537

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

O-Ring

293300013

$5.69

36

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

37

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

38

Screw 1/4-20 x 5/8

211000084

Unavailable

39

Phillips Screw M6 X 25

208562560

$1.92

40

Silicone Sealant 51388, 300 ml

296000309

$35.72

41

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

45

Ride Shoe Cap

291000446

Unavailable

46

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

47

Impeller Ring

271000517

$6.86

48

Impeller Cover

271000553

Unavailable

49

Flat Washer M5, Stainless

234051600

$0.64

50

Square Nut M8

211100033

$14.27

51

Plastic Bushing

293900010

$7.15

52

Shim 1.3 mm

204120128

Unavailable

53

Thrust Washer

211200002

Unavailable
