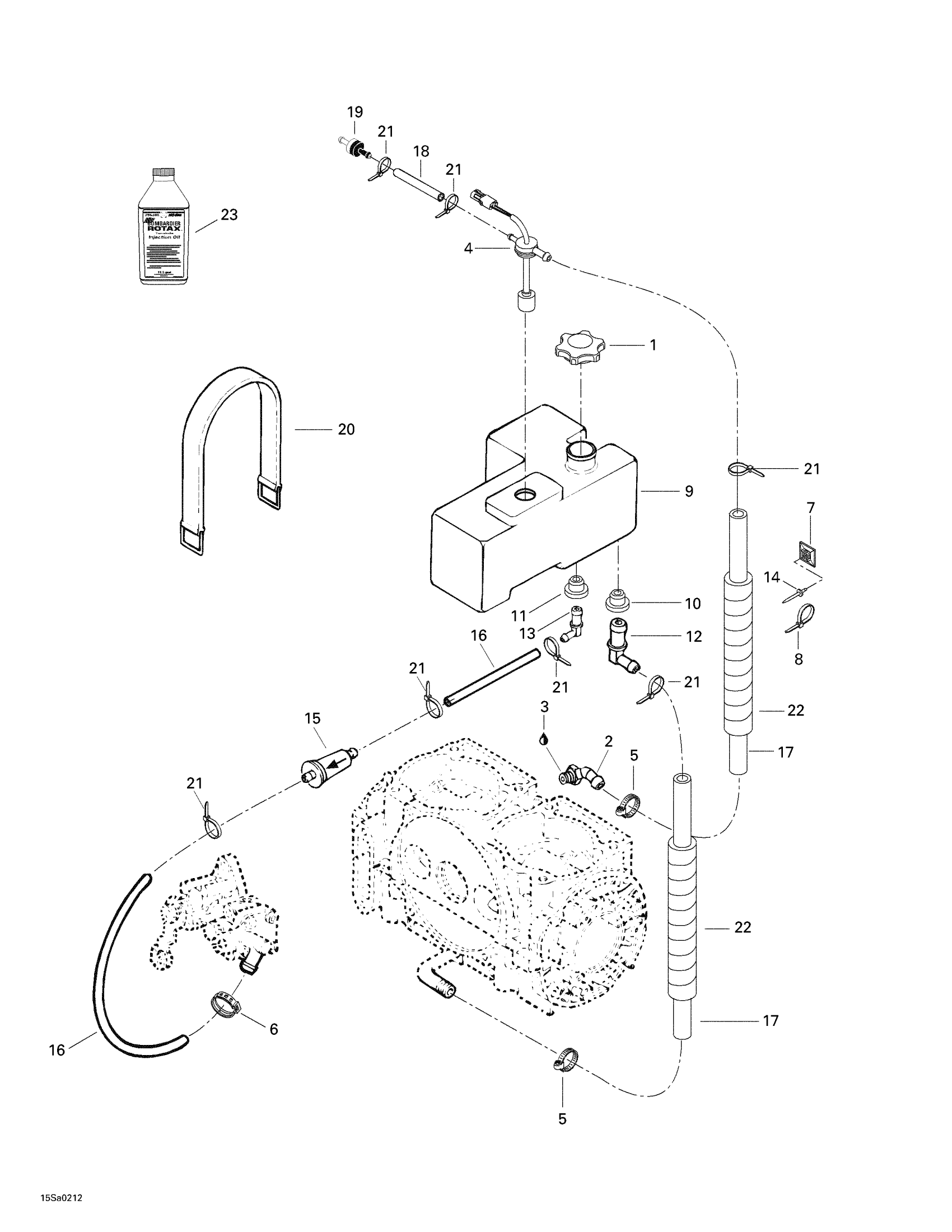

Sea-doo Explorer, 5455, 2002 Oil Injection System Diagram

#

Description
Price

1

Fuel Tank Cap

513033025

$25.99

2

Angular Tube

420922242

$15.49

3

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

4

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

5

Tridon Gear Clamp

293650170

$2.00

6

Oetiker Clamp

293650042

$3.19

7

TIE RAP MOUNT - Call your local BRP dealership

293750003

Unavailable

8

Tie Wrap 142 mm

293750002

$1.49

9

Oil Tank

275000138

Unavailable

10

Grommet | Europe

707800347

$10.99

11

Grommet

709200285

$9.89

12

Elbow Fitting

414523600

$4.99

13

Elbow Fitting 90 Deg

414650200

Unavailable

14

Rivet 1/8"

293150016

$1.49

15

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

16

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$33.99

17

Was 275500008 Hose 12 mm

219704356

$21.99

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

19

Check Valve

275500398

$11.49

20

STRAP - Call your local BRP dealership

293850022

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$1.49

22

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

23

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
